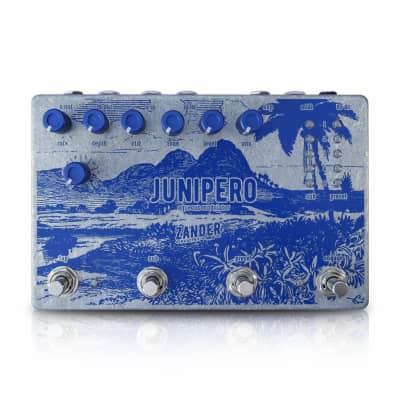

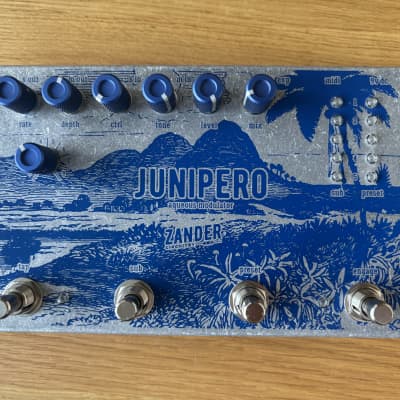

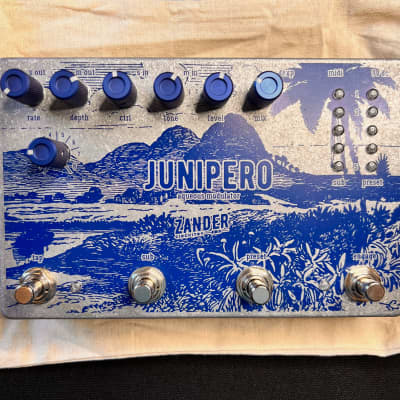

Junipero

The Junipero by Zander Circuitry is a multi-modulation pedal designed to offer eight unique takes on classic modulation effects. It is a stereo multi- modulation powerhouse with a variety of features and controls.

Key Features:
- Dimensions: (W)180mm x (L)120mm x (H)55mm
- Top-mounted in/out jacks with full stereo options
- Expression pedal input
- MIDI input
- Power requirements: 9V DC (center-negative) supply
- Current draw: 250 mA

Functionality:
- The Junipero offers 8 unique modulation effects including vibrato, chorus, flanger, phaser, tremolo, ring modulator, multi-voice chorus, and harmonic tremolo.
- Each effect is tempo-controllable with five subdivisions to choose from (quarter, eighth, dotted eighth, triplet, and sixteenth notes).
- It features an intuitive, easy-to-use interface with five onboard presets for instant changes in direction and is MIDI-compatible with access to up to 128 presets via a MIDI controller.
- The CTRL knob alters a different secondary parameter depending on the effect being used.

Controls:
- Rate: Modulation speed
- Depth: Modulation intensity
- CTRL: Secondary parameter
- Tone: EQ for the wet signal
- Level: Output volume
- Mix: Blend control (from 100% wet to 100% dry)
- 1-8: Effect selector
- Four footswitches: Engage, Sub, Preset, Tap

Additional Features:
- Buffered and true bypass (assignable per preset)
- Expression pedal input for controlling various parameters
- Fully stereo with the ability to split the signal in various ways

The Junipero is designed to cater to a wide range of modulation needs, from subtle effects to experimental tones, and offers extensive control and versatility for musicians and sound enthusiasts.
