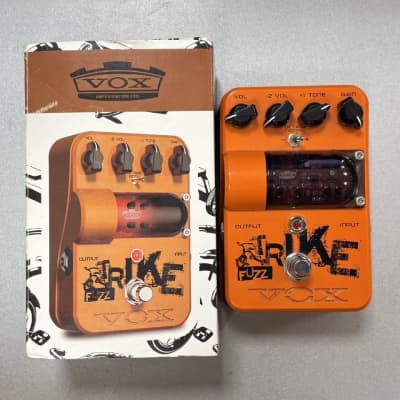

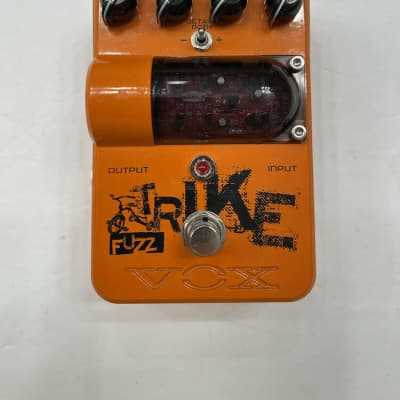

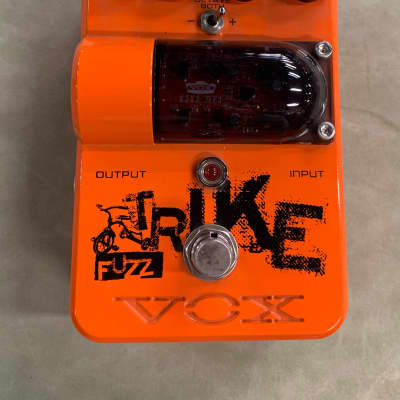

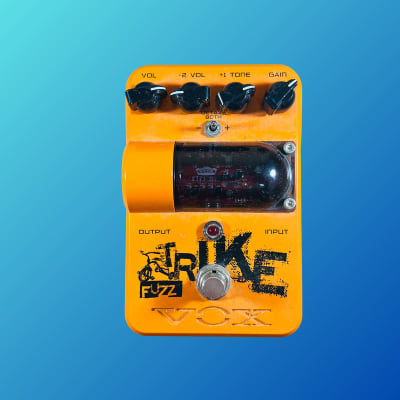

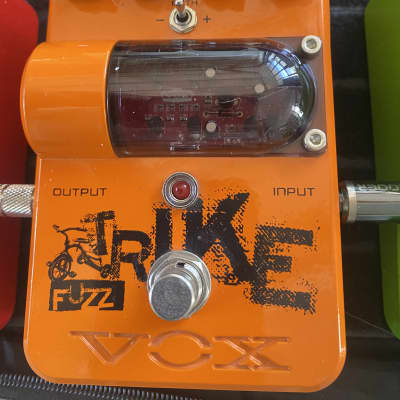

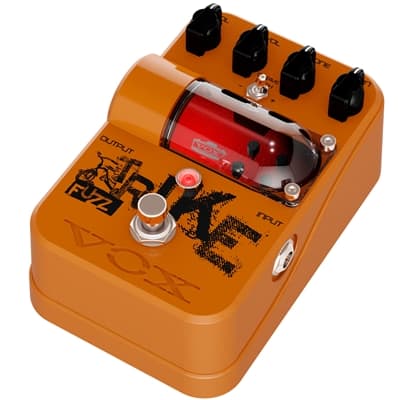

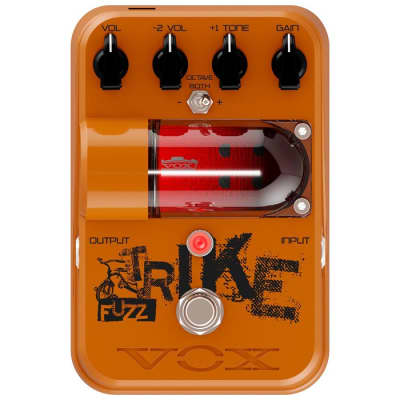

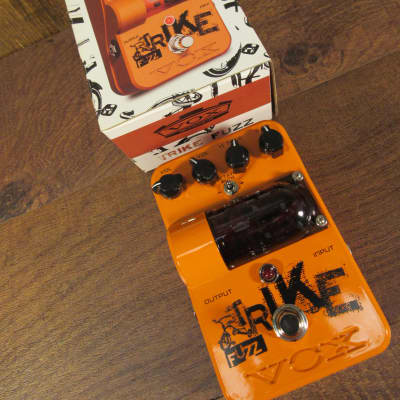

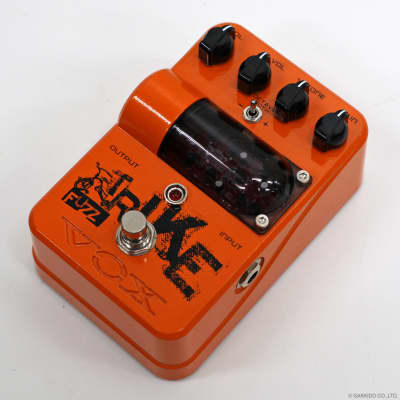

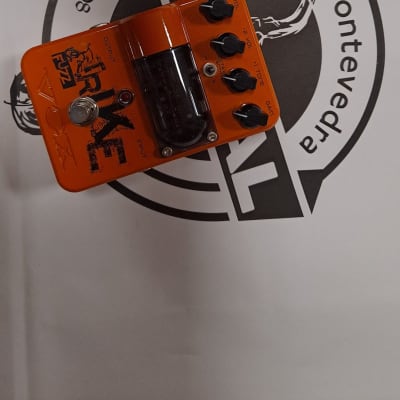

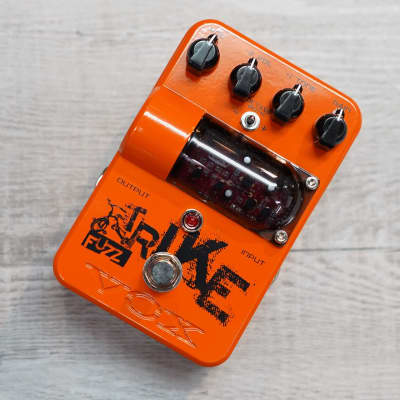

Trike Fuzz

The Trike Fuzz by Vox is an octave fuzz pedal designed to deliver vintage character and unique tonal signatures. It offers a range of one octave up and two octaves down, with three types of octave settings: +1 or, -1 and -2, or all upward and downward octaves to achieve thick vintage fuzz sounds. The pedal features a tone control for +1 octave and a volume control for -2 octave. The Trike Fuzz operates the downward octave circuits in series and combines them in parallel with the upward octave at the end, allowing for a diverse range of sounds not typically obtained with existing octave fuzz units.

Specifications:
- Input impedance: 680kΩ
- Output impedance: 2.2k Ω
- Connections: INPUT jack (guitar input), OUTPUT jack (line output)
- Power: AA battery x 6 / AC adapter / DC 9V (Option)
- Consumption current: 14mA
- Battery Life: Approximately 280 hours
- Dimensions: (W x D x H): 87 x 132 x 63 mm / 3.43 x 5.20 x 2.48 inches
- Weight: 420 g / 14.81 oz (not including battery)
- Accessories: AA alkaline battery x 6 (for verifying operation)
- Options: AC Adapter

The Trike Fuzz features discrete circuitry, a true bypass design, and a tough die-cast body for durability. It uses specially selected vintage-vibed diodes and meticulously designed discreet circuitry for optimal tone. The pedal is designed without op-amp IC chips, with each part carefully selected for optimal tone and response. The true-bypass switching design ensures a pure signal when the effect is off, and the rugged aluminum die-cast body is built to withstand the rigors of the road.
