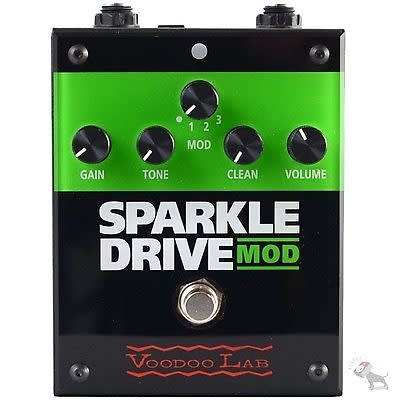

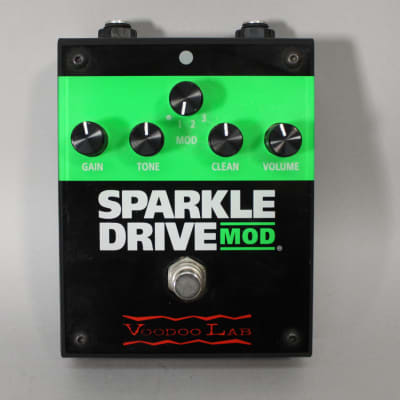

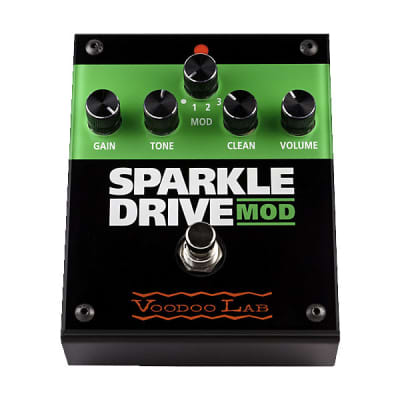

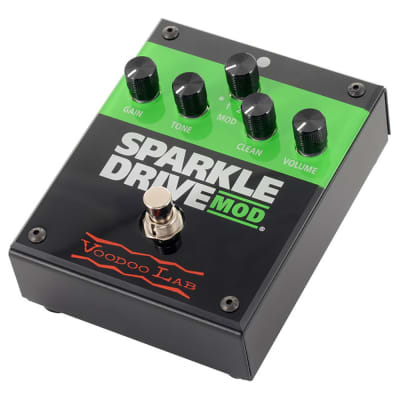

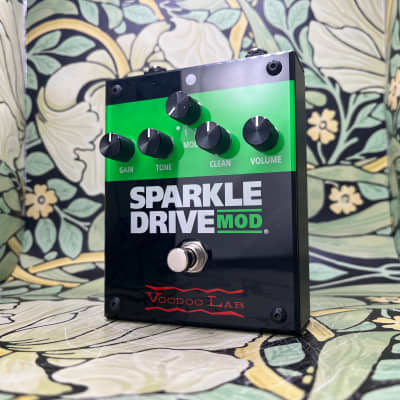

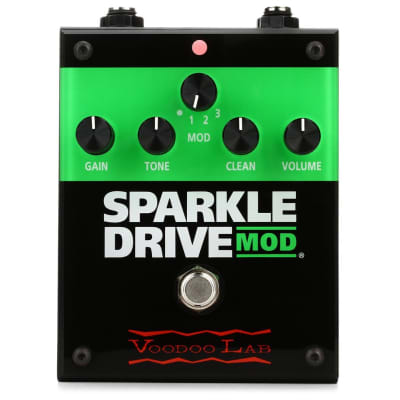

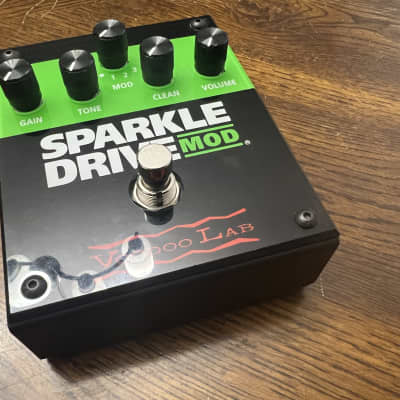

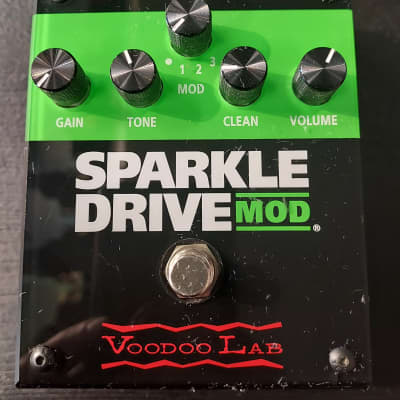

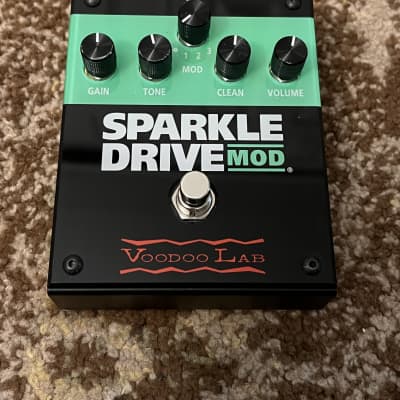

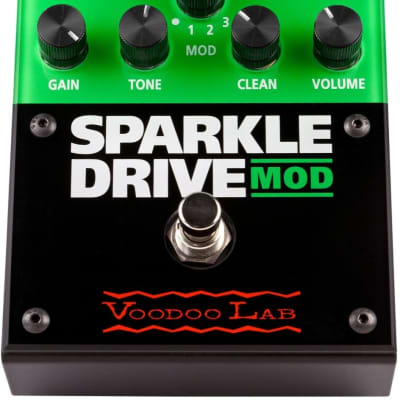

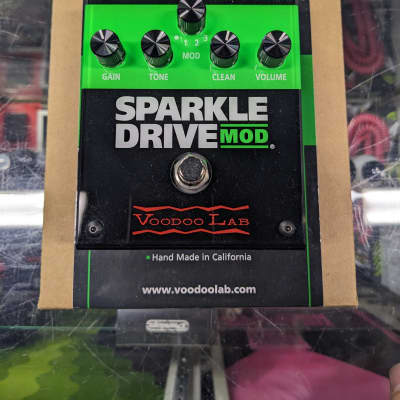

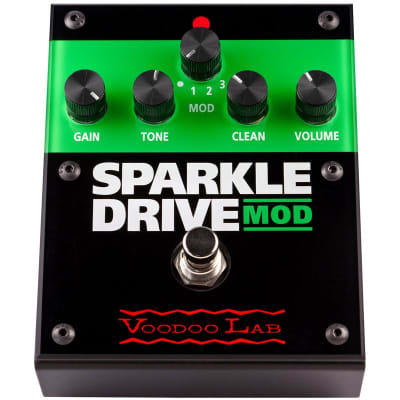

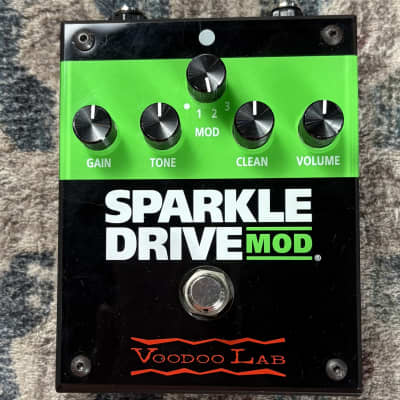

Sparkle Drive MOD

The Sparkle Drive MOD by Voodoo Lab is an overdrive pedal designed to provide a range of overdriven tones and clean boosts. It features a unique "clean" control that blends a boosted direct signal, restoring the attack and feel lost in highly compressed overdrive circuits. The pedal allows for the creation of multiple layered amp sounds, with one clean and one overdriven.

Key Specifications:
- Dimensions: 4.75” x 3.75” x 2” (121 x 95 x 51mm)
- Weight: 1.15 lbs. (520g)
- Power Requirements: 9V DC, 35mA
- Power Input Type: 5.5mm x 2.1mm barrel connector, center negative polarity

Features:
- Four unique overdrive/distortion circuits: Stock, Lead, Rhythm & High Gain
- True bypass switching via high-reliability gold-contact relay
- Hand-built in the U.S.A.
- Plexi Top Panel
- 100% clean boost circuit with tons of output

Controls:
- Gain: Sets the gain level for the overdrive sound only
- Tone: Adjusts the brightness of the overdrive sound
- Clean: Blends the boosted clean signal with the overdrive
- Volume: Sets the output level

The Sparkle Drive MOD also includes a MOD selector to choose between Vintage mode, Mod 1 (LEAD circuit), Mod 2 (RHYTHM tones), and Mod 3 (HIGH GAIN treatment), providing a range of tonal options for different playing styles and musical genres.

For warranty service outside North America, users are advised to contact their region's authorized Voodoo Lab distributor.
