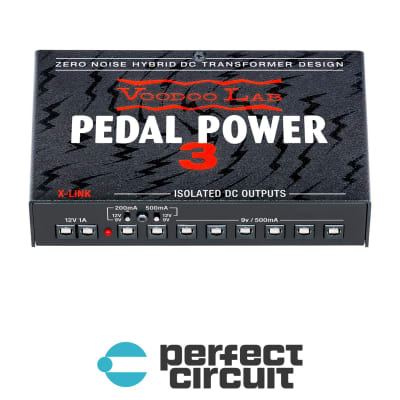

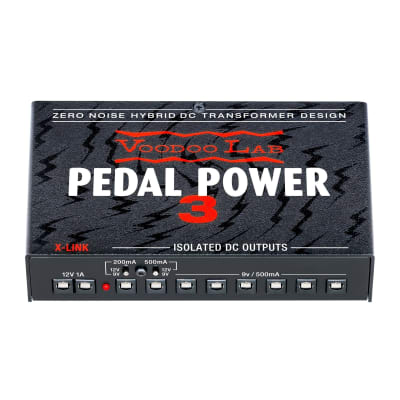

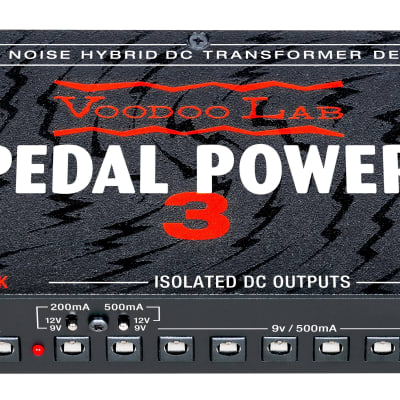

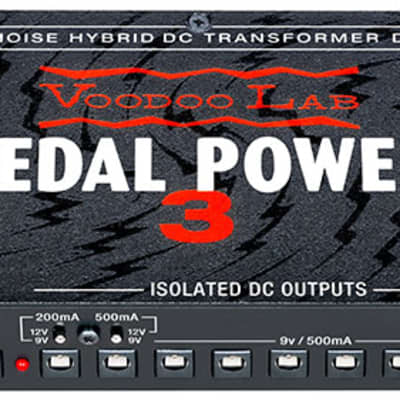

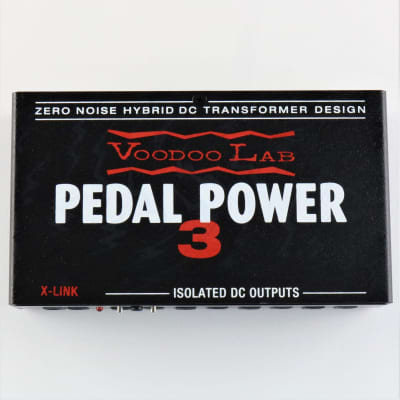

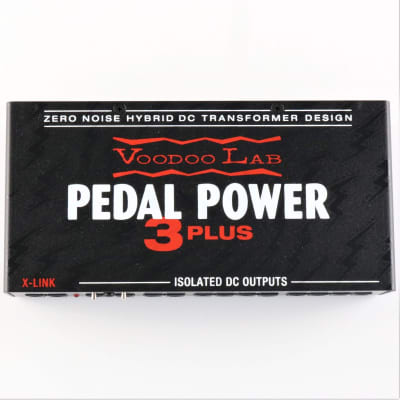

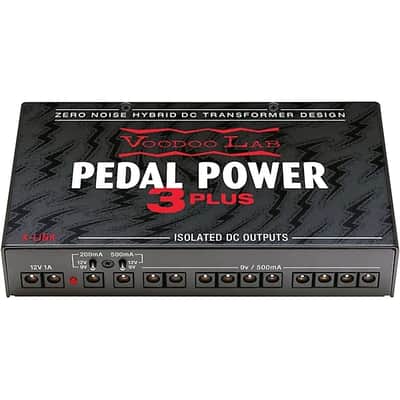

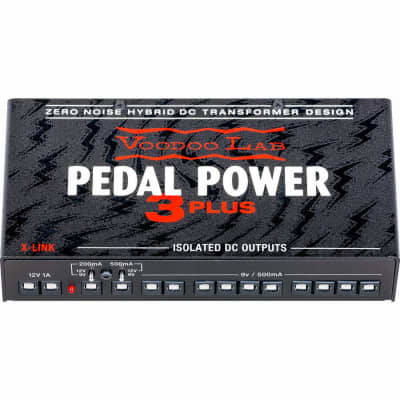

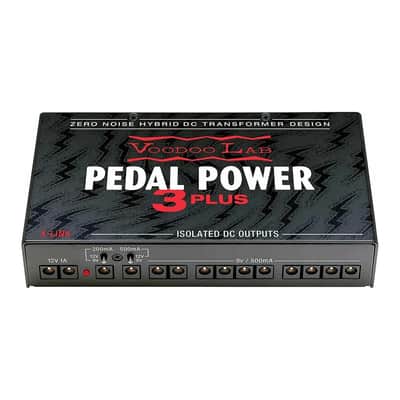

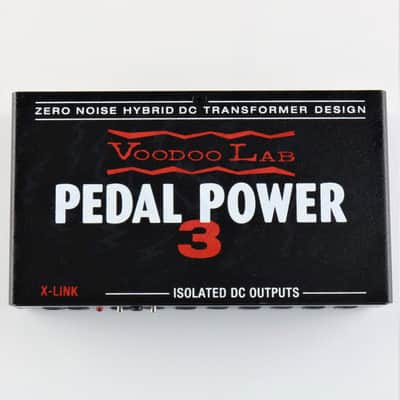

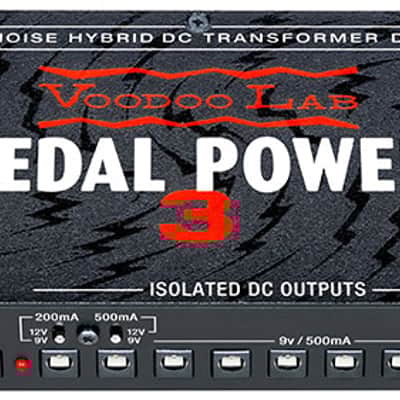

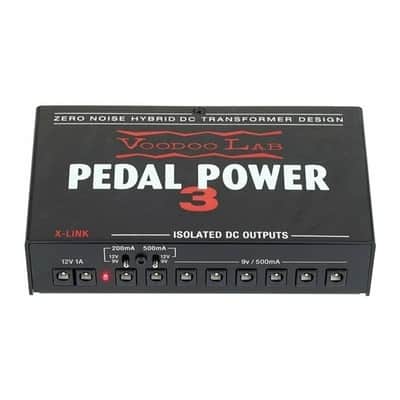

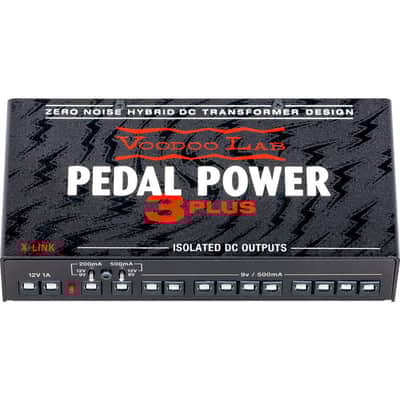

Pedal Power 3

The Pedal Power 3 by Voodoo Lab is a high-quality power supply designed for guitar pedals. Here are the technical specifications and features:

Pedal Power 3:
- Equipped with 8 isolated 500mA DC outputs
- 6 x 9V outputs, 2 x switchable 9V/12V outputs
- X-LINK expansion ports for connecting Pedal Power X4 and X8 units to add up to 16 isolated outputs
- Powers standard battery-operated and high current DSP effects
- Operates at input voltage 100V-240VAC for international touring
- Audiophile-quality power ensures pedals sound and perform their best
- Zero noise hybrid DC transformer design with linear regulation
- Delivers clean, consistent power even with poor AC line conditions
- Ultra-lightweight, low-profile aluminum construction

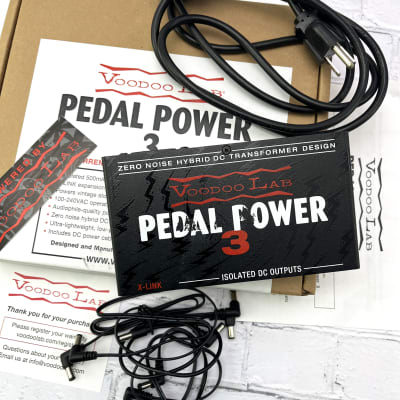

- Includes standard polarity DC cable 8-pack (part# PPPK-8)
- Dimensions: 6” x 3.5” x 1.5” (152 x 89 x 38 mm)
- Weight: 0.9 lbs. (400g)
- 5-year warranty in North America

Inputs:
- IEC Connector
- 100-240VAC Operation

Outputs:
- 5.5 x 2.1mm barrel connectors – center negative
- Short circuit protected

Special Features:
- X-LINK expansion ports (2) for use with Pedal Power X4 or X8

The Pedal Power 3 is designed to provide clean, reliable power to a variety of pedals, including modern high current DSP effects and vintage stompboxes, while eliminating ground hum and unwanted interaction between pedals. Its lightweight and expandable design make it suitable for both small and large pedalboards, and its international voltage operation adds convenience for touring musicians.
