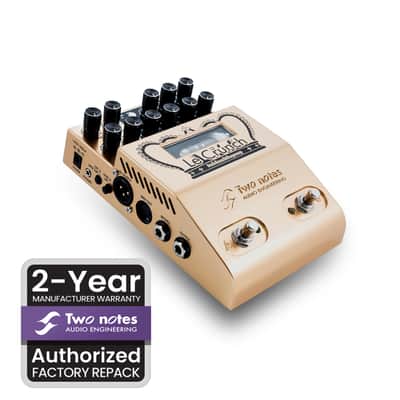

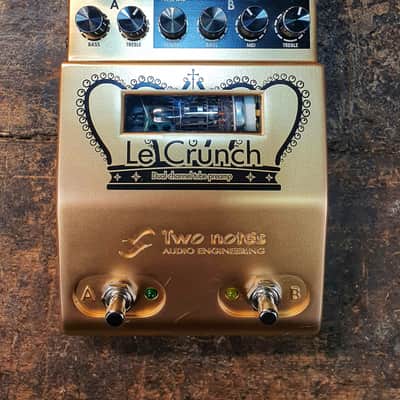

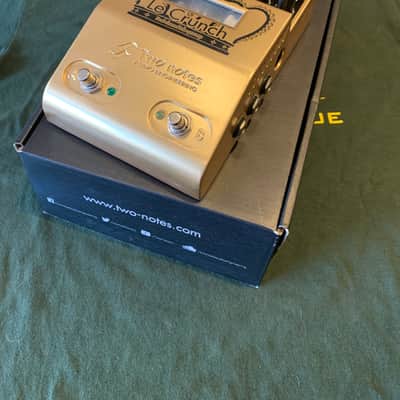

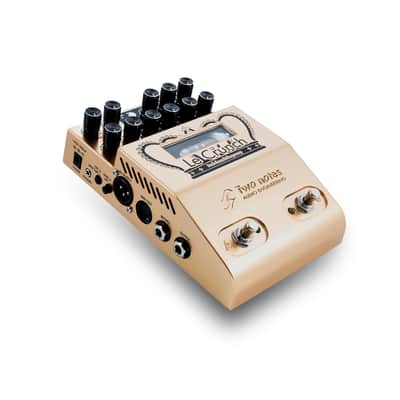

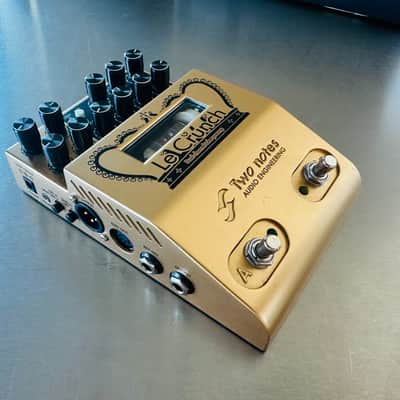

Le Crunch Pedal

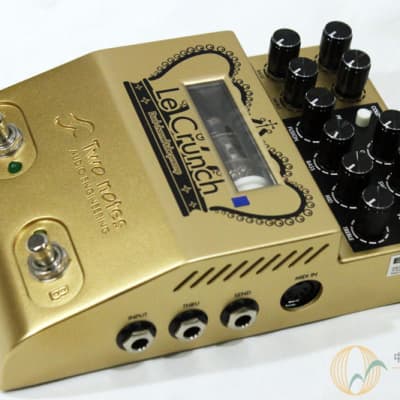

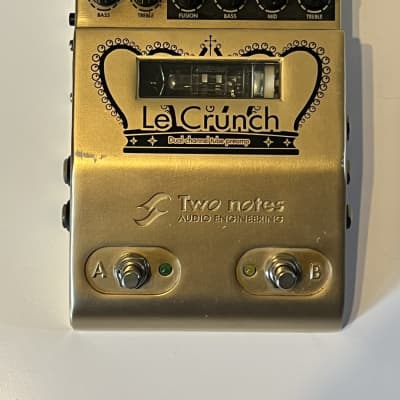

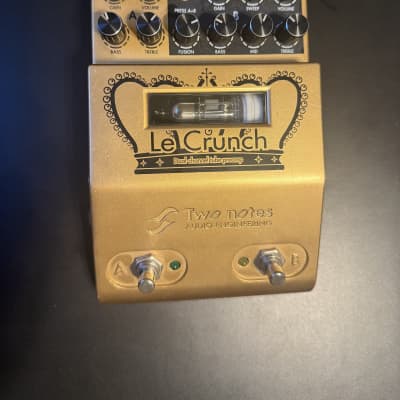

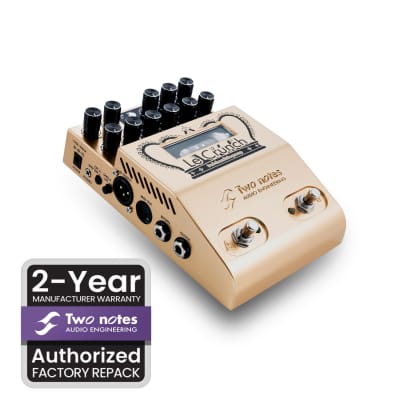

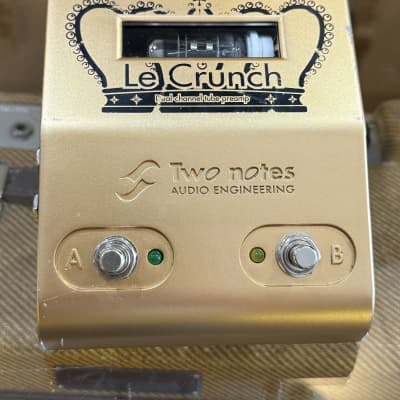

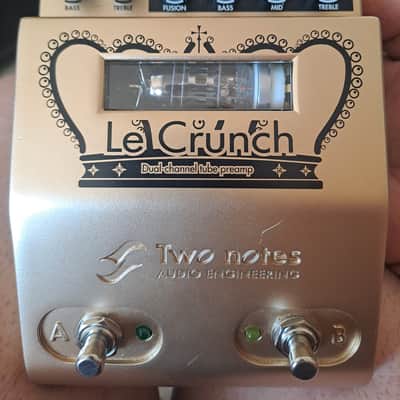

The Two Notes Le Crunch Pedal is a 2-channel British tones tube preamp pedal designed to replicate the classic British stack of amps that have defined Rock’n’Roll since the late 60’s. The pedal features two independent preamps that are footswitchable and can be blended together. The A channel offers a clean plexi sound, while the B channel provides high-gain tones suitable for rock and metal.

The Le Crunch Pedal is a True High Voltage Design running internally at 200 volts to preserve the interaction between the guitar and the player while working seamlessly with other effect pedals. Each channel has its own voicing and EQ section, with Channel A featuring Bass and Treble controls, and Channel B offering Bass, Mid with Mid Sweep, and Treble controls.

The exclusive Fusion modes open new tonal possibilities, and the pedal can be connected via MIDI to integrate seamlessly into any pedalboard switching system. The pedal also features an analog speaker simulation specifically voiced for the Le Preamp Model, affecting the DI output and the Headphones output.

Technical Specifications:
- Tube: Ruby 12AX7AC5 HG
- Tone control:
- A channel: Passive Bass/Treble tonestack
- B channel: Passive Bass/Treble tonestack, Active Mid/Sweep control
- Input/Output:
- Input: Jack 6.35 mm unbalanced (TS), Impedance: 1 MOhms
- Return: Jack 6.35mm unbalanced (TS), Max input level: 17 dBu, Impedance: 2.2 MOhms
- Output: Jack 6.35 mm unbalanced (TS), Max output level: 11 dBu, Impedance: 300 Ohms
- Thru: Jack 6.35 mm unbalanced (TS)
- Send: Jack 6.35 mm unbalanced (TS), Max output level: 11 dBu, Impedance: 300 Ohms
- DI Output: XLR, balanced, Impedance: 600 Ohms, Max output level: 10 dBu
- Phones: Jack 3.5 mm stereo (TRS)
- Power:
- Mains power adaptor DC Jack 2.1mm, negative center
- Input voltage: 12V DC
- Power consumption: approx. 6W
- Current draw: 500mA
- Dimensions & Weight:
- Width x depth x height: 124 x 189 x 50 (mm) – 4.88 x 7.44 x 1.97 (in)
- Weight: 750g – 1.65 lb
