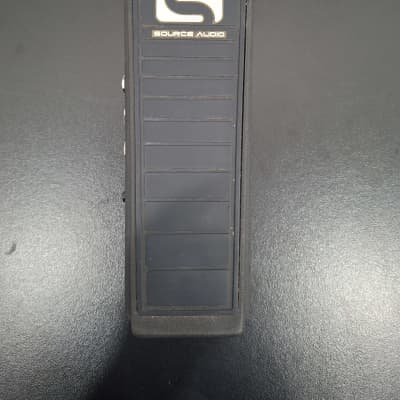

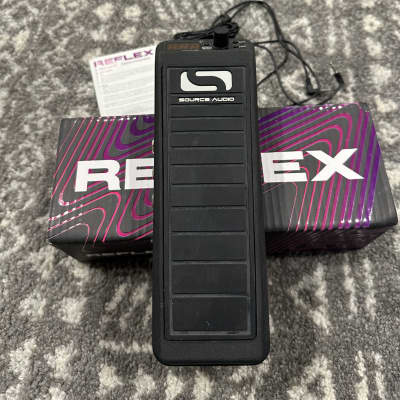

Reflex Universal Expression Controller

The Reflex Universal Expression Controller by Source Audio is a versatile and advanced expression controller with the following technical specifications and features:

- Seven Expression Outputs: The Reflex features three analog expression outputs, three digital (MIDI) expression outputs, and one sensor output, all of which can be used simultaneously.

- Highly Configurable: Each expression output can be independently configured to be compatible with different expression standards. The taper, polarity, range, LFO, and other parameters can be set up differently for each output.

- USB-MIDI Interface: The Reflex is a class-compliant USB MIDI device that can be used in digital audio workstation (DAW) software or to control software synthesizers and virtual instruments.

- MIDI Recallable Presets: The Reflex can store up to 128 different MIDI- recallable presets, allowing users to save different settings for different songs or sets and easily recall them on stage with a MIDI controller.

- LFO Wave Shapes: The unit can send five different LFO wave shapes with expression control of the depth, modulation speed, or beat division.

- Connectivity: The Reflex connects to any effects pedal, synthesizer, or rack system with an expression or MIDI jack and can also control DAW software via USB.

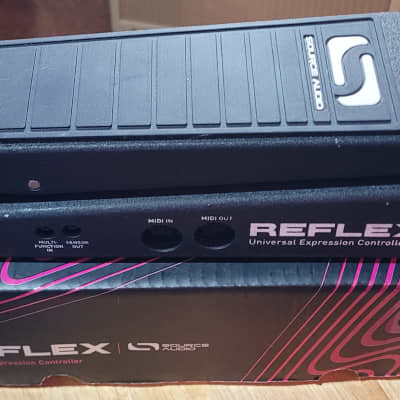

- Outputs: It includes three ¼” analog expression outs, MIDI 5-pin DIN in and out connectors, a USB port, and Source Audio’s proprietary 1/8” Sensor Out.

- User Presets: Save up to 128 expression configurations, recallable via the onboard controls or external MIDI program change messages.

- Dimensions: 10.5 x 3.8 x 2.8" / 26.7 x 9.5 x 7.0 cm.
