Cuda

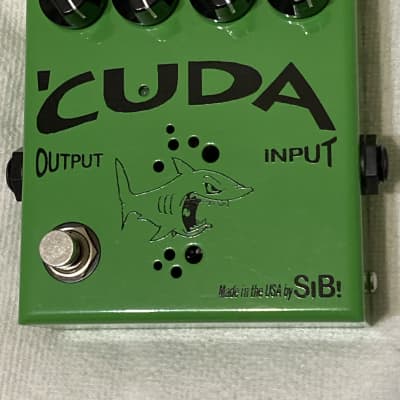

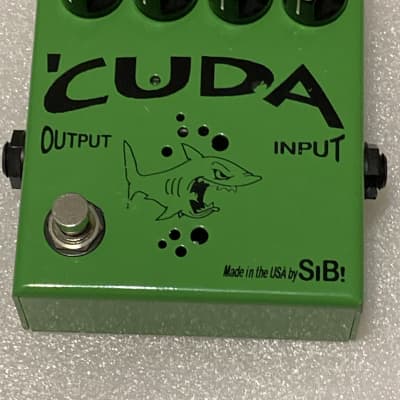

The SIB Electronics Cuda is a tube-based overdrive pedal designed to deliver a classic, vintage tube tone. It features a 12AX7 vacuum tube and operates on a high voltage supply powered by 9VDC, with the power supply included. The pedal offers a wide range of passive tone controls, including independent bass and treble knobs, allowing users to dial in vintage tones with light to medium drive or crank it for a warm distortion. The Cuda is built with a Class A circuit designed to deliver overdrive without interfering with the natural tone of the guitar and amp. The pedal is housed in an abuse-resistant steel case and is hand-built in the USA.

Technical Specifications:
- Tube: 12AX7
- Power Supply: 9VDC (Power Supply Included)
- Current Draw: 275mA
- DC Jack Size: 5.5mm X 2.1mm
- Input Impedance: Over 1Meg
- Output Impedance: Less than 10K
- Bypass Switch: 3DPT Footswitch for True Bypass Operation
- Dimensions: Not available
- Weight: Not available

Use Cases:
The Cuda is suitable for guitarists seeking to add classic tube overdrive and distortion to their sound. It is ideal for achieving vintage tones reminiscent of 1970's Marshall Super Lead amps while offering a wide range of tone-shaping capabilities.

Functionality:
The pedal's high voltage supply and 12AX7 tube provide a rich, warm tone characteristic of true tube overdrive. The independent bass and treble controls allow for precise tone adjustments, while the Class A circuit ensures that the pedal enhances the user's guitar and amp's natural tone without interference.
