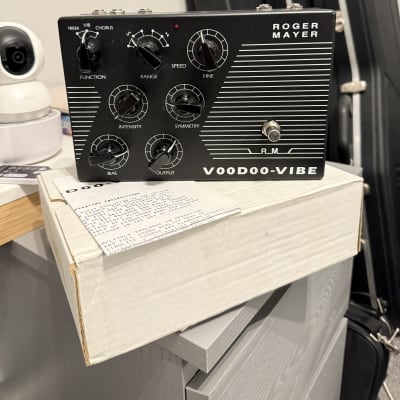

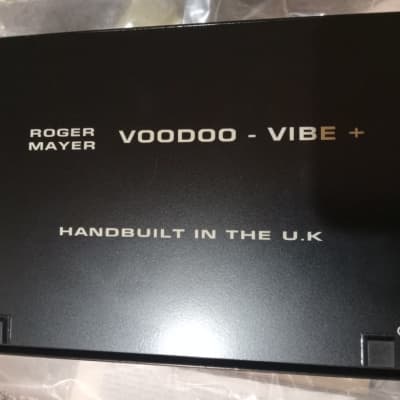

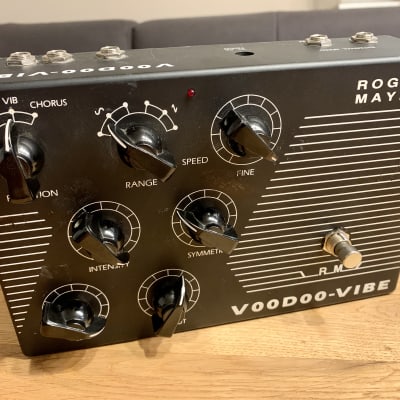

Voodoo Vibe+

The Voodoo Vibe+ by Roger Mayer is a versatile analog pedal designed to faithfully reproduce retro sounds while incorporating modern features. It is the latest evolution of the Univibe, used by iconic musicians such as Jimi Hendrix and Robin Trower. The pedal offers Chorus, Vibrato, and Tremolo functions with expanded sound parameter control.

Technical Specifications:
- Power Requirements: 9V alkaline battery or AC adapter with a 9V rating and a current rating of 50mA or more. A regulated output is recommended.
- Input Impedance: 1M ohms
- Output Load Impedance: 10K ohms or more
- Signal to Noise Ratio: 102dB
- Dimensions: 220mm (W) x 75mm (H) x 150mm (D)
- Weight: 1580g

Features:
- Completely analog in operation, providing a transparent and full sound quality without digital zipper noise or graininess
- Class A discrete circuitry for ultra-high audio quality and low noise
- Extensive internal power supply filtering for low noise performance with basic commercial mains adapters or battery eliminators
- External power adapter/supply access through a standard DC power jack with internal onboard filtering and diode protection

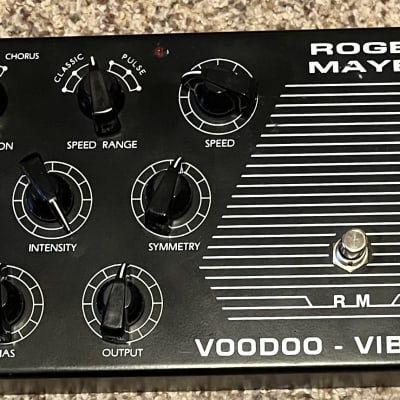

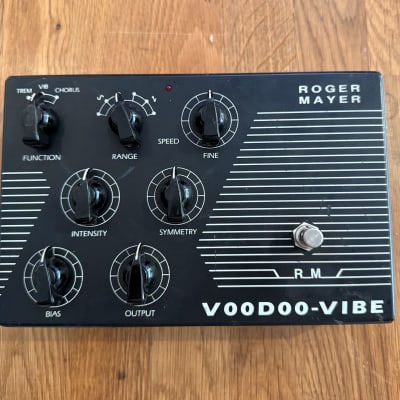

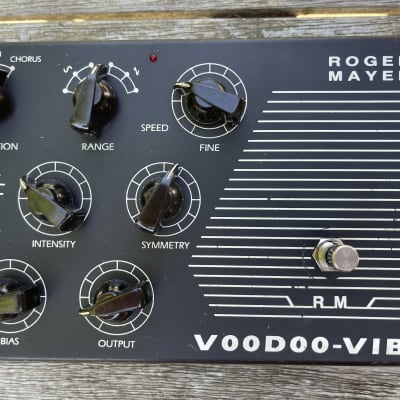

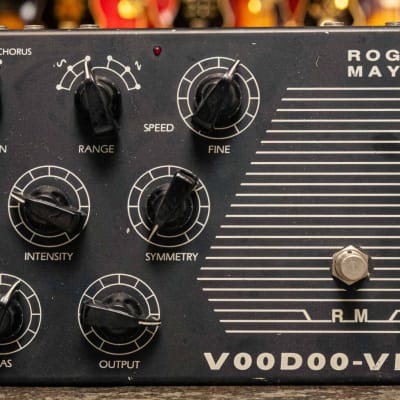

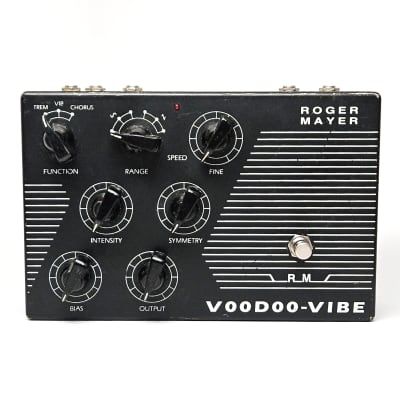

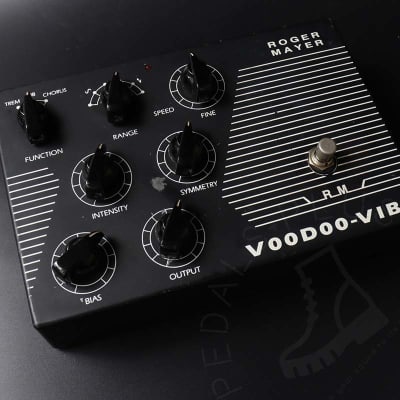

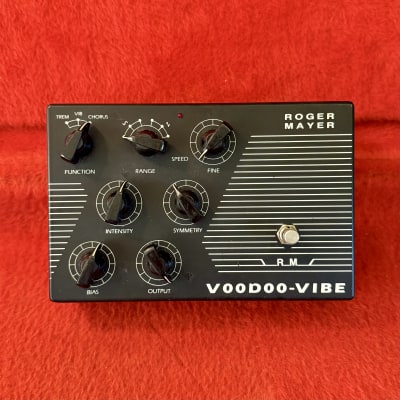

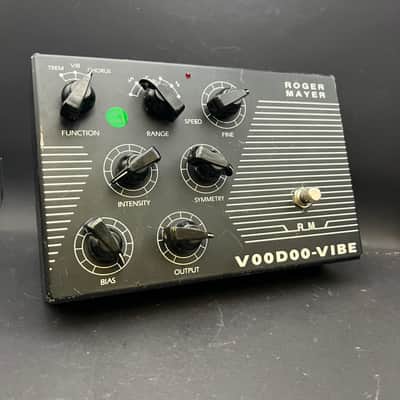

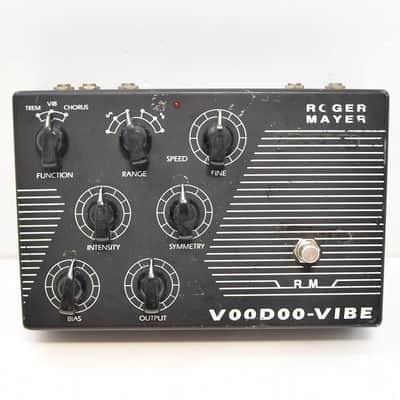

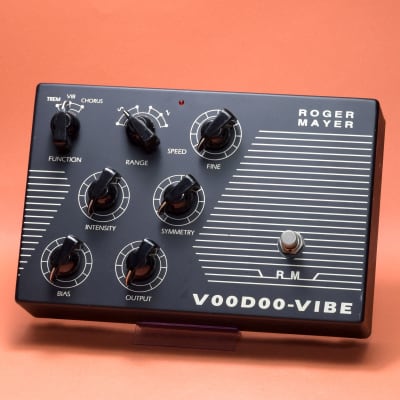

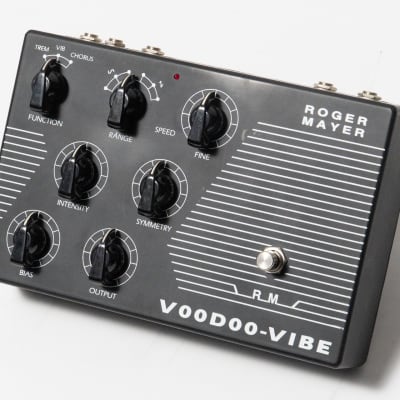

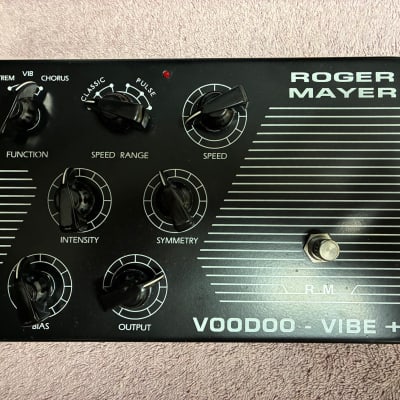

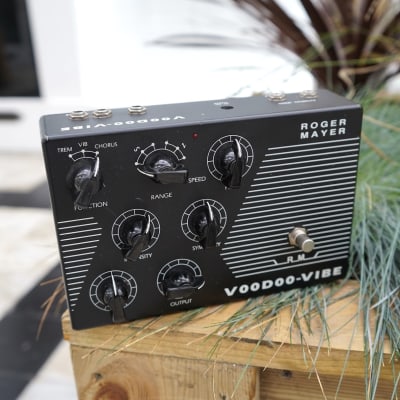

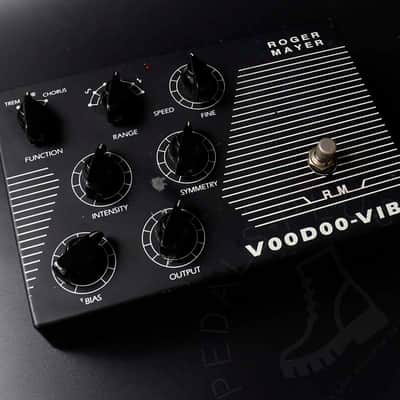

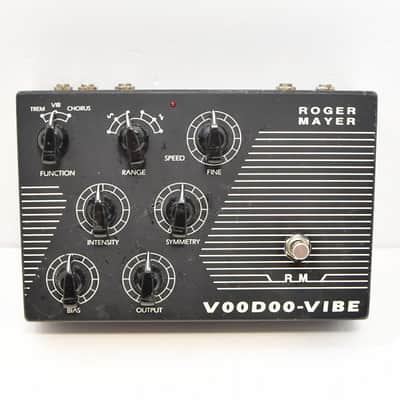

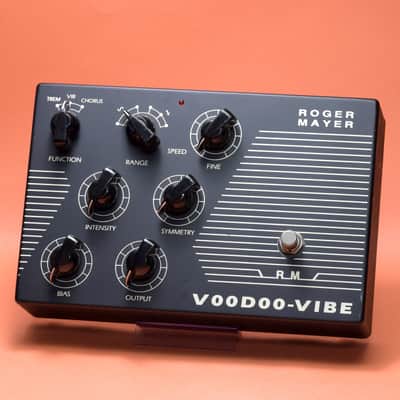

- Front panel controls for selecting Chorus, Vibrato, or Tremolo modes, adjusting speed range, symmetry, bias, intensity, and output level
- Rear panel jack sockets for input, hard wire or true bypass output, buffered output, and connection to an external foot volume pedal
- LED indicator for status monitoring

The Voodoo Vibe+ is a modern and worthy successor to the successful Voodoo- Vibe, offering new pulse waveforms for modern electro sounds and a wide range of effects. It is a versatile tool for musicians seeking vintage tones with modern control and functionality.
