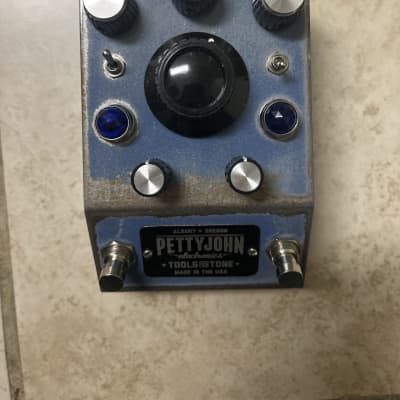

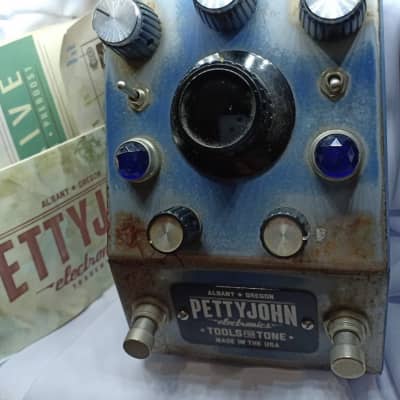

PreDrive Studio

The Pettyjohn PreDrive Studio is a high-quality, dual foot-switchable guitar preamp designed to be the first pedal in a chain. It is built in the USA with two discrete opamp chips and audiophile components throughout, ensuring the preservation of every detail of any instrument plugged into it.

Key Features:
- High headroom, transparent input buffer/preamp with true bypass
- Vari-Z switch to adjust input impedance for different guitars
- Foot-switchable boost with up to 11 dB of gain
- Wide range sweepable High Cut and Low Cut filters for shaping base tone
- Harmonic Drive Circuit and drive knob to mix in extra warmth and harmonic saturation
- Separate Buffered Tuner Output
- Transformer-coupled direct output on balanced TRS jack
- Utilizes standard 18-24 volt pedal power
- Durable, custom metal enclosure made in the USA
- Custom, hand-finished Vintage Blue Patina paint job
- Available in standard PCB and handwired editions, both fully made in the USA

Technical Specifications:
- Power: Dual-rail power section with 9V to 18V operation range
- Dimensions: 3 5/8 x 5 5/8 x 3 inches
- The PreDrive Studio can run on 9V to 18V DC, drawing around 50 mA, while effectively providing 18V to 36V of internal voltage swing

The PreDrive Studio's preamp was specifically designed to match impedances of magnetic pickups, typical in electric and bass guitars, and can be used as a preamp for almost any instrument outfitted with a magnetic pickup. With its full frequency range and transformer-coupled Direct Output, it is suitable for capturing great direct-in tones in the studio, reamping, using virtual amps, or adding extra dimension and clarity to tone in front of digital effects units.
