TR-X

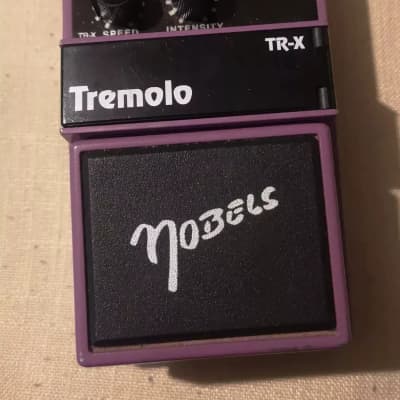

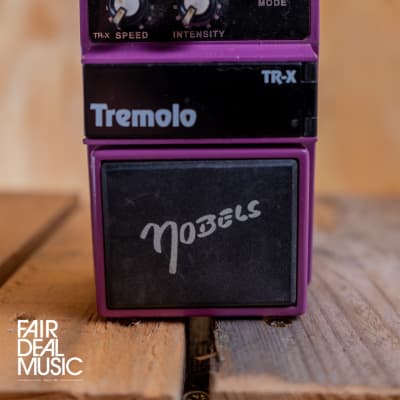

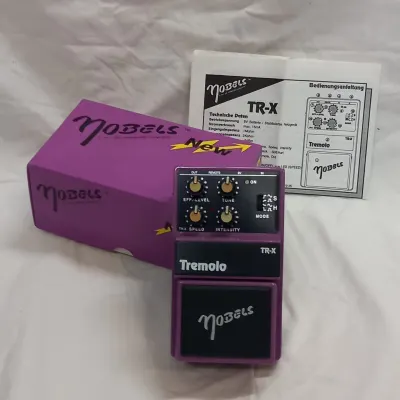

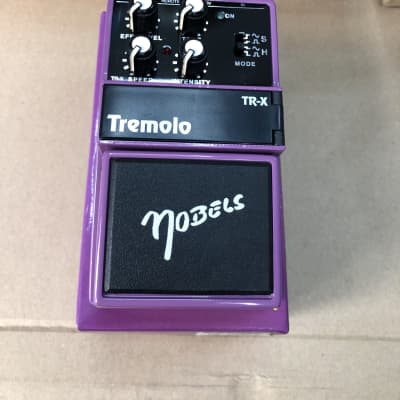

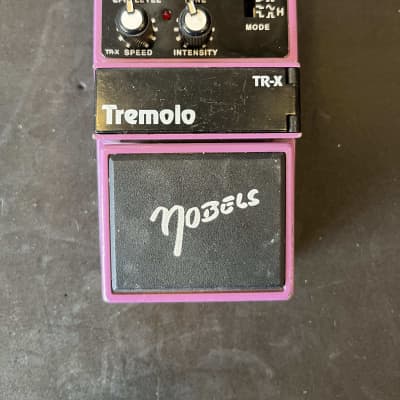

The Nobels TR-X Tremolo pedal is a versatile and powerful tool designed for guitarists. It offers a choice of four waveforms, including sine and square with two variations of each (soft and hard). The pedal features a volume control and a unique 'Tone' control that acts on the high frequencies, allowing for tonal manipulation from standard full-range tremolo to a focus on treble or bass frequencies.

The metal casing and general construction inspire confidence, with dimensions of 74mm x 126mm x 58mm and a weight of 450g (without battery). The pedal operates on a 9V battery or a regulated 9V power supply adaptor, with a maximum consumption of 15mA. It has an input impedance of 1Mohm, output impedance of 2Kohm, and a maximum input of +6dBm.

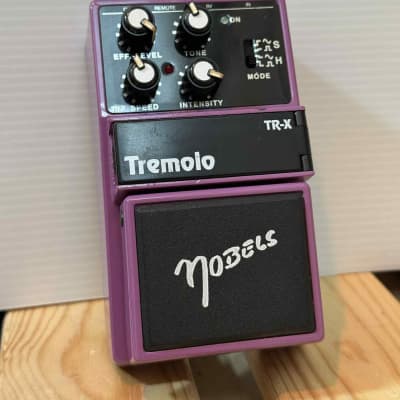

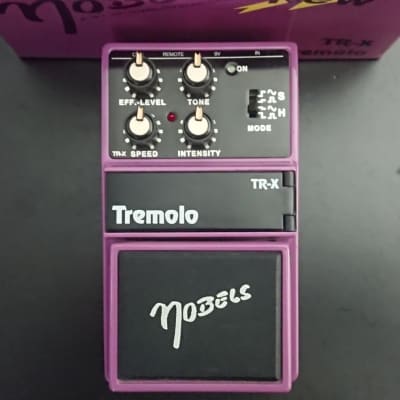

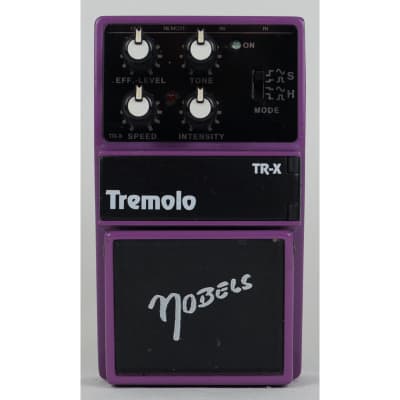

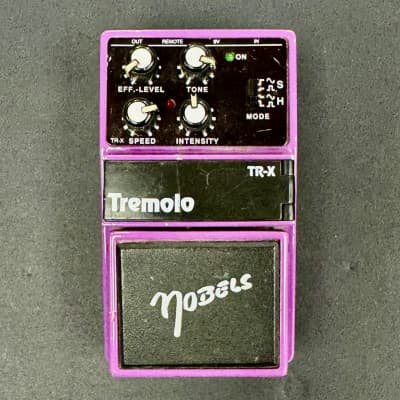

The control knobs include EFF-Level, Tone, Speed, and Intensity, along with a mode selector for choosing the modulation mode. The pedal also features LED indicators for the ON/OFF state and modulation speed. Additionally, it can be remote controlled by a momentary switch connected to the REMOTE jack.

The Nobels TR-X Tremolo pedal is a modern take on vintage tremolo effects, offering guitarists a wide range of tonal possibilities and modulation modes to explore in their playing.
