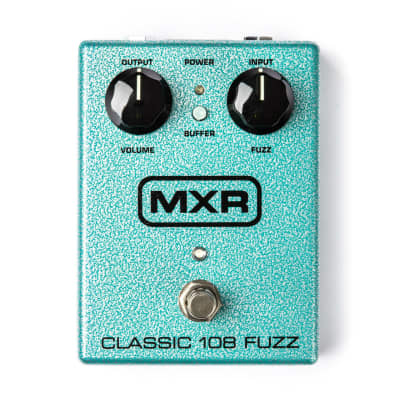

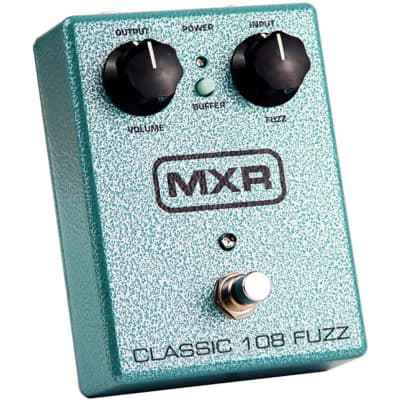

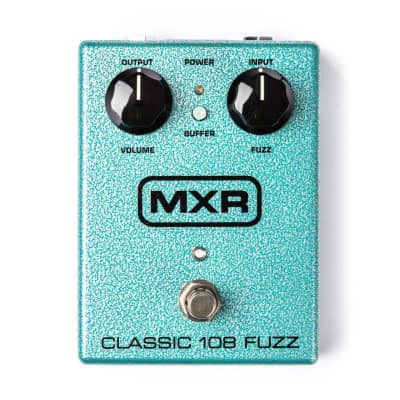

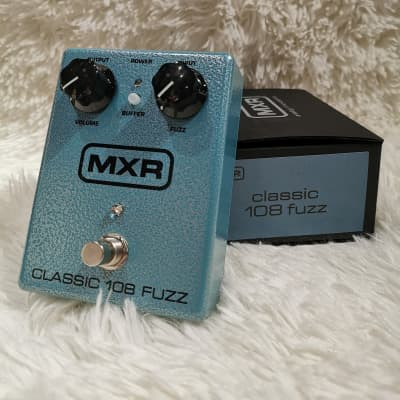

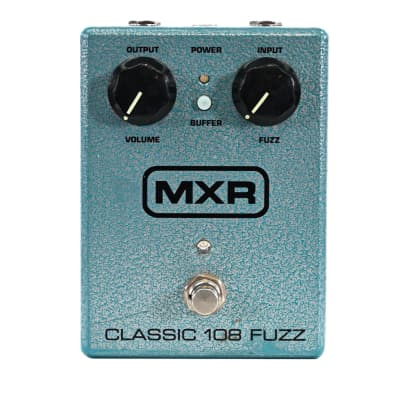

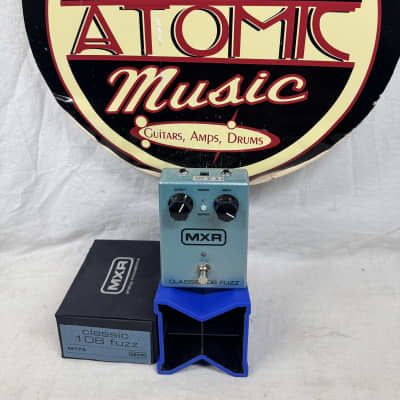

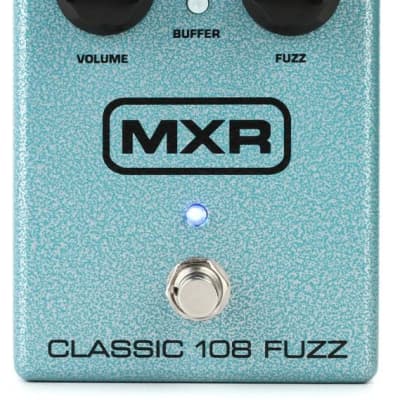

M173 Classic 108 Fuzz Pedal

The MXR M173 Classic 108 Fuzz Pedal is a vintage-style fuzz pedal designed to deliver classic fuzz tones in a modern, pedalboard-friendly enclosure. Here are the technical specifications and features:

- Effect Type: Fuzz
- Technology: Analog
- Mono / Stereo: Mono In, Mono Out
- Controls: Volume, Fuzz
- Switches: Buffer
- Bypass Mode: True bypass
- Power supply: 9 VDC, Center negative
- Power Consumption: 22 mA
- Battery powered: 9 V Block
- Housing size: Medium Size
- Dimensions (WxHxD): 114 x 64 x 140 mm
- Weight: 0.9 kg
- Country of Origin: USA

Additional Features:
- Hammer-tone Turquoise finish
- Convenient battery door
- Optional AC operation
- LED on/off display
- Buffer switch eliminates oscillation caused when a wah pedal is placed in front of the Classic 108 Fuzz
- Heavy-duty metal enclosure

The pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

The Classic 108 Fuzz pedal is designed to provide vintage fuzz tones with simple controls, while also offering modern features for convenience and versatility.
