Judder

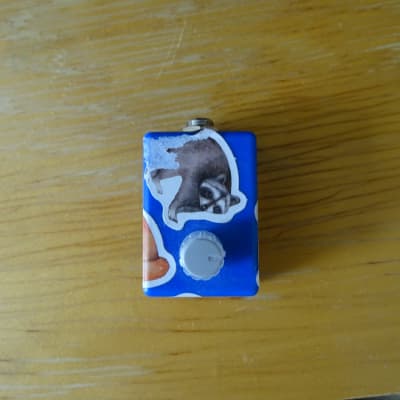

The Judder by MWFX is a versatile on-the-fly sampler pedal designed for guitar, but also compatible with microphones, keyboards, drums, and MP3 players. The pedal features a mode switch for Layer (sound on sound), Judder (mute input and repeat loop), Mute (killswitch), and Bypass (mechanical true bypass of the pedal). The Hold control sets the feedback/number of repeats, ranging from single repeat to ramping feedback.

Technical Specifications:
- Power Supply: Centre Negative, 2.1mm / 9v / 35mA
- Input / Output: 1/4" jack, setup for guitar but accepts various input sources
- Input Impedance: 1MΩ
- Output Impedance: 200Ω
- Expression Pedal Input: 20k Nominal, TS and TRS compatible, accepts CV of up to 5v
- Dimensions: 60 x 60 x 110mm

The Judder pedal offers an intuitive switching system for dropping in loops of echo, volume, pitch, and modulation effects on the fly. It also features an expression pedal input for controlling sample parameters.
