EFX LE

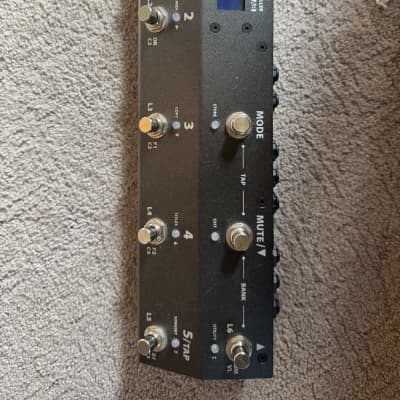

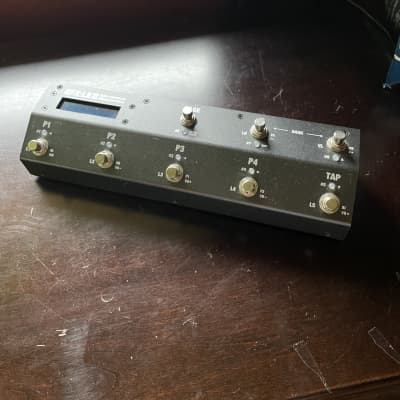

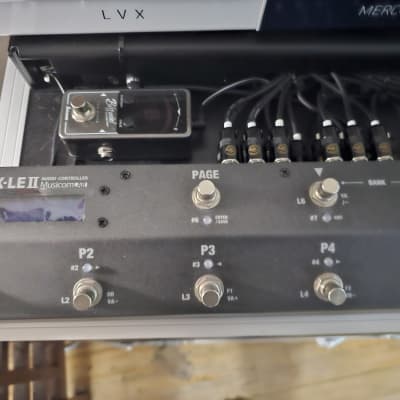

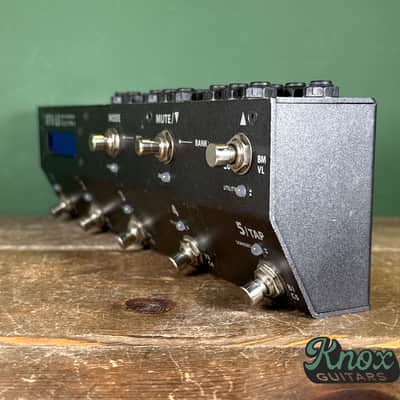

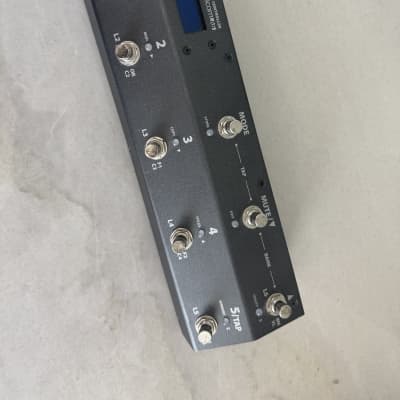

The EFX LE by MusicomLab is a versatile pedalboard controller switcher designed for professional use. It offers the following technical specifications:

- 4 mono loops and 2 stereo loops, plus 1 volume loop
- Changeable loop order per each preset
- 2 Buffers, Input and Movable buffers
- 2 internal unity mixers/volume-controllers (Parallel, Carry Over routings, or Volume Control)
- 641 preset memory locations
- 160 banks of 4 presets, plus a Global Preset
- 2 function control switches (Latched / Reverse Latched / Momentary / Tempo Sync)
- Mute and Click-Less functions
- Song and Set mode
- Ability to create up to 480 songs organized into 60 sets of 48 songs
- 12 MIDI messages (PC, CC, and Note) each preset
- 4 MIDI messages (PC, CC, and Note) each switch
- 4 Audio actions each IA switch
- MIDI Time Clock or Analog Tempo out for TAP-TEMPO
- One expression pedal port (global / per preset)
- 2 lines x 16 characters LCD display with blue backlight
- Easily copy presets, banks, songs, and sets
- Heavy-duty footswitches
- Powered by 9VDC (center negative) 200mA
- Dimensions: 320(W) x 96(D) x 68(H) mm / 12.6(W) x 3.8(D) x 2.7(H) inches
- Weight: 1,130g / 2.5lbs

The EFX LE is available with the EFX-LEII Manual (English, version 2.3x) and the latest firmware, EFX-LEII Firmware v2.30 (06-NOV-2023). Additionally, an EFX-LEII Editor is available for both Windows and macOS.
