Phasor

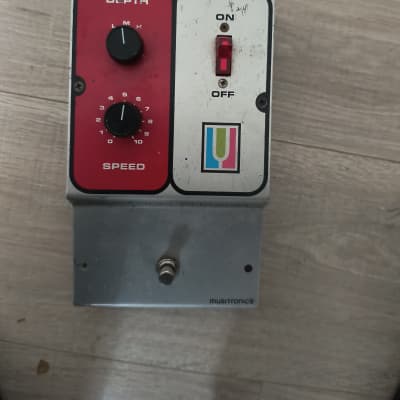

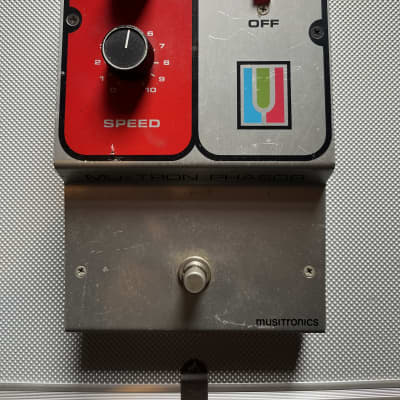

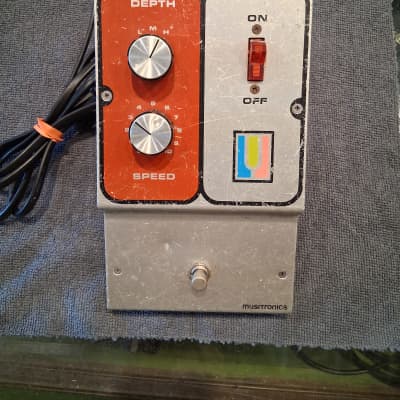

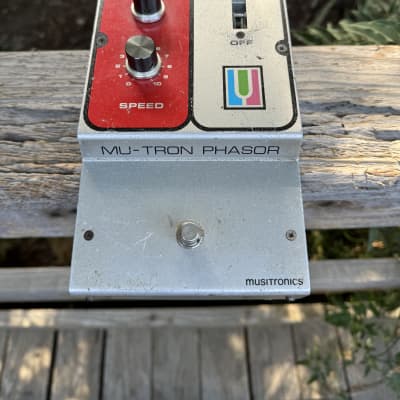

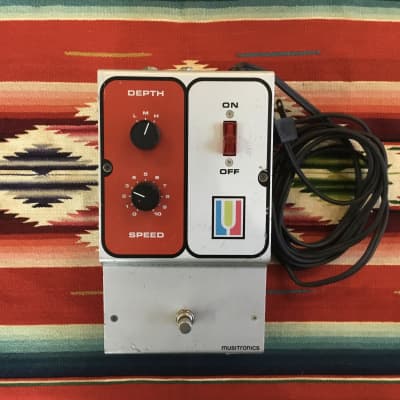

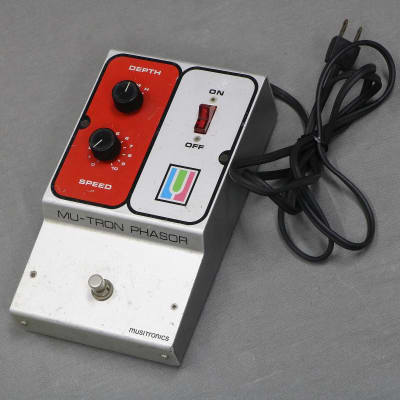

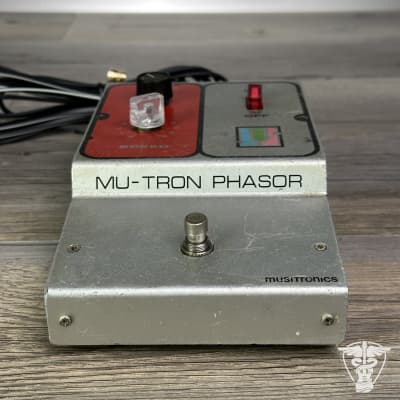

The Mu-Tron Phasor is a renowned phase-shifting device known for its advanced performance and rugged design. The Phasor II model offers six phase-shift stages, providing a maximum of 1080 degrees of phase-shift for a deep, satisfying phasing effect. It features exclusive feedback circuitry for a distinctive sweeping effect, even at slow phasing rates. The circuitry has extremely low noise and exceptional signal-handling capability, making it ideal for use with high-output electric keyboards, electric guitars, and other instruments in studio or live settings.

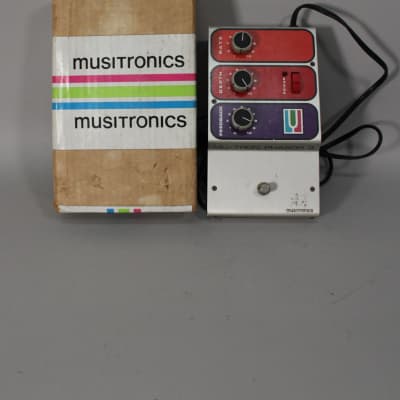

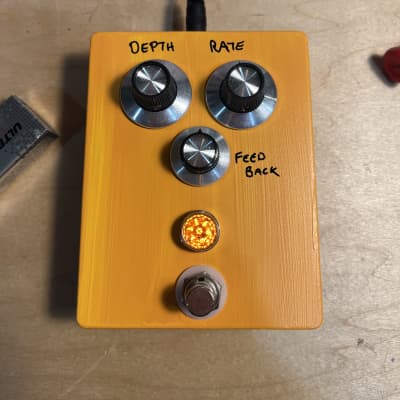

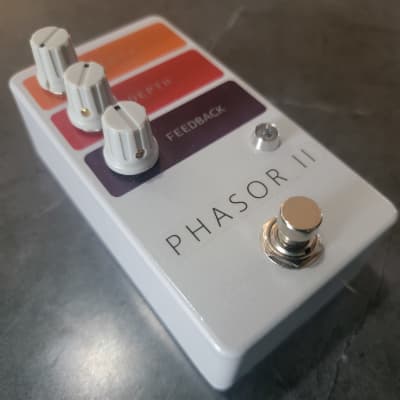

The Phasor II's controls include Rate for speed/rate of the LFO wave, Depth for modulation depth, and Feedback for the level of effected signal fed back into the effect. Its technical specifications include an input impedance of 390K ohms, output impedance of 600 ohms, unity gain, and a frequency response of 20Hz – 20KHz ± 2db in bypass mode. It operates on 115V AC, 50-60Hz, and weighs 3½ pounds with dimensions of 8¾” l. X 5″ w. X 3⅛” h.

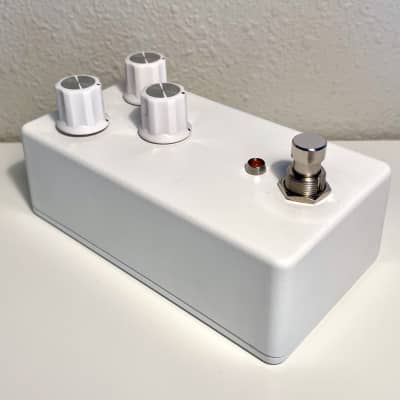

The Phasor III is a compact, modernized, and affordable version of the classic Phasor II, offering a creamy phase and a 4-stage mode with fixed feedback for classic rock tones that work well with overdrive and distortion harmonics. It also features control voltage input for real-time control of Rate or Depth, and control voltage out for linking multiple Phasor III pedals. The pedal operates on 9V DC power and weighs 1 lb, with dimensions of 4.75″ x 2.5″ x 2.25″. It comes with a 1-year limited warranty and is made in the USA.

Both models are known for their high-quality components, heavy-duty construction, and exceptional performance, making them popular choices for musicians seeking versatile and reliable phase-shifting effects.
