C-200 Volume-Wah

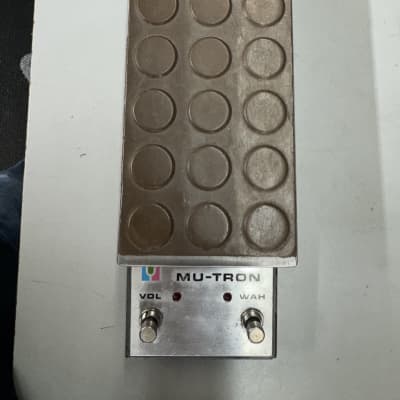

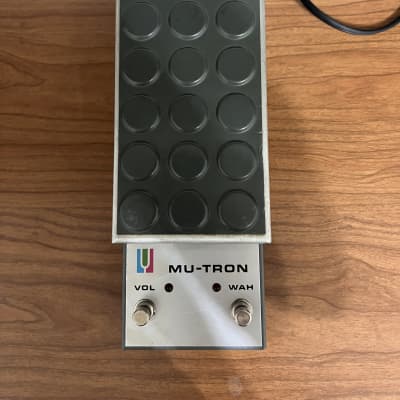

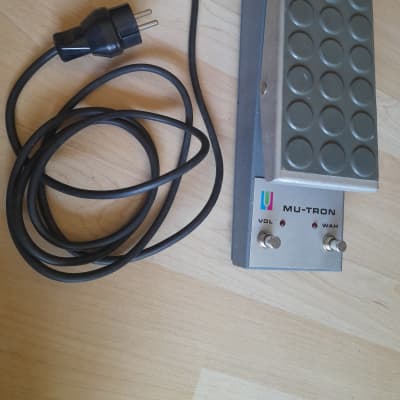

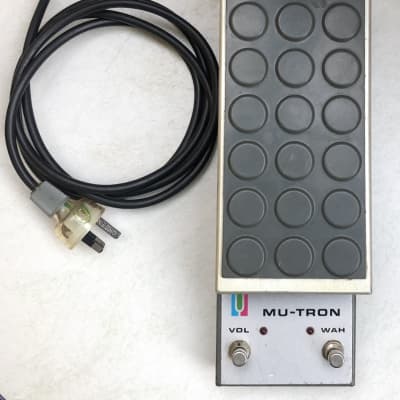

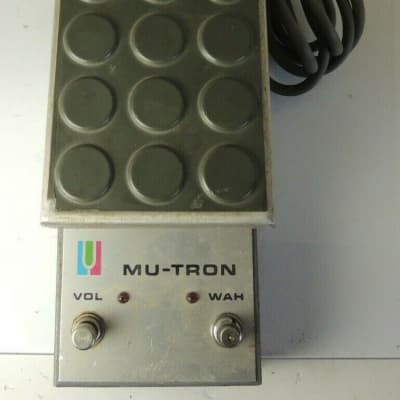

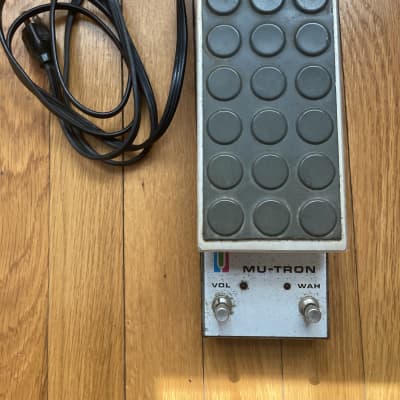

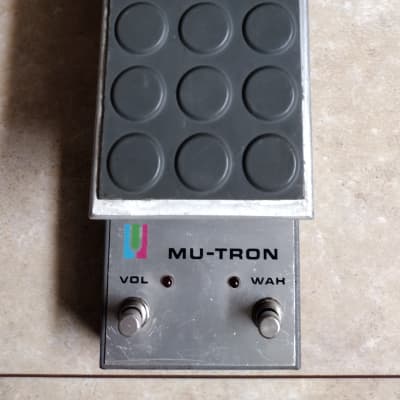

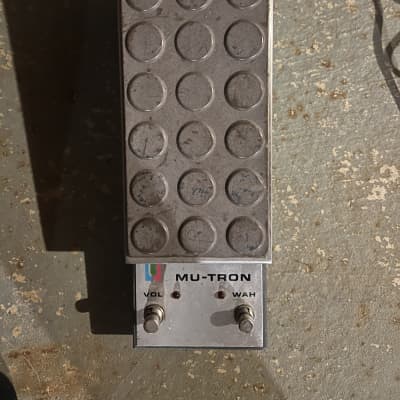

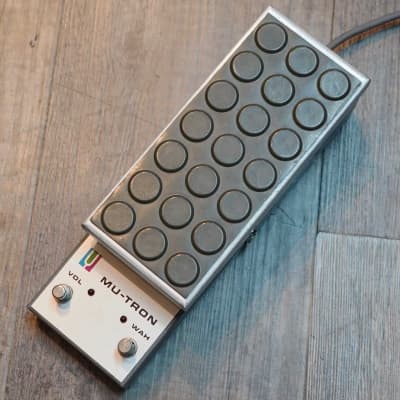

The Mu-Tron C-200 Volume-Wah pedal is a versatile effects unit designed for guitarists and other musicians. It features volume and wah functions that can be used independently or in combination, offering a wide range of tonal possibilities. The pedal includes a trim pot on the side, providing a gain boost of 0 to 10 dB, and two LEDs to indicate the status of the effects.

Specifications:
- Input Impedance: 390k ohms, unbalanced
- Output Impedance: 600 ohms, unbalanced
- Trim Pot: Gain boost of 0 to 10 dB
- AC Power Requirements: 115V AC, 60Hz
- Dimensions: 11½” l. X 3¾” w. X 3″ h. (in closed position)
- Weight: 4 pounds

The unit is AC powered and is guaranteed to provide uniform operation over all normal temperature and environmental conditions, delivering studio-quality sound. The pedal's design allows for control of silent to full-volume volume sweep and filter sweep via foot pedals, and both functions can be simultaneously controlled when both foot switches are enabled.

The Mu-Tron C-200 Volume-Wah pedal is a sought-after effects unit known for its cult following and its ability to produce a wide variety of expressive and dynamic effects, making it a valuable addition to any musician's setup.
