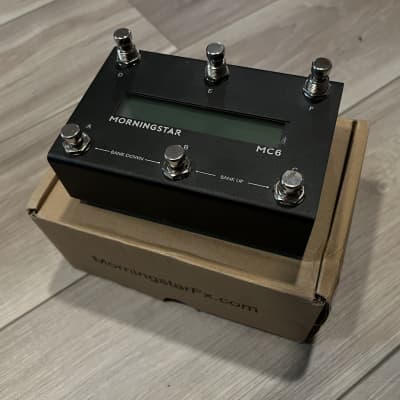

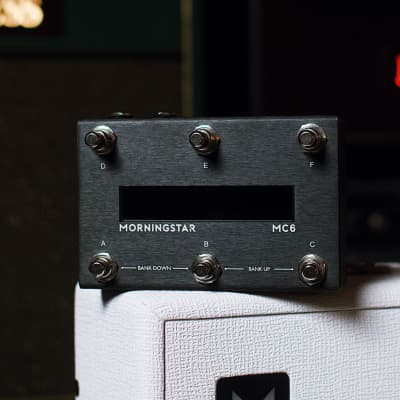

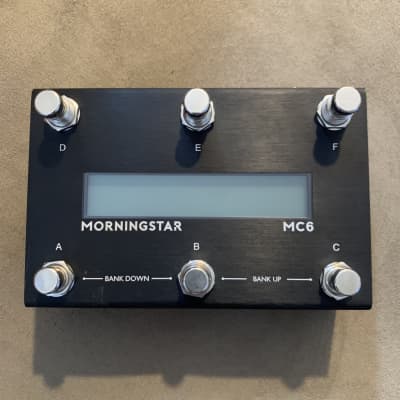

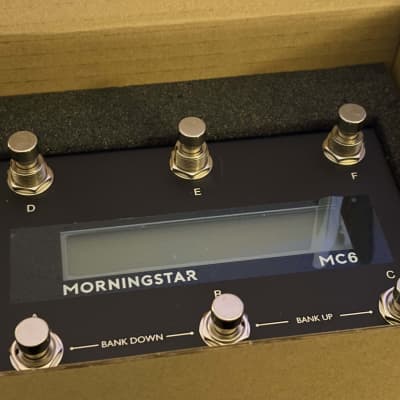

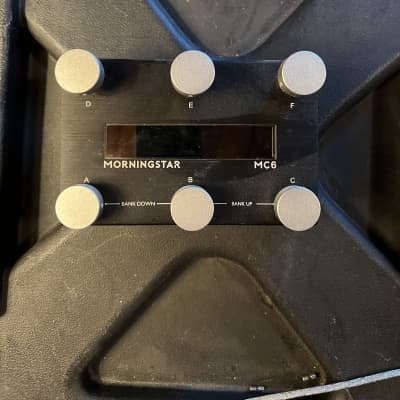

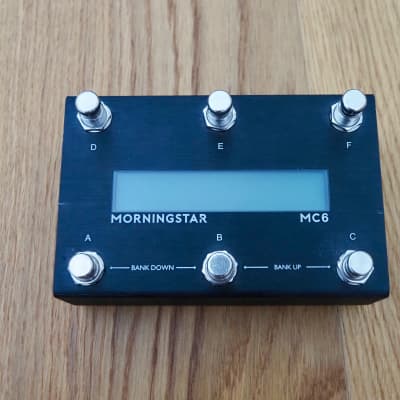

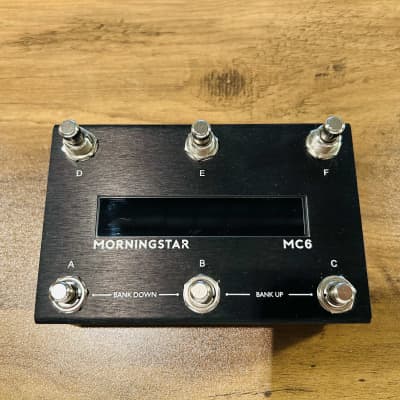

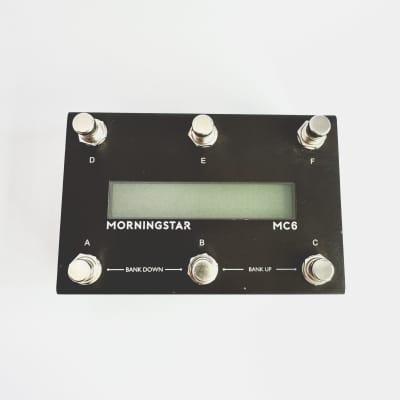

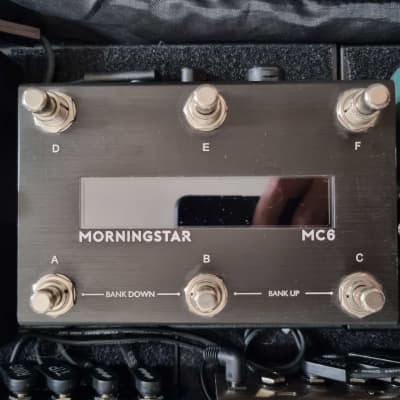

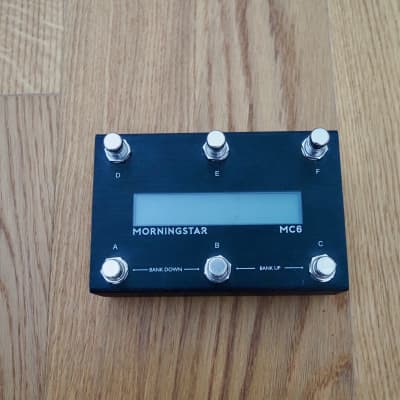

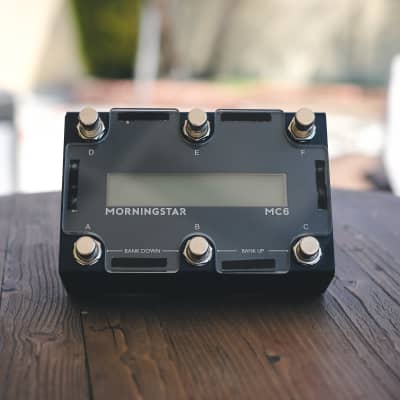

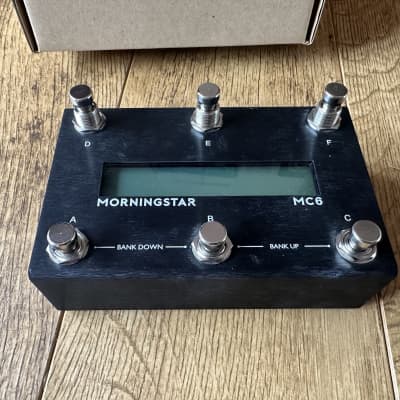

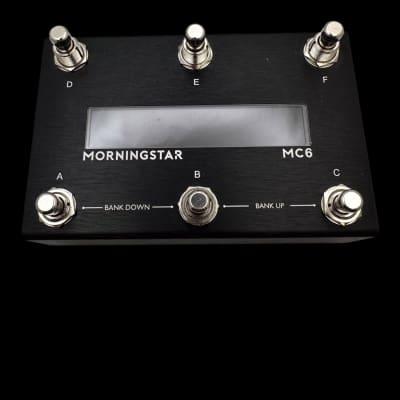

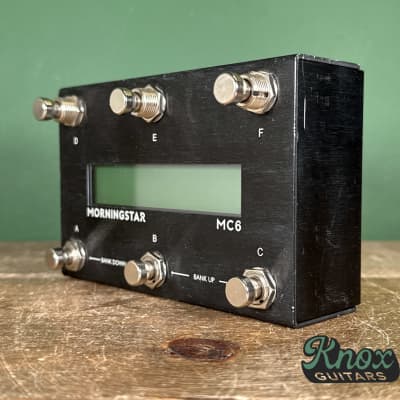

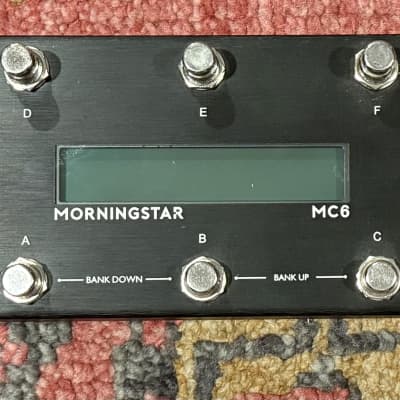

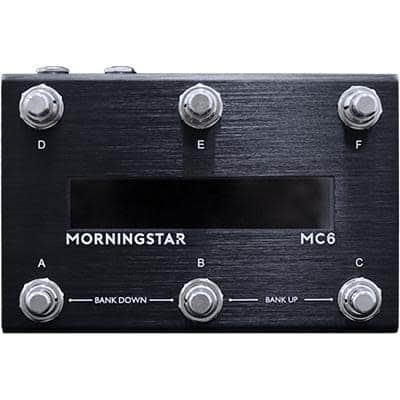

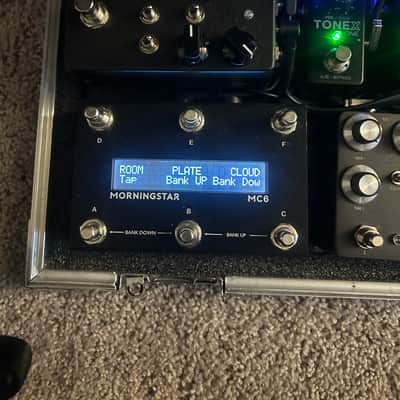

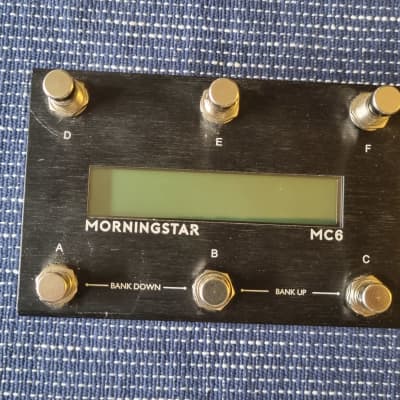

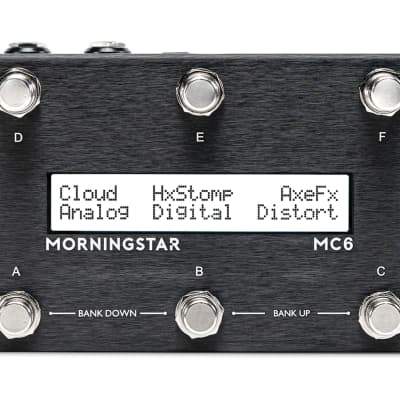

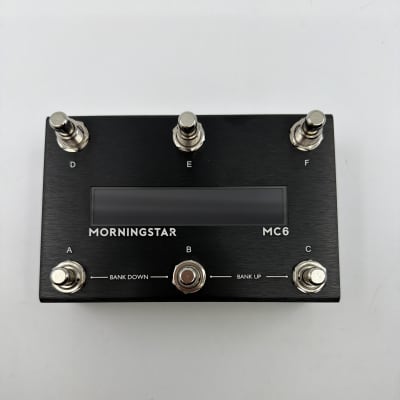

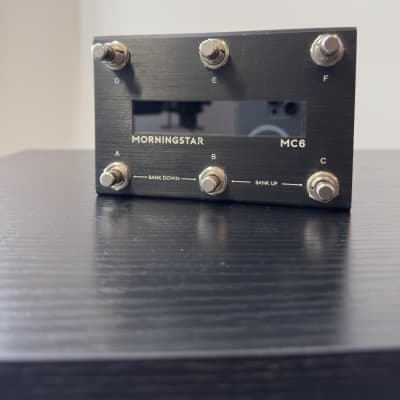

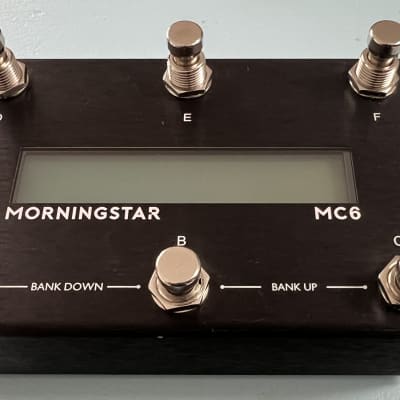

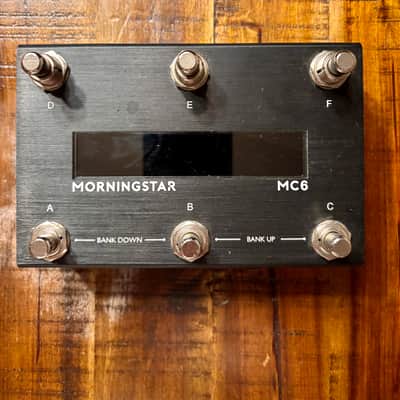

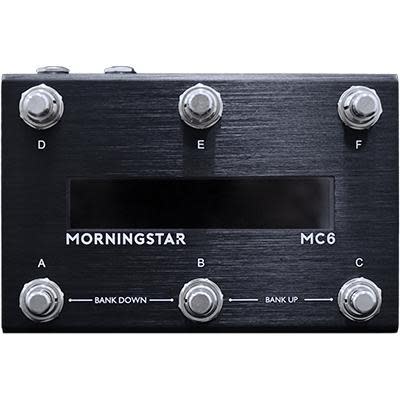

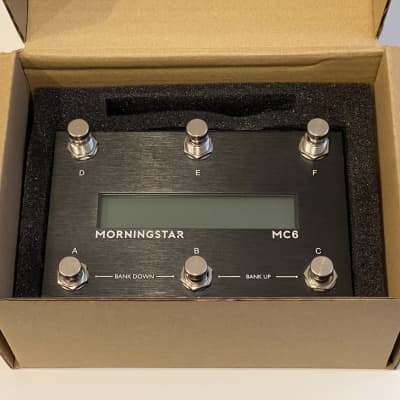

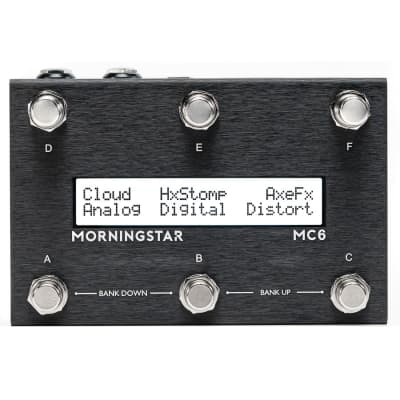

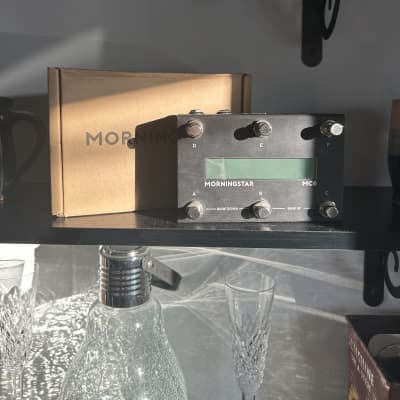

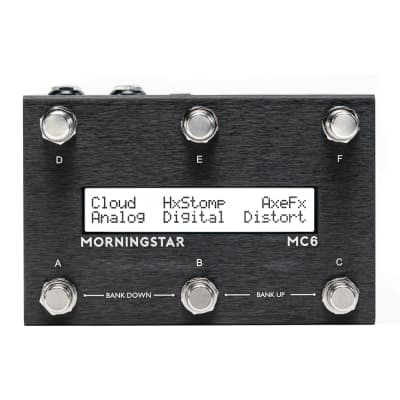

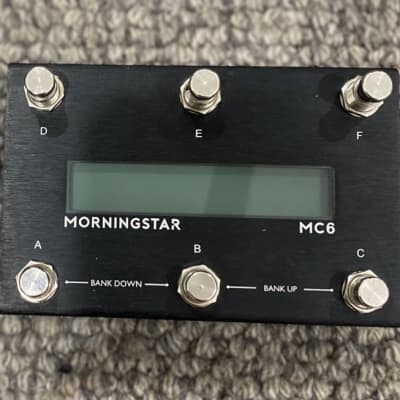

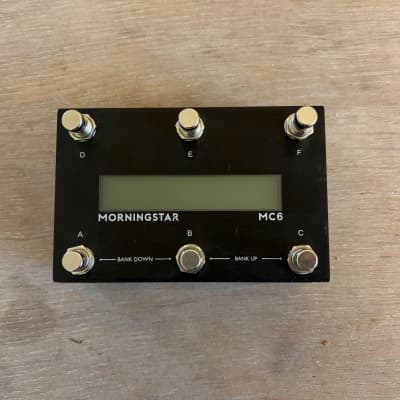

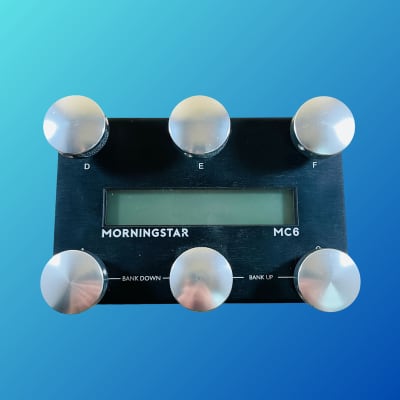

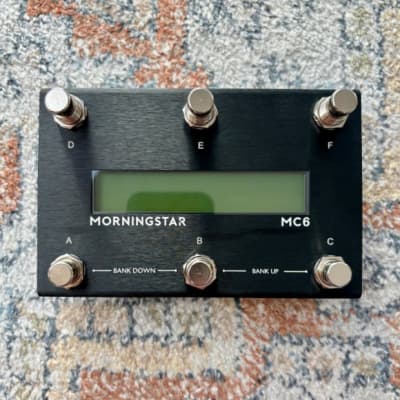

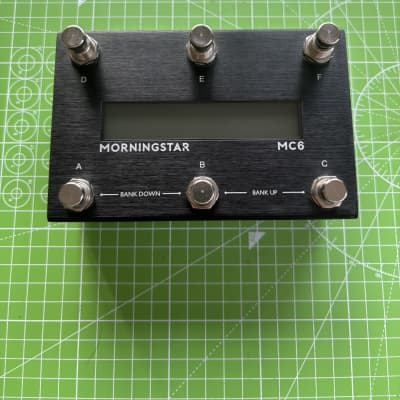

MC6 MKII

Morningstar Engineering's MC6 MKII is a fully programmable MIDI controller designed for precise and customizable control over MIDI-capable pedals and devices. Here are the technical specifications and features:

Dimensions: 145 x 95 x 45 mm
Power Options:
- 9-12V DC center negative (min 120mA)
- USB power
- 9-12V AC/DC MIDI phantom power via MIDI output pins 6 & 7

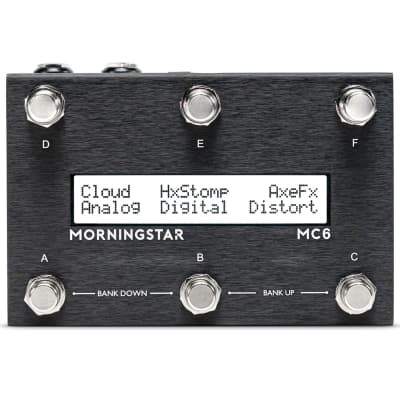

Hardware: Anodized aluminum enclosure, soft-touch foot switches, 24 x 2 character LCD display
I/Os:
- 1 x 5-pin MIDI Out/Thru
- 1 x 5-pin MIDI In
- 1 x Class Compliant USB Type B (receives buss power, sends & receives MIDI)
- 2 x 1/4" Omniports (expression pedal in, aux switch in, or MIDI out)

Features:
- 30 banks of 12 preset slots, with each preset capable of sending up to 16 different MIDI messages
- MIDI message types include PC, CC, Note on/off, SysEx, MIDI Clock (preset or tap), Preset Scroll, Bank Up/Down, Toggle Page, and more

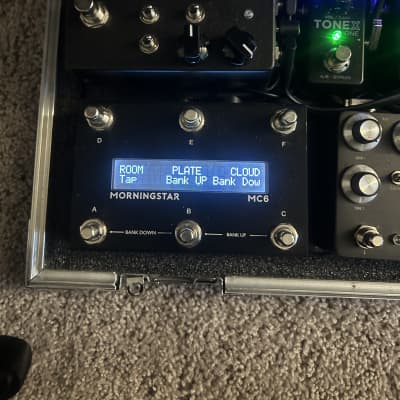

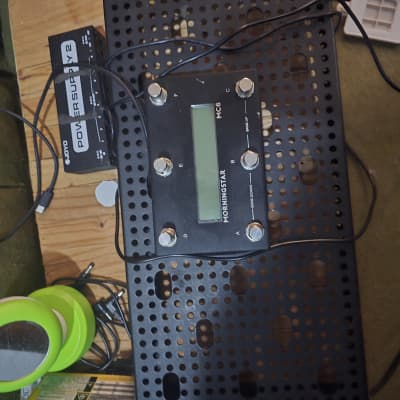

- Easy integration into pedalboards and rigs
- Can be powered by USB buss power, MIDI phantom power, or standard 9-12V DC power supply
- Expression pedal control for smooth continuous MIDI control with user- selectable pedal response curves
- Multi-type MIDI outputs via 5-pin, TRS, and USB ports
- MIDI CC waveforms with four independent MIDI Waveform Engines for continuous streams of CC messages
- Expandable with aux switches for more control over presets and controller navigation
- Morningstar Editor app for fast and easy programming, available as a desktop web application (Windows and Mac), mobile web application (Android and iOS), and an iOS app on the App Store
- MIDI Dictionary for easy selection and addition of MIDI messages to switches
- Song & set lists creation and navigation with Bank Jump feature
- Dual-page banks for doubling the number of preset slots in each bank

Morningstar Engineering's MC6 MKII offers a comprehensive set of features and technical specifications, making it a versatile and powerful MIDI controller for musicians and performers.
