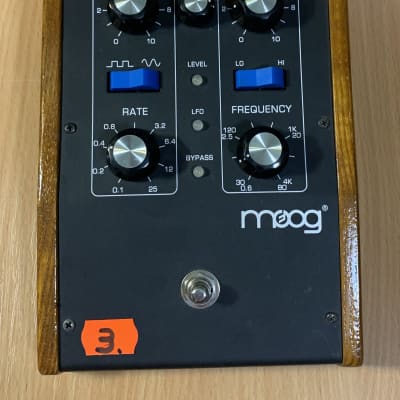

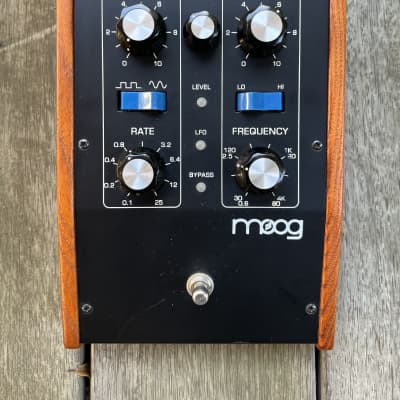

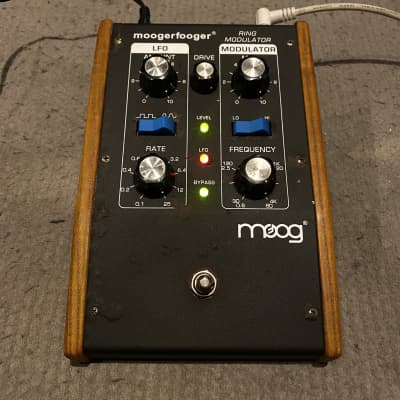

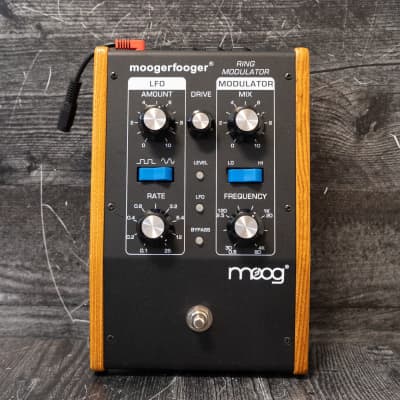

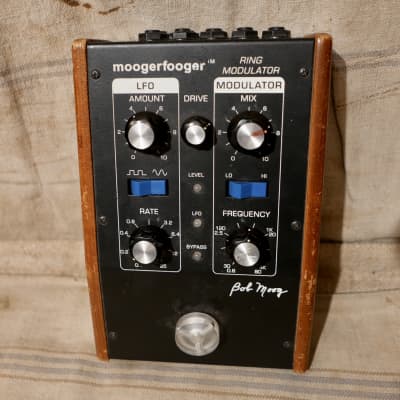

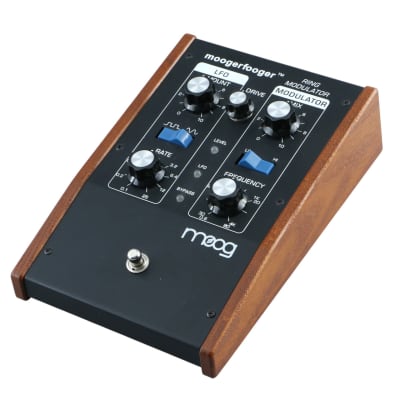

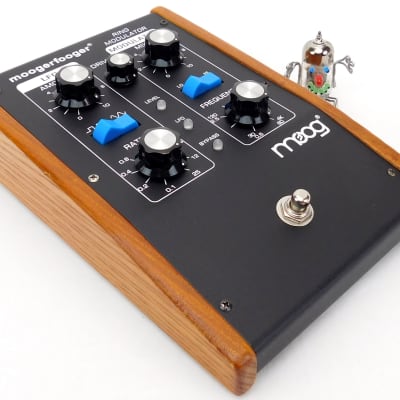

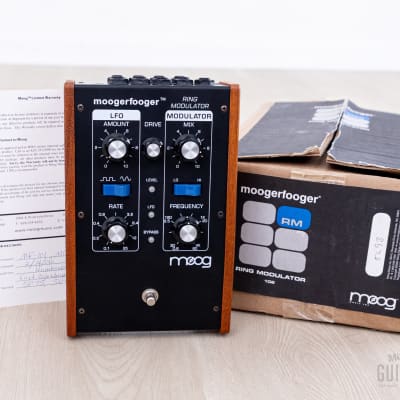

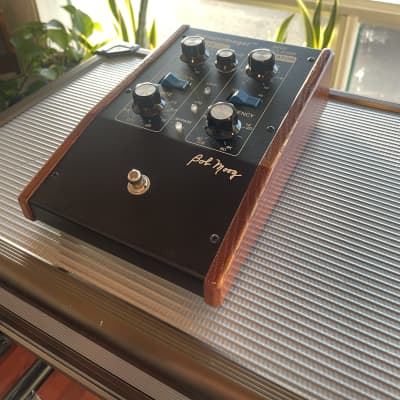

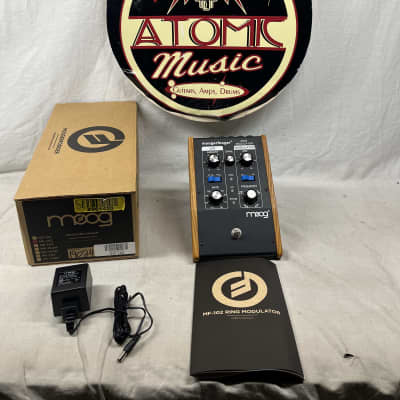

Moogerfooger MF-102

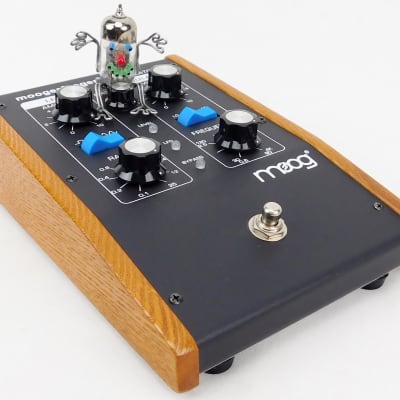

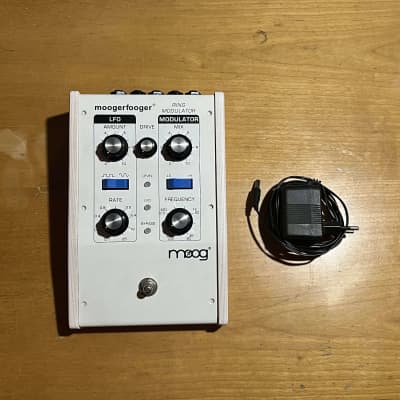

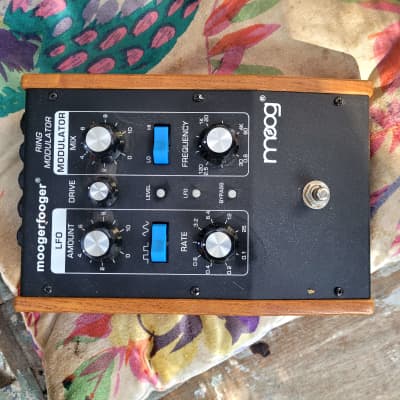

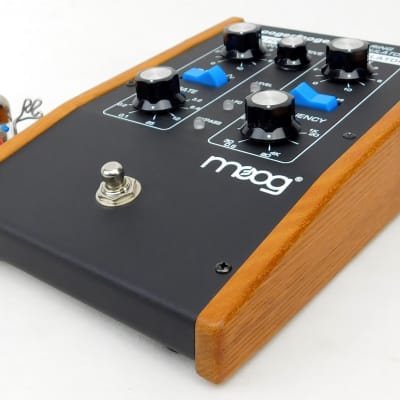

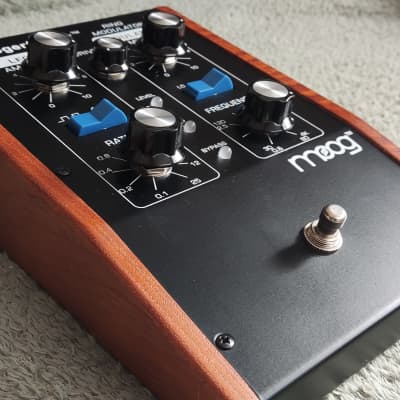

The Moogerfooger MF-102 Ring Modulator by Moog is a versatile analog effects module designed to work with any sound source. It is a direct descendant of Moog modular synthesizers and offers a wide range of features and functionalities. The MF-102 contains three complete modular functions: a ring modulator, a voltage-controlled carrier oscillator, and a voltage-controlled dual-waveform LFO.

Key Technical Specifications:
- Dimensions: 6”W x 2.6“H (with knobs) x 9“D
- Weight: 2 lbs
- Power Requirements: +9 to +15 volts DC, approximately 100 milliamperes of current
- Audio Input Level: Adjustable with DRIVE control

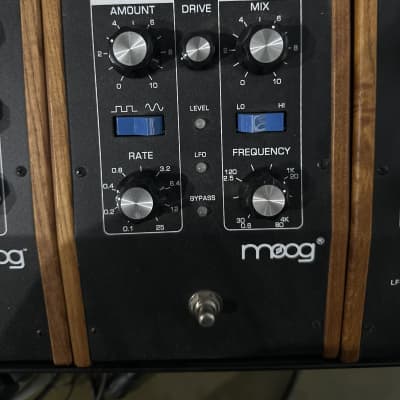

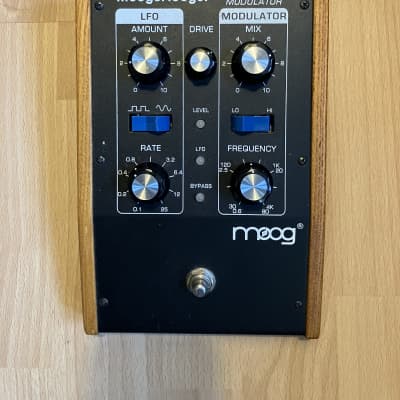

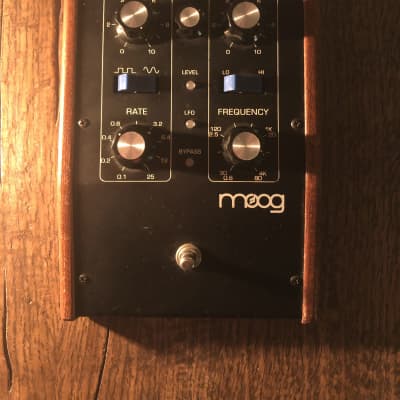

- Modulator Section: Features MIX knob for crossfading, FREQUENCY knob for carrier oscillator frequency, and LO-HI switch for frequency range selection

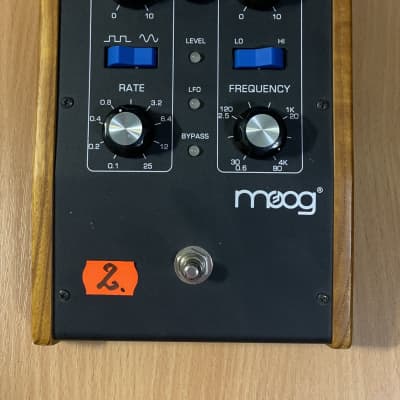

- LFO Section: Includes AMOUNT and RATE knobs for controlling the LFO, with a switch for selecting between square and sine waveforms
- Bypass: On/Bypass switch with two-color LED indicator
- Expression Pedals and Voltage Control: Supports up to four expression pedals for hands-free control and can be interfaced with external control signal sources
- Audio Path: Utilizes voltage-controlled amplifier circuits for voltage- controlled mixing and smooth, clickless switching

The MF-102 is capable of creating a vast array of sounds ranging from organic to chaotic. It can produce beautiful tremolo effects at subtle settings and transform sounds into bizarre and robotic resonations at extreme settings. Additionally, it offers multiple CV/Expression Pedal inputs and outputs for simultaneous parameter manipulation and modular interconnectivity with other Moogerfooger analog effects.

For purchasing options and additional information, visit the official Moog Music website: [Moogerfooger MF-102 Ring Modulator - Moog Music](https://www.moogmusic.com/products/moogerfoogers/mf-102-ring- modulator).
