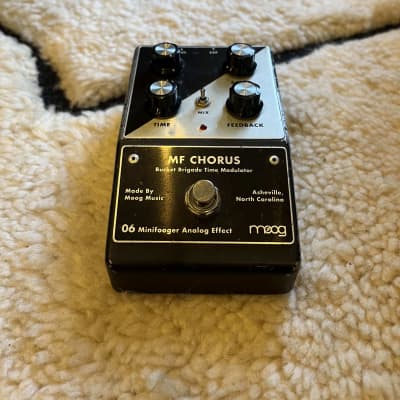

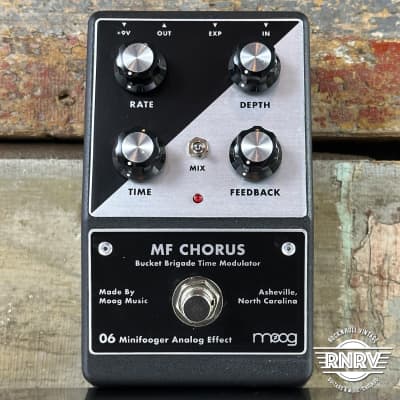

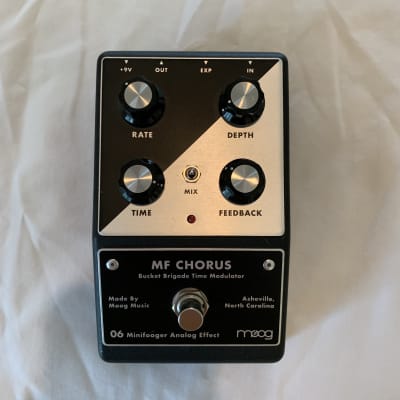

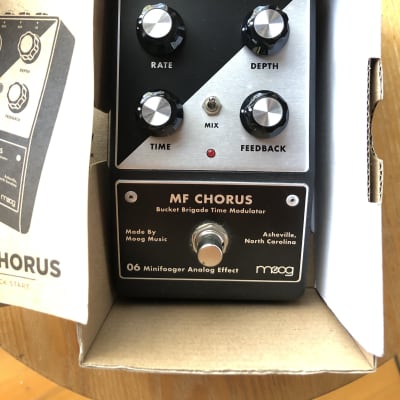

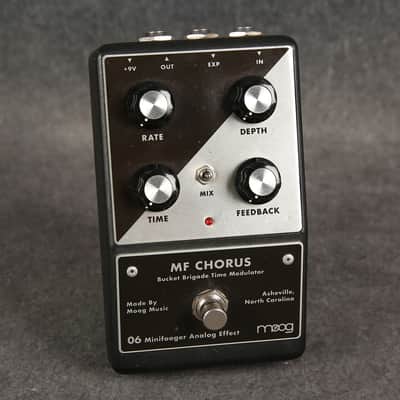

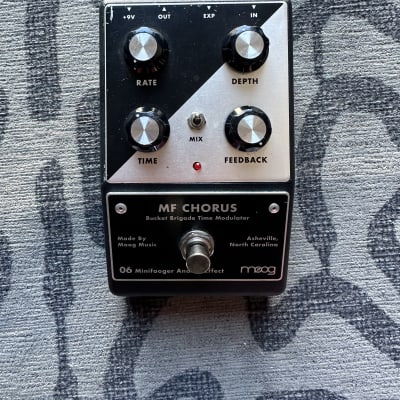

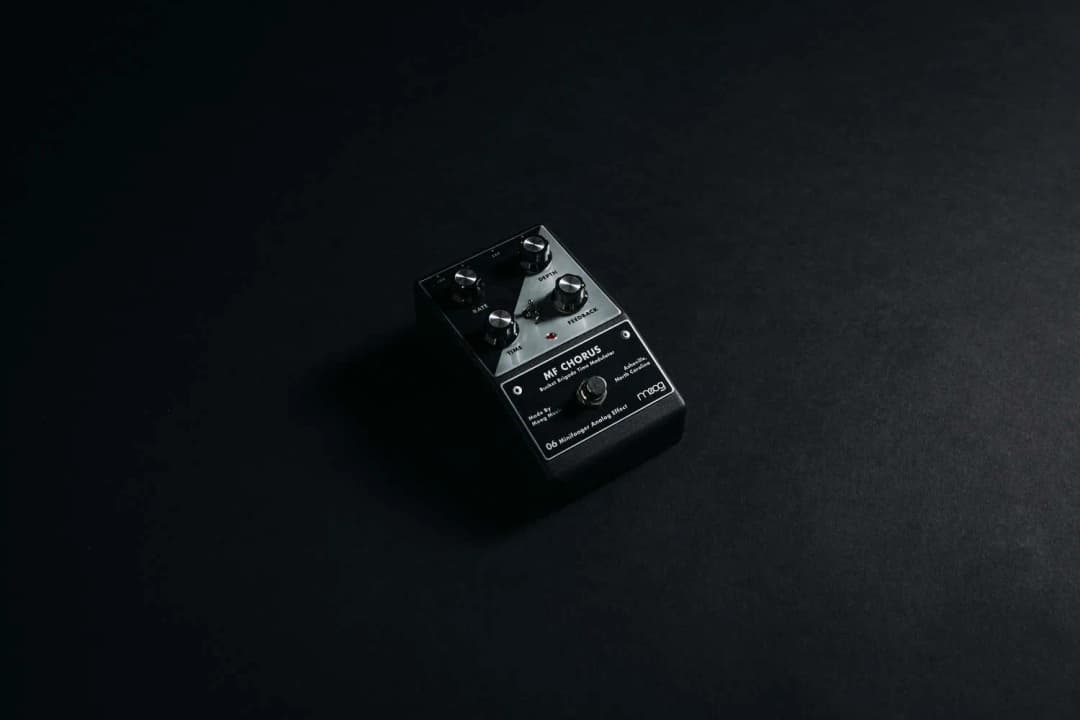

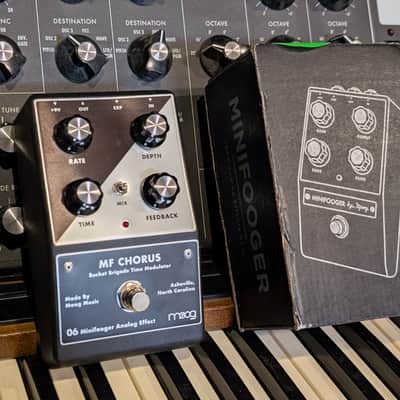

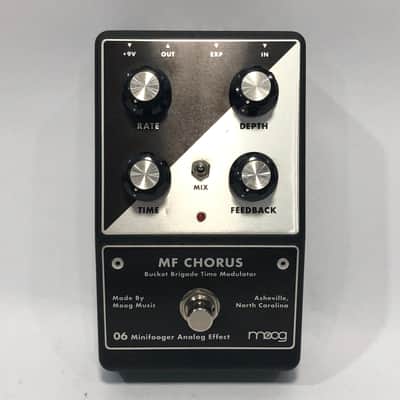

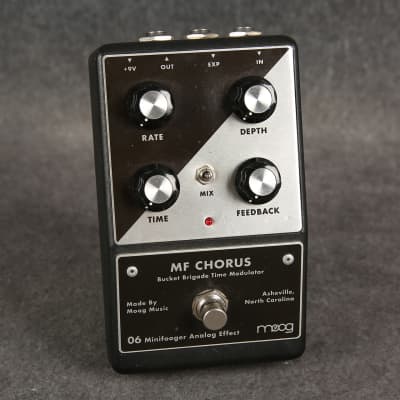

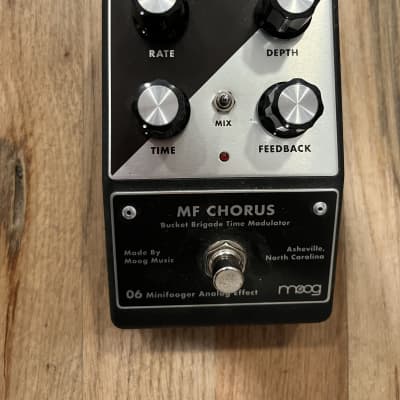

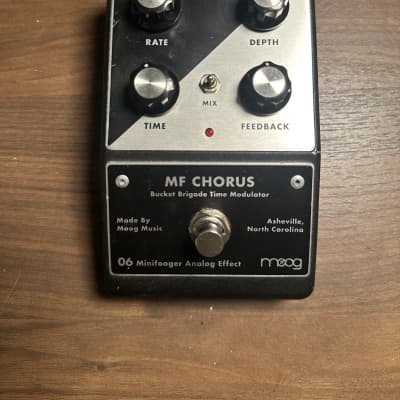

MF Chorus

The MF Chorus by Moog is an all-analog, BBD-based time modulation pedal capable of producing a wide range of sonic effects in mono or stereo output modes. It offers the following technical specifications and features:

- Signal Path: 100% Analog
- Bypass Type: True bypass
- Power: +9VDC
- Weight: 18oz (0.5kg)
- Enclosure: Cast aluminum
- Dimensions: D=5.75” (14.4 cm), W=3.25” (8.3 cm), H=2.25” (5.8 cm)
- Delay Time: <3.2mS – 60mS (2mS – 70mS with Modulation)
- LFO Rate: <.05Hz - >13Hz (>25Hz With expression)
- LFO Shape: Exponentiated Triangle
- Expression: Controls RATE (max input level: +5VDC)
- Input Impedance: >1 M Ω
- Output Impedance: 1000 Ω Max
- Max Input Level: +7.5dB μ
- Max Output Level: +10dB μ
- Current: 16mA Nominal / 20mA Max
- Output Stereo: LEFT (Mono) = Dry+Wet, RIGHT = Dry - Wet

The MF Chorus can be used to create ultra-thick analog chorus and vibrato effects, modulated analog slap delays, and spinning, rotary, and film projector effects. It also features a mix switch for adjusting the sound openness and warmth, as well as a mono/stereo switch for accessing both outputs. Additionally, it has an expression pedal input for controlling the rate and can be used to conjure various effects.

For more detailed information, the MF Chorus manual is available for download from the Moog Music website.
