Tone-Burst

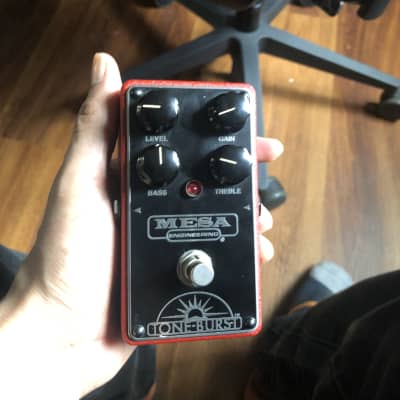

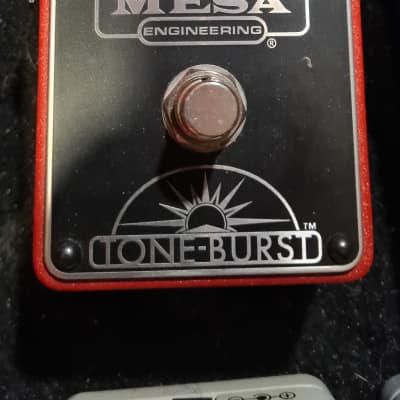

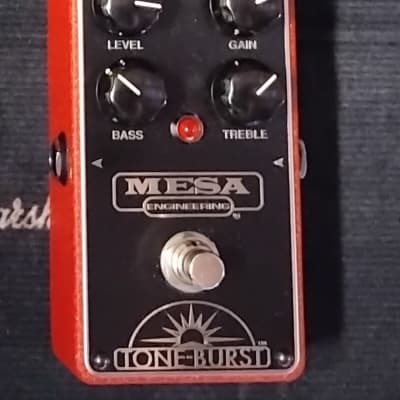

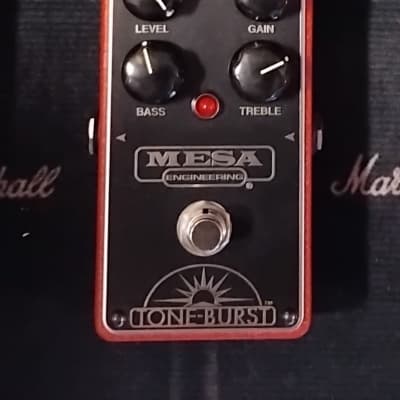

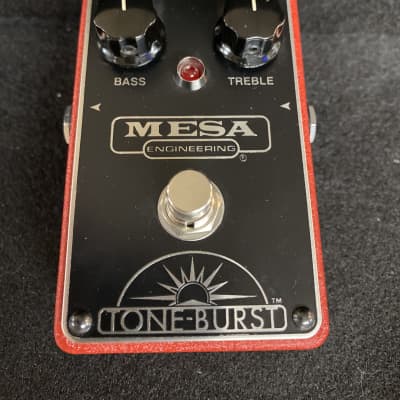

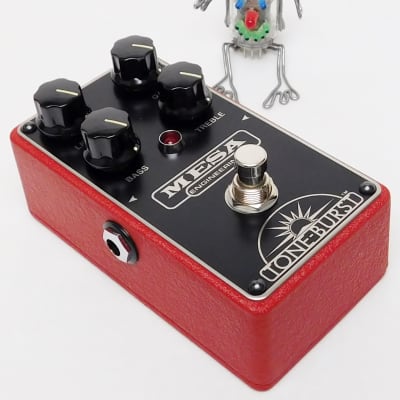

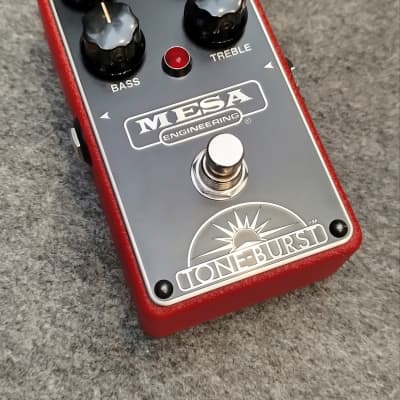

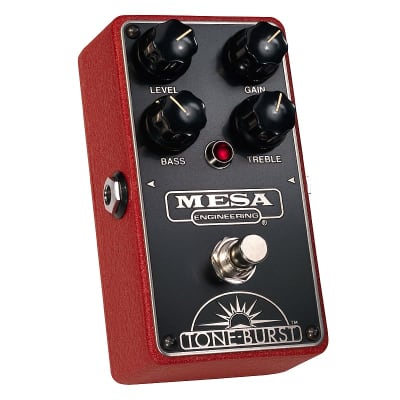

The Mesa Boogie Tone-Burst is a versatile pedal designed to provide a virtually transparent gain range typically associated with devices in the Clean Boost category. It offers additional gain to boost the signal of a guitar to the threshold of clip and beyond. The pedal is suitable for helping single-note lines stand out in a dense mix or for adding edge and attitude to rhythm parts. The TONE BURST features separate tone controls for treble and bass regions, allowing users to color the boosted signal and further accentuate their parts. When the tone controls are set to 12:00, the instrument's signal remains virtually unchanged, providing a nearly transparent boost.

Key Features and Controls:
- IN: 1/4” phono jack for instrument input
- OUT: 1/4” phono jack for output to the amplifier
- LEVEL: Master output level control
- GAIN: Control for determining the amount of gain in the signal path
- BASS: Control for adjusting low frequencies
- TREBLE: Control for adjusting high frequencies
- AC POWER: Standard female DC receptacle for external power supply
- INTERNAL BATTERY: Operates on a 9-Volt battery or a standard 9-Volt “wall- wart” DC power supply
- True Bypass Switching
- Dimensions (W/D/H): 2.87” x 4.77” x 2.28” (73mm x 122mm x 58mm)
- Weight: 0.802lbs (364g) with battery, 0.702lbs (319g) without battery
- Power Consumption (Current Draw): 9VDC/15mA
- Input Impedance: 2M Ohm (500k Ohm minimum)
- Output Impedance: 10k Ohm

The Mesa Boogie Tone-Burst pedal is designed to be used with a shielded cable of good quality for instrument input and output to minimize degradation of sound. It can be powered by a 9VDC battery or an external 9VDC power supply. The pedal also features true bypass switching for maintaining the integrity of the user's guitar tone when the pedal is not engaged.
