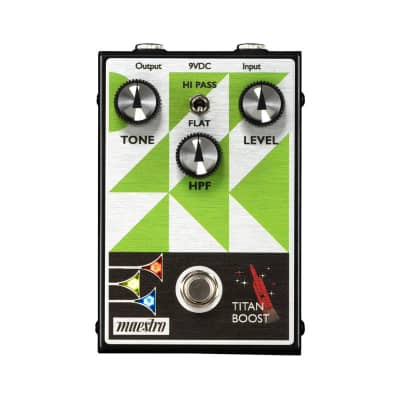

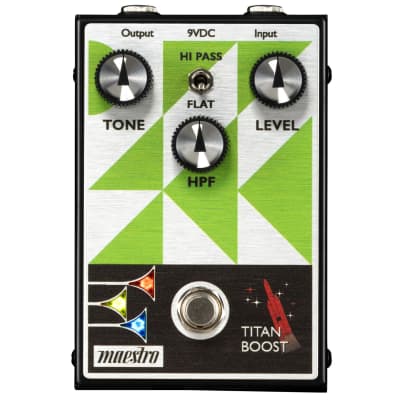

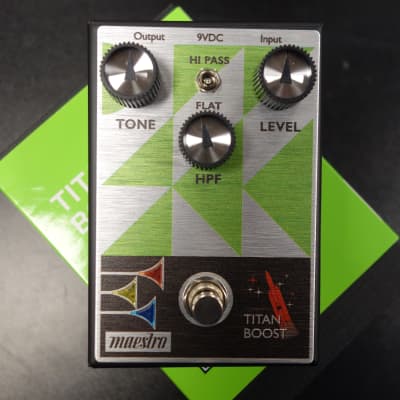

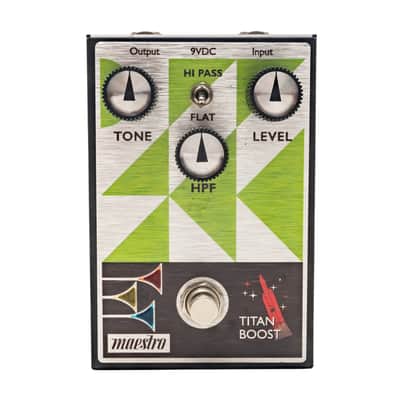

Titan Boost Pedal

The Maestro Titan Boost pedal provides over 25 dB of clean boost, capable of driving any tube amp into natural overdrive. It is designed to be the ultimate tone-sculpting boost, featuring a classic Tone control and a variable HI-Pass filter to dial out high-frequency shrillness and tame low-end muddiness. The pedal creates a perfect boosted tone regardless of guitar, pickups, or pickup switch position.

Specifications:
- Controls: Tone, HPF, and Level
- Switches: True Bypass footswitch, Flat/Hi-Pass Mode toggle switch
- LED Indicators: Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
- Signal Processing: All-Analog
- Power Requirements: 9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)
- Current Draw: 38.6 mA
- Power On Switch: Incorporated into the input jack
- Input Impedance: 400 kOhms
- Output Impedance: 280 Ohms
- Switching: True Bypass
- Dimensions: 5.04” x 3.45” x 2.50” (128.0 mm x 87.6 mm x 63.5 mm)
- Weight: Net: 1.20 lb. (544.3 gm), Gross: 1.56 lb. (707.6 gm)

The true bypass footswitch triggers the LED lights in the Maestro logo when the effect is active, providing visual feedback to the user. The pedal is suitable for various musical applications, offering precise tone control and boosting capabilities.
