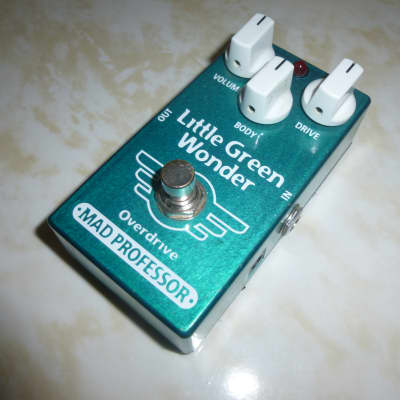

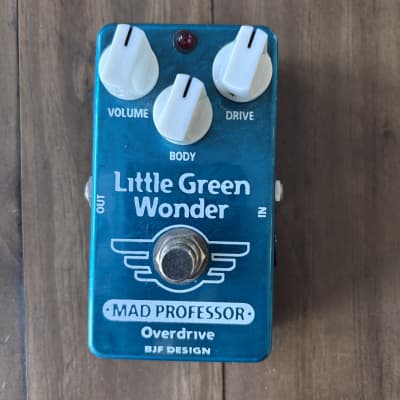

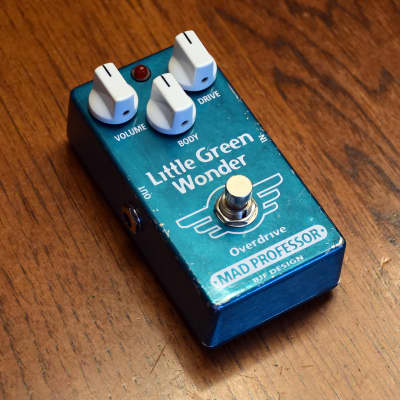

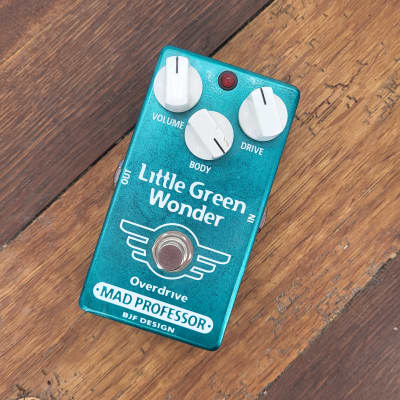

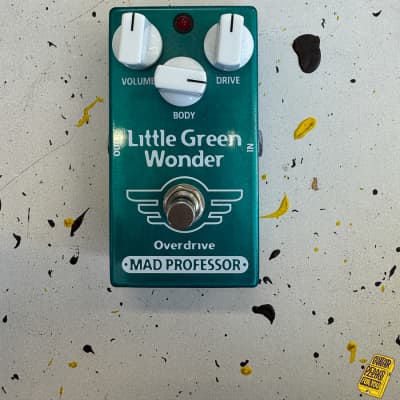

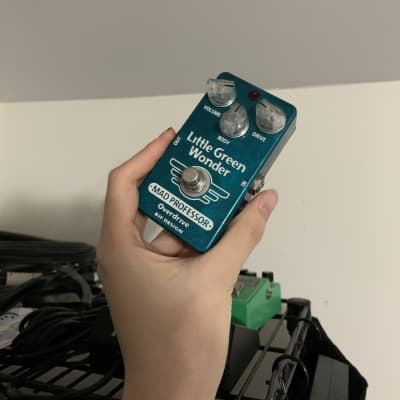

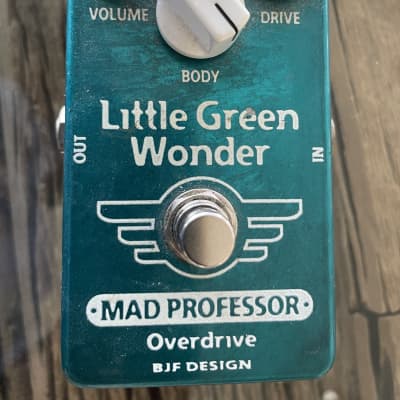

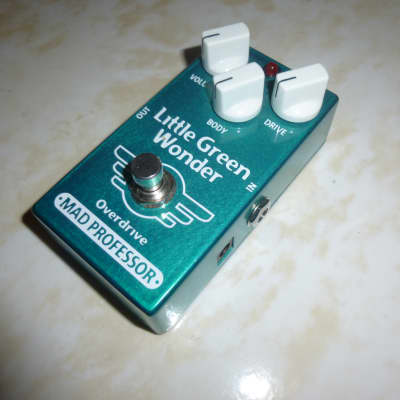

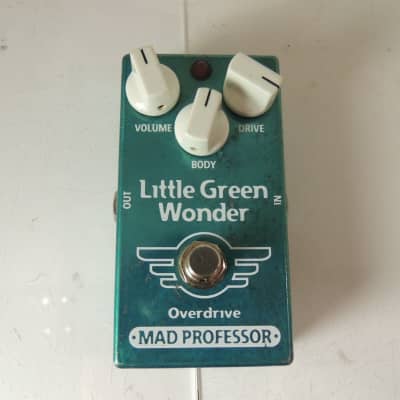

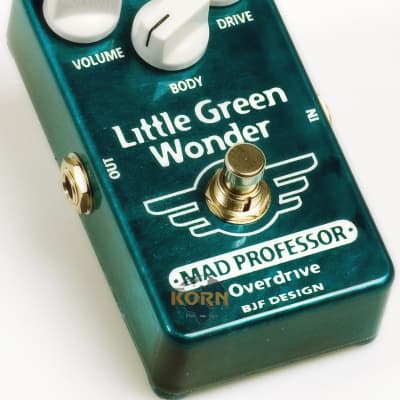

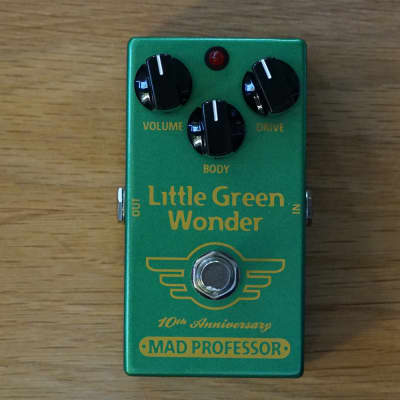

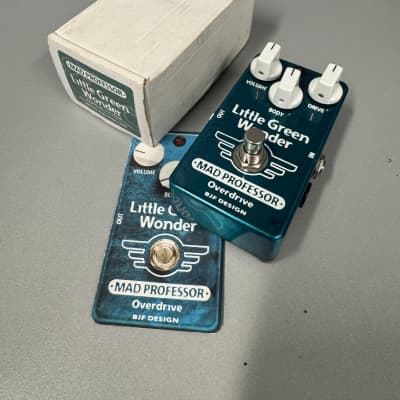

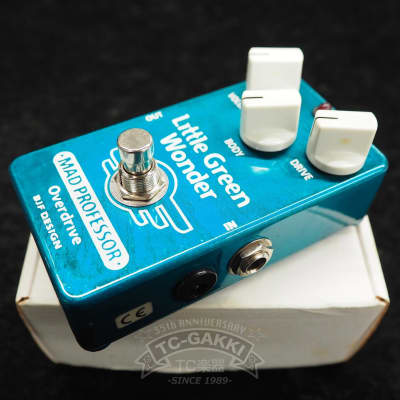

Little Green Wonder

The Little Green Wonder by Mad Professor is a premium quality classic blues/rock pedal designed to work well with complex overdriven amp sounds. It is a low compression, high headroom overdrive with high output. The pedal is offered in both lower-priced PCB-model and hand-wired versions, both sharing the same specs and tone.

Key Features:
- Low compression, high headroom overdrive with high output
- Body knob for adjusting low-mid content and treble
- Stackable overdrive that can be placed anywhere in the pedal chain
- Reduced compression associated with this type of circuit
- Works well with amps and other pedals with complexity or compression
- Suitable for use with humbuckers, addressing bass loss and separated sounds
- Can be used as an overdrive to already distorting amplifiers or downstream pedals
- Can function as a filter when feeding with fuzz pedals
- Can be used as a light overdrive for breaking up sounds

Technical Specifications:
- Input Impedance (Z in at 1kHz): Approximately 500K
- Output Impedance (Pout 1kHz in 50k): Approximately 0uW70 RMS
- Max Load: Approximately 10K
- Max Output: 3V peak
- Max Current Consumption: 4mA at 9V
- Upper Frequency -3dB: Approximately 10KHz
- Max Gain at 1KHz: Approximately 58 dB
- Max Input Signal: 3V peak
- Supply Voltage Range: 7V5-18V
- Complete Bypass (True Bypass)

Power Requirements:
- 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve

The Little Green Wonder is a versatile overdrive pedal suitable for a wide range of musical applications, offering flexibility and high-quality performance.
