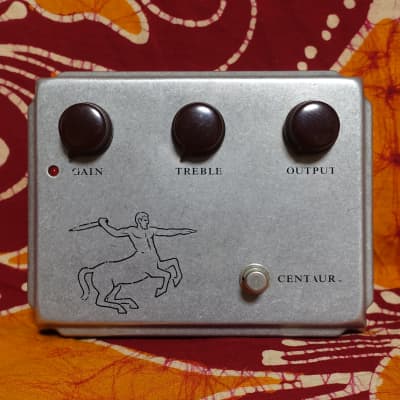

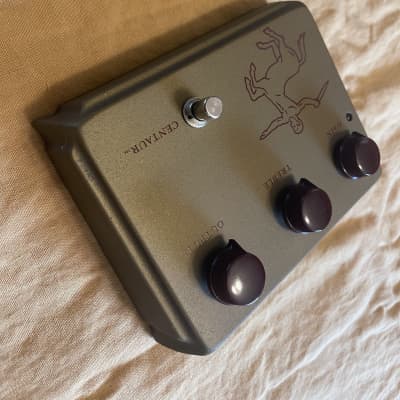

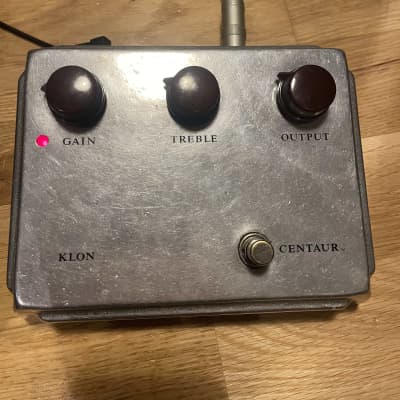

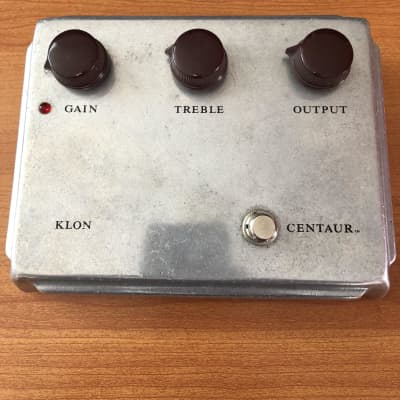

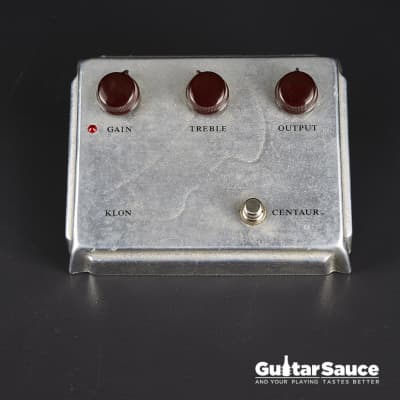

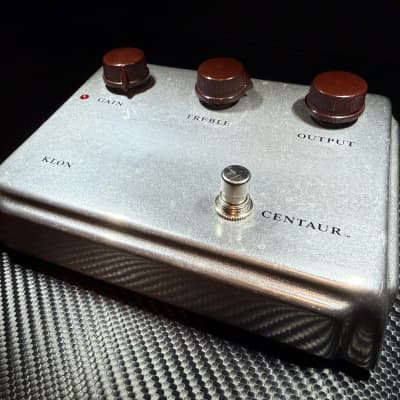

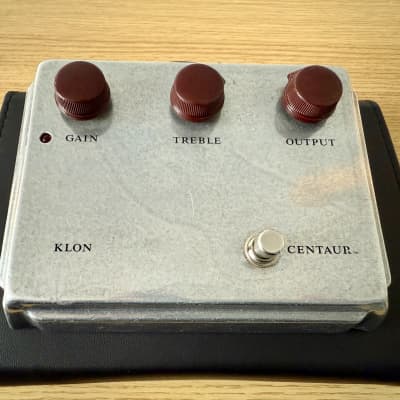

Centaur Overdrive

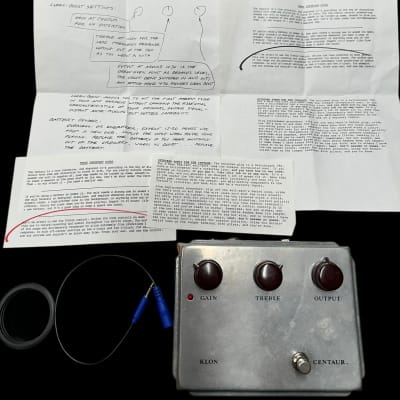

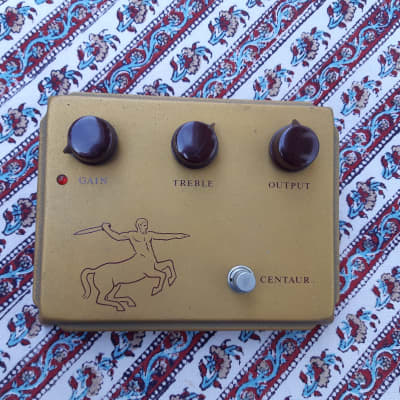

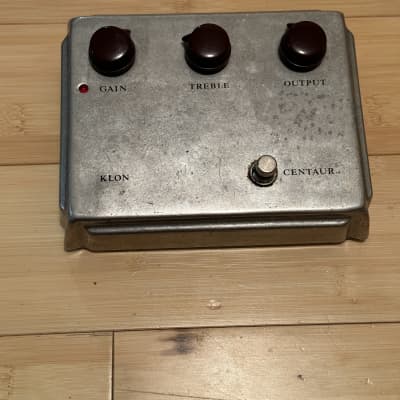

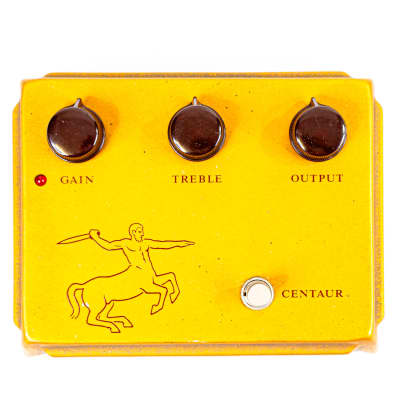

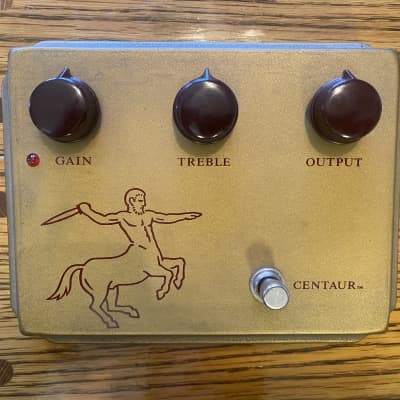

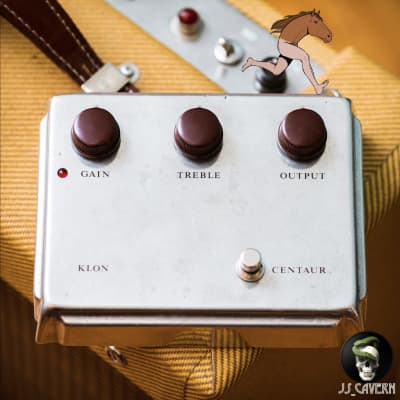

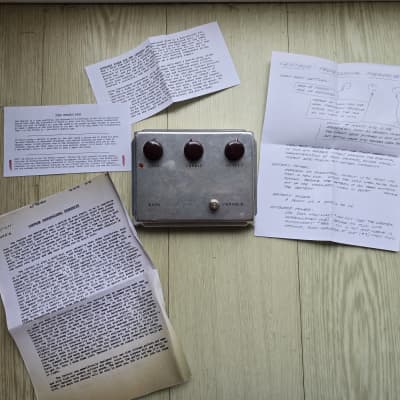

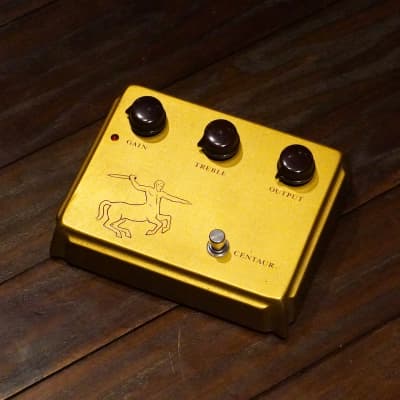

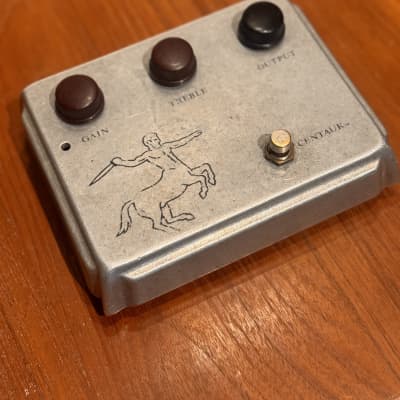

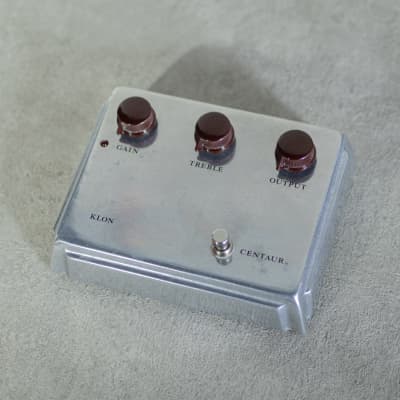

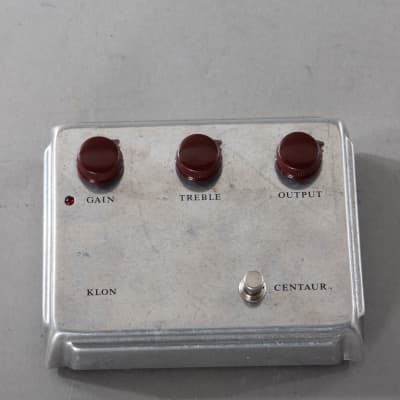

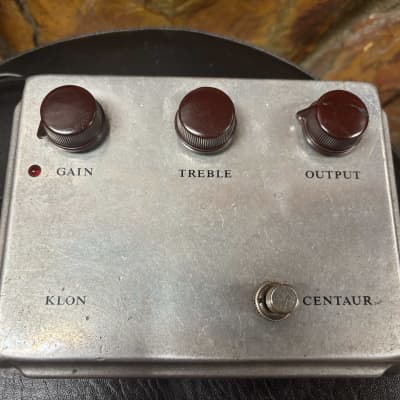

The Klon Centaur Overdrive is an iconic pedal known for its harmonically rich distortion and unique design. Developed by American engineer Bill Finnegan, the Centaur aimed to recreate the distortion of a guitar amplifier at high volume while maintaining a "big, open" sound with a hint of tube clipping. The pedal features germanium diodes and custom-made components, including the cast enclosure, knobs, and pots.

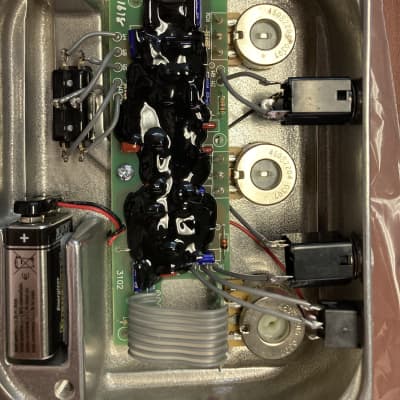

The technical specifications for the Klon Centaur Overdrive include the following components:

- Resistors: R1 10k, R2 1M, R3 100k, R4 560R, R5 5k1, R6 10k, R7 1k5, R8 1k5, R9 1k, R10 2k, R11 15k, R12 422k, R13 1k, R15 22k, R16 47k, R17 27k, R18 12k, R19 15k, R20 392k, R21 1k8, R22 100k, R23 4k7, R24 100k, R25 560R, R26 68k, R27 68k, R28 100k, R29 27k, R30 27k
- Semiconductors: IC1 TL072, IC2 TL072, IC3 TC1044SCPA, D1, D2 Ge, D3, D4 1N4002, Z1 1N4742, LED 5MM
- Potentiometers: Treble 10kB, Output 10kB, Gain 100kB dual
- Capacitors: C1 100n, C2 4u7 electro, C3 100n, C4 68n, C5 68n, C6 390n, C7 82n, C8 390pF MLCC, C9 1uF film, C10 1uF film, C11 2n2, C12 27n, C13 820pF MLCC, C14 3n9, C15 4u7 electro, C16 1uF tantalum, C17 47uF electro, C18 47uF electro, C19 1uF electro, C20 1uF electro, C21 1uF electro, C22 1uF electro

The pedal's design includes a treble control for EQ adjustment, an output control for overall effect volume, and a gain control for blending clean and dirty signals. Additionally, modifications and experimentation can be performed, such as changing tone capacitors, socketing diodes and op-amps, and implementing a bass guitar mod.

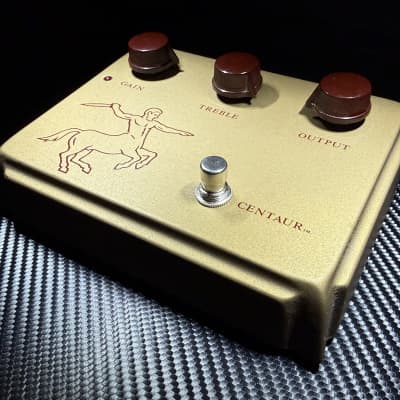

The Klon Centaur has inspired numerous clones by different manufacturers, and its legacy continues to influence the guitar effects pedal industry. The pedal has been used by renowned guitarists and continues to be highly sought after in the market.
