Centaur Overdrive

The Klon Centaur Overdrive is an iconic pedal known for its harmonically rich distortion and unique design. Developed by American engineer Bill Finnegan, the Centaur aimed to recreate the distortion of a guitar amplifier at high volume while maintaining a "big, open" sound with a hint of tube clipping. The pedal features germanium diodes and custom-made components, including the cast enclosure, knobs, and pots. The technical specifications for the Klon Centaur Overdrive include the following components: \- Resistors: R1 10k, R2 1M, R3 100k, R4 560R, R5 5k1, R6 10k, R7 1k5, R8 1k5, R9 1k, R10 2k, R11 15k, R12 422k, R13 1k, R15 22k, R16 47k, R17 27k, R18 12k, R19 15k, R20 392k, R21 1k8, R22 100k, R23 4k7, R24 100k, R25 560R, R26 68k, R27 68k, R28 100k, R29 27k, R30 27k \- Semiconductors: IC1 TL072, IC2 TL072, IC3 TC1044SCPA, D1, D2 Ge, D3, D4 1N4002, Z1 1N4742, LED 5MM \- Potentiometers: Treble 10kB, Output 10kB, Gain 100kB dual \- Capacitors: C1 100n, C2 4u7 electro, C3 100n, C4 68n, C5 68n, C6 390n, C7 82n, C8 390pF MLCC, C9 1uF film, C10 1uF film, C11 2n2, C12 27n, C13 820pF MLCC, C14 3n9, C15 4u7 electro, C16 1uF tantalum, C17 47uF electro, C18 47uF electro, C19 1uF electro, C20 1uF electro, C21 1uF electro, C22 1uF electro The pedal's design includes a treble control for EQ adjustment, an output control for overall effect volume, and a gain control for blending clean and dirty signals. Additionally, modifications and experimentation can be performed, such as changing tone capacitors, socketing diodes and op-amps, and implementing a bass guitar mod. The Klon Centaur has inspired numerous clones by different manufacturers, and its legacy continues to influence the guitar effects pedal industry. The pedal has been used by renowned guitarists and continues to be highly sought after in the market.

Centaur

The Klon Centaur is an overdrive pedal designed by American engineer Bill Finnegan between 1994 and 2008. The pedal was created to recreate the harmonically rich distortion of a guitar amplifier at a high volume, aiming for a "big, open" sound with a "hint of tube clipping" that would not sound like a pedal was being used. The Klon Centaur features germanium diodes in its circuit and was coated in epoxy resin to make it harder to replicate. The Klon Centaur measures 170x130mm / 6.6″x5″ inches at the base and has a large-sized design. It operates with a 9V battery or an external power supply with center negative (optional). The pedal is an overdrive type with a single channel and does not support stereo operation. It features an LED display and is considered a boutique effect. In 2014, Finnegan redesigned the Centaur as the Klon KTR, aiming to create a straightforward design that could be built by a contracted manufacturing firm and would be easy to repair while preserving the Centaur sound. The Klon KTR took two years to design and was sold for $269. The Klon Centaur has been used by renowned guitarists such as Jeff Beck, John Mayer, Joe Perry, Nels Cline, Matt Schofield, and Ed O'Brien. Used Centaurs have been reported to sell for between $1,900 and $2,500 USD. The Klon Centaur has inspired numerous clones by different manufacturers, although Finnegan expressed skepticism that they could replicate the sound due to factors including the rarity of the Centaur's germanium diodes.

Centaur Gold Horsie

Centaur Overdrive

The Klon Centaur Overdrive is an iconic pedal known for its harmonically rich distortion and unique design. Developed by American engineer Bill Finnegan, the Centaur aimed to recreate the distortion of a guitar amplifier at high volume while maintaining a "big, open" sound with a hint of tube clipping. The pedal features germanium diodes and custom-made components, including the cast enclosure, knobs, and pots. The technical specifications for the Klon Centaur Overdrive include the following components: \- Resistors: R1 10k, R2 1M, R3 100k, R4 560R, R5 5k1, R6 10k, R7 1k5, R8 1k5, R9 1k, R10 2k, R11 15k, R12 422k, R13 1k, R15 22k, R16 47k, R17 27k, R18 12k, R19 15k, R20 392k, R21 1k8, R22 100k, R23 4k7, R24 100k, R25 560R, R26 68k, R27 68k, R28 100k, R29 27k, R30 27k \- Semiconductors: IC1 TL072, IC2 TL072, IC3 TC1044SCPA, D1, D2 Ge, D3, D4 1N4002, Z1 1N4742, LED 5MM \- Potentiometers: Treble 10kB, Output 10kB, Gain 100kB dual \- Capacitors: C1 100n, C2 4u7 electro, C3 100n, C4 68n, C5 68n, C6 390n, C7 82n, C8 390pF MLCC, C9 1uF film, C10 1uF film, C11 2n2, C12 27n, C13 820pF MLCC, C14 3n9, C15 4u7 electro, C16 1uF tantalum, C17 47uF electro, C18 47uF electro, C19 1uF electro, C20 1uF electro, C21 1uF electro, C22 1uF electro The pedal's design includes a treble control for EQ adjustment, an output control for overall effect volume, and a gain control for blending clean and dirty signals. Additionally, modifications and experimentation can be performed, such as changing tone capacitors, socketing diodes and op-amps, and implementing a bass guitar mod. The Klon Centaur has inspired numerous clones by different manufacturers, and its legacy continues to influence the guitar effects pedal industry. The pedal has been used by renowned guitarists and continues to be highly sought after in the market.

KTR Centaur

The Klon KTR Centaur is an overdrive pedal designed to provide low to medium overdrive and can also be used as a clean boost. It is a reissue of the legendary Klon Centaur, which was last produced in 2009. The KTR Overdrive was developed and tested by Bill Finnegan and is the result of a meticulous refinement of the original. Specifications: \- Effect Type: Overdrive \- Technology: Analog \- Mono / Stereo: Mono In, Mono Out \- Controls: Gain, Tone, Volume \- Switches: True Bypass/Buffered Bypass \- Bypass Mode: True bypass or buffered bypass \- Power Supply: 9VDC, Center negative (optional) \- Operation with 9V battery or external power supply \- Dimensions (WxHxD/cm): 12.0 x 4.0 x 9.5 \- Weight: 0.5 kg \- Boutique Effect: Yes \- Country of Origin: USA The pedal features three simple controls - Gain, Tone, Output (GTO) and a switchable buffer on/off. It is designed to be extremely neutral and not influence the basic sound of the instrument or amplifier. The KTR Centaur is known for its creamy and dynamic overdrive, offering a wide range of sounds.

Centaur

The Klon Centaur is an overdrive pedal designed by American engineer Bill Finnegan between 1994 and 2008. The pedal was created to recreate the harmonically rich distortion of a guitar amplifier at a high volume, aiming for a "big, open" sound with a "hint of tube clipping" that would not sound like a pedal was being used. The Klon Centaur features germanium diodes in its circuit and was coated in epoxy resin to make it harder to replicate. The Klon Centaur measures 170x130mm / 6.6″x5″ inches at the base and has a large-sized design. It operates with a 9V battery or an external power supply with center negative (optional). The pedal is an overdrive type with a single channel and does not support stereo operation. It features an LED display and is considered a boutique effect. In 2014, Finnegan redesigned the Centaur as the Klon KTR, aiming to create a straightforward design that could be built by a contracted manufacturing firm and would be easy to repair while preserving the Centaur sound. The Klon KTR took two years to design and was sold for $269. The Klon Centaur has been used by renowned guitarists such as Jeff Beck, John Mayer, Joe Perry, Nels Cline, Matt Schofield, and Ed O'Brien. Used Centaurs have been reported to sell for between $1,900 and $2,500 USD. The Klon Centaur has inspired numerous clones by different manufacturers, although Finnegan expressed skepticism that they could replicate the sound due to factors including the rarity of the Centaur's germanium diodes.

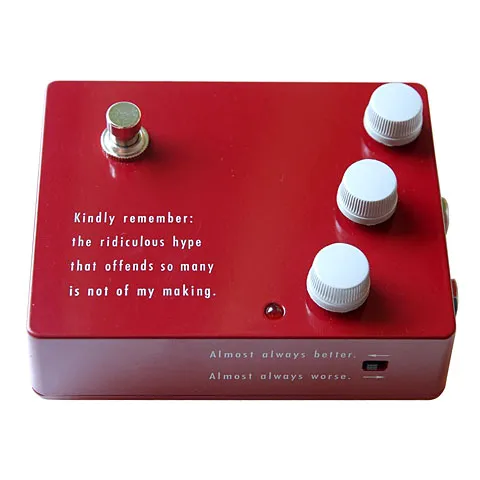

KTR

The Klon KTR is a reissue of the legendary Klon Centaur overdrive pedal, designed by the original manufacturer, Bill Finnegan. It is a versatile pedal that can produce transparent boost to warm, rich overdrive tones, with a signature mid-range boost. The pedal is designed to overdrive the amp further into breakup, producing a lively and dynamic lead tone. Key Features: \- Overdrive Mode: The pedal offers creamy overdrive tones with the Gain control turned up, providing a wide range of overdriven sounds. \- Clean-boost Mode: With the Gain control at its minimum setting, the pedal operates in clean-boost mode, offering enormous headroom without generating its own distortion. \- Slide Switch: The pedal features a switch to choose between buffered output or true-bypass output, allowing users to control the signal presence. \- Power Options: The KTR is powered by a regulated 9-volt power supply and does not have the option for battery power. It is important not to exceed 9 volts to avoid damage to the circuitry. \- Warranty: The pedal comes with a three-year warranty for parts and labor, provided there is no evidence of abuse or attempted modification. Technical Specifications: \- Effect Type: Overdrive \- Technology: Analog \- Mono / Stereo: Mono In, Mono Out \- Controls: Gain, Tone, Volume \- Switches: True Bypass/Buffered Bypass \- Power Supply: 9 VDC, Center negative \- Battery Type: 9 V Block (no longer supported) \- Housing Size: Standard \- Dimensions (WxHxD): 120 x 40 x 95 mm \- Weight: 0.5 kg \- Boutique Effect: Yes \- Country of Origin: USA

Centaur Gold Horsie
