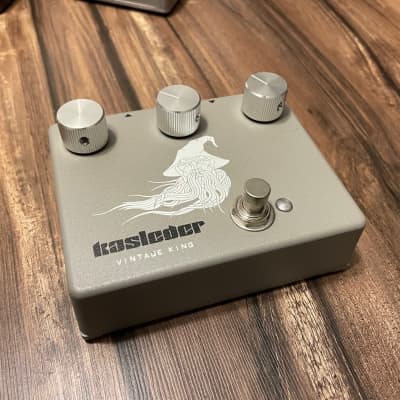

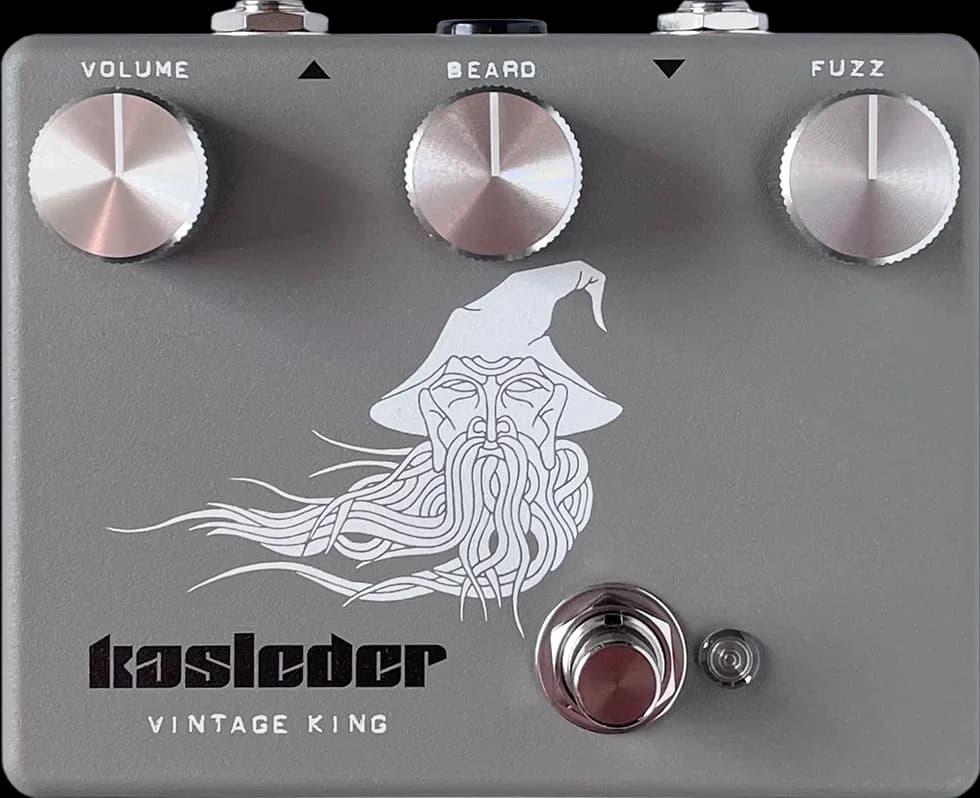

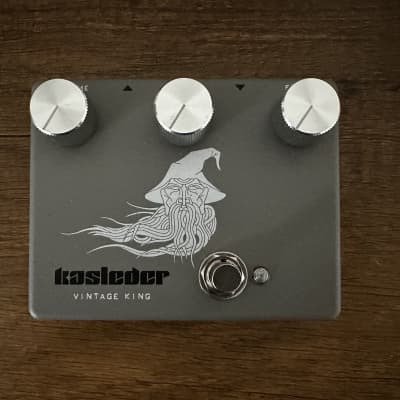

Vintage King

The Vintage King by Kasleder is a two-transistor fuzz/overdrive pedal designed to deliver a pleasant fuzz texture across the entire guitar frequency spectrum. It is based on the most famous, old, two-transistor drive pedal topology, offering a versatile range of tones from flat boost to treble booster, smooth overdrive to classic crunch distortion, and full fuzz. The pedal features three simple but effective controls: Volume, Beard, and Fuzz.

Technical Specifications:
- NOS Vintage Si Transistors
- Internal BIAS Trim Pot
- Panasonic & Würth High-End Audio Caps
- Panasonic High-End Film Cap
- Lumberg & Neutrik Connectors
- True Bypass
- Power: Battery or DC Powered (10 mA)
- Input Impedance: 2.2MΩ
- Output Impedance: 100Ω
- Dimensions: 120 x 97 x 52 mm
- Weight: 330 g
- Power supply: 9V battery or 9V DC mains adapter (not included)
- Power consumption: 10 mA

The Vintage King is designed to offer a modern flavor while retaining the unique vintage feel of the circuits that inspired it. It is known for its usability, versatility, and the perfect balance between drive saturation and cleanup reaction. Each pedal is meticulously crafted to ensure consistent performance.

The use of DC voltage higher than 9V or AC voltage will damage the circuit.

The Vintage King by Kasleder is a highly regarded pedal known for its high- quality components, versatile range of tones, and meticulous craftsmanship.
