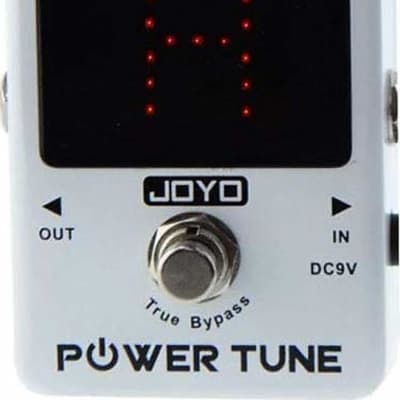

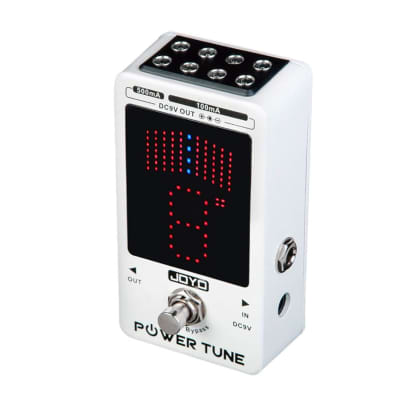

JF-18R Power Tune

The Joyo JF-18R Power Tune is a combination power supply and tuner pedal designed to provide essential tools for guitarists' pedalboards. The POWER section features a filtered low noise output with short circuit and over current protection. It offers six outputs providing standard 100mA power for most standard analog pedals, along with two additional outputs capable of delivering 500mA, suitable for demanding digital effects units.

The TUNE section features a large LED screen with a rapid chromatic tuning algorithm, ensuring fast and responsive note detection for guitar and bass players. The tuner section also features True Bypass circuitry to minimize signal loss.

Technical Specifications:
- Input: 1/4" mono port
- Output: 1/4" mono port
- Tuning Range: 12Hz-4186Hz
- Working Voltage: DC9V (Center Negative)
- Current Draw: 120mA
- Isolated outputs: 8 (6 x 100mA, 2 x 500mA)

The JF-18R Power Tune is designed to save space and minimize pedal power noise issues, making it a versatile and practical addition to any guitarist's setup.
