Prism

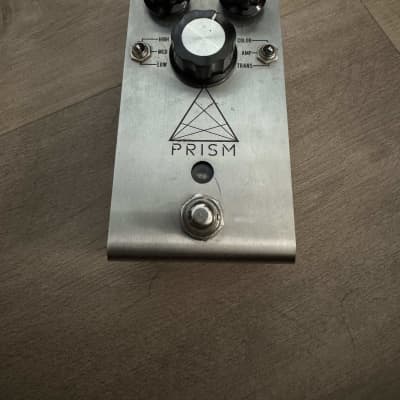

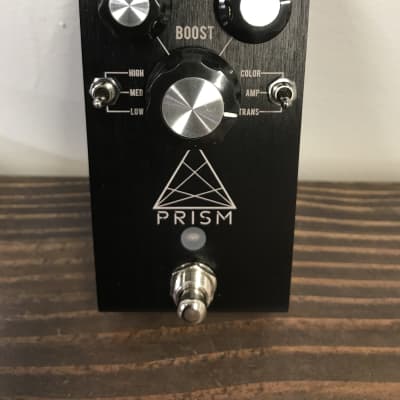

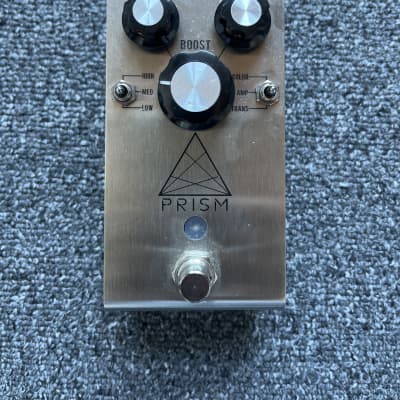

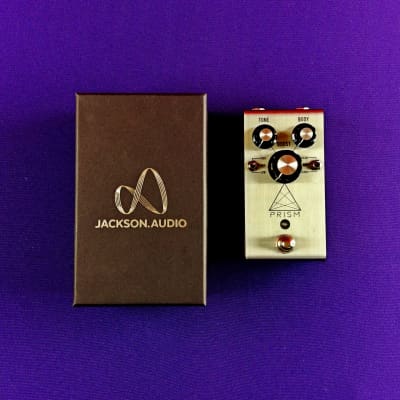

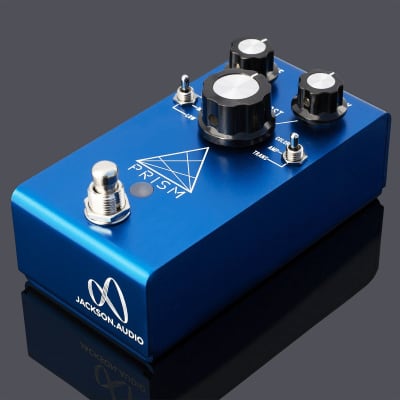

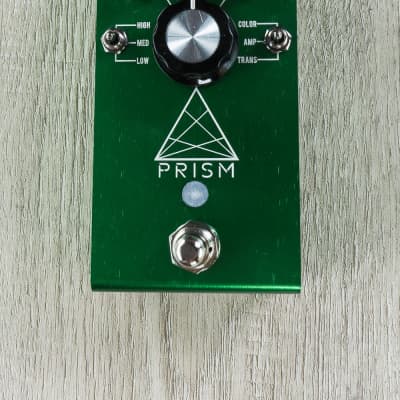

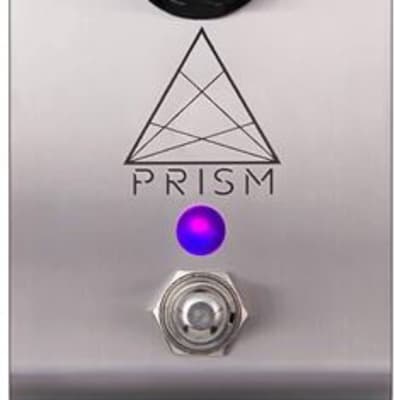

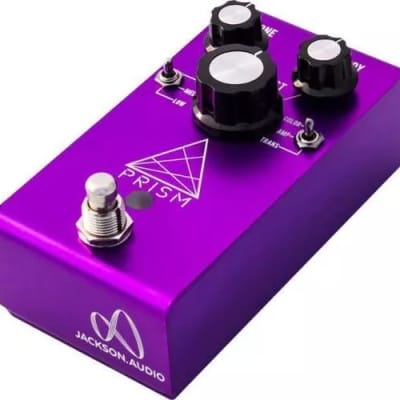

The Prism by Jackson Audio is a versatile tone shaping tool designed to provide a comprehensive range of features for guitarists. Here are the technical specifications and details:

- Dimensions: 2.5" x 4.875"

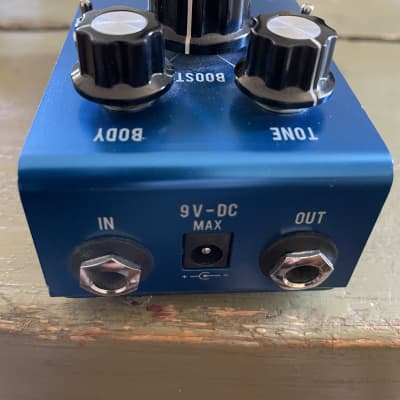

- Required Power: 9V DC (center negative) minimum of 100mA
- The PRISM is a buffer, boost, preamp, EQ, and overdrive all in one compact stainless steel enclosure.

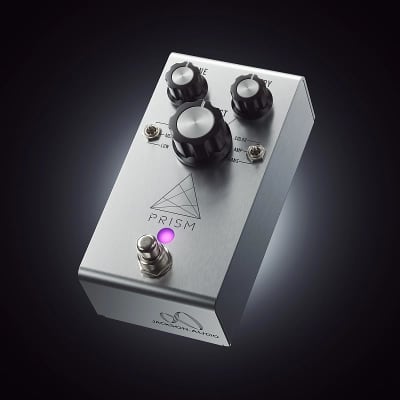

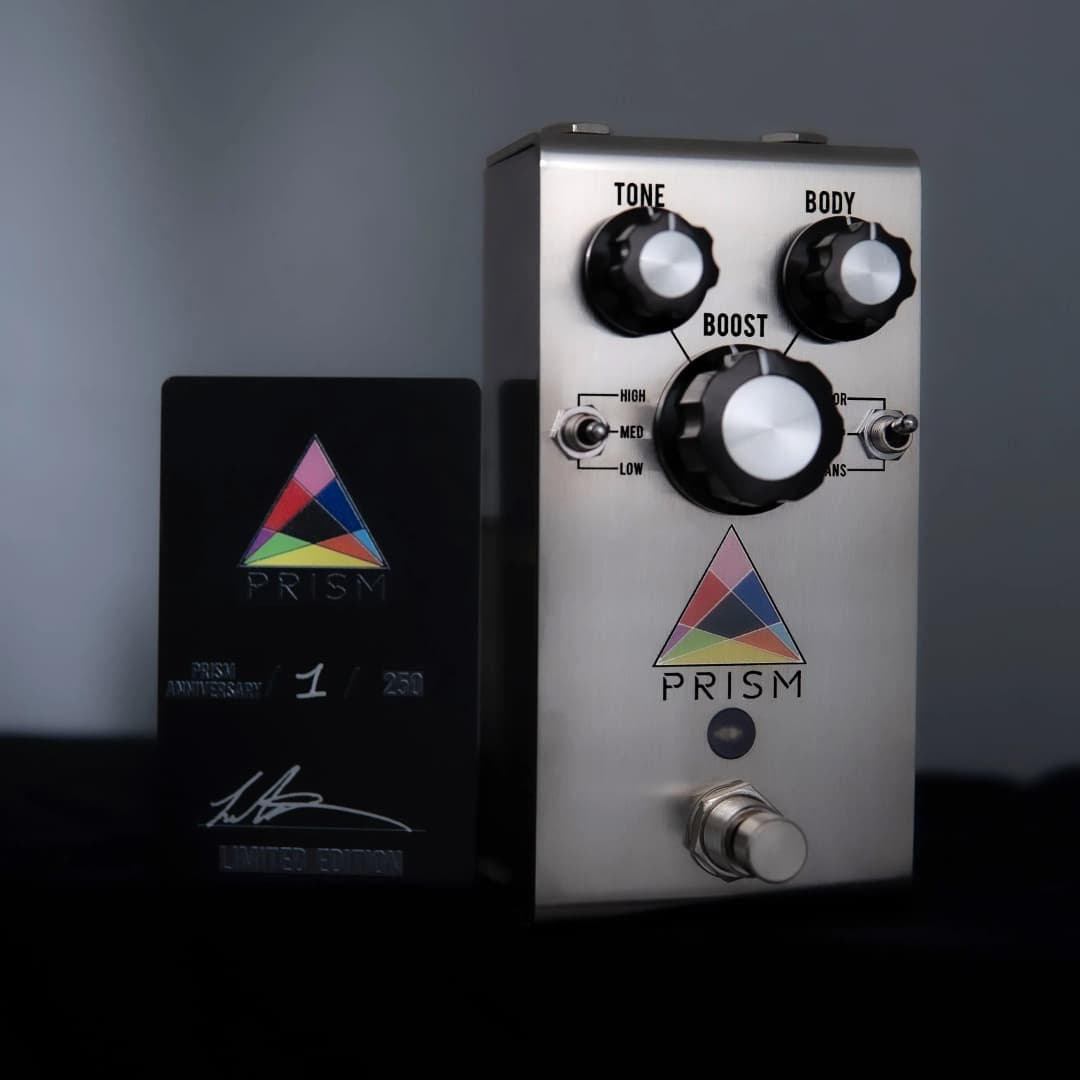

- It features a custom designed stainless steel enclosure with laser engraved artwork.
- The active EQ provides +/-15dB boost/cut to high frequencies, allowing for precise tonal control without affecting the low frequencies.
- The boost/preamp section includes three distinct boost circuits: transparent clean boost (TRANS), vacuum tube amp emulation (AMP), and vintage silicon treble booster style boost (COLOR).
- Each boost/preamp circuit is discrete and contained in its own true bypass loop, ensuring no compromise in sound quality.
- The PRISM is a true bypass pedal with silent switching circuitry and relays with a soft touch momentary contact footswitch for reliable operation.
- It includes a high current buffer at the end to strengthen the signal and preserve tone integrity, regardless of pedalboard complexity or cable length.

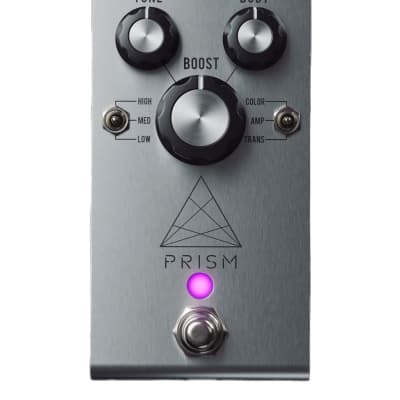

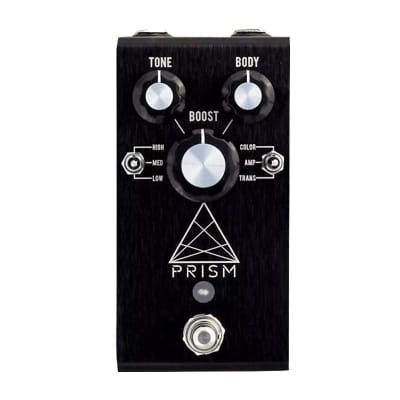

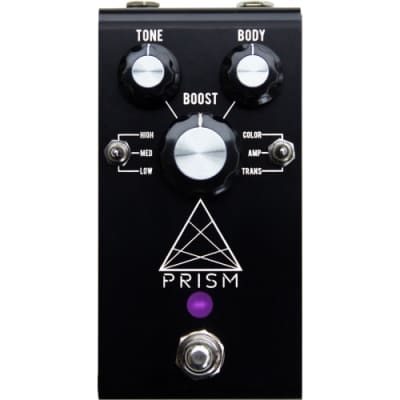

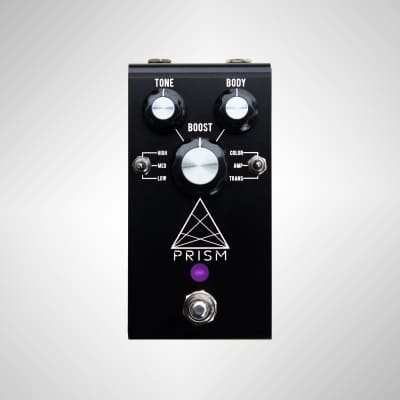

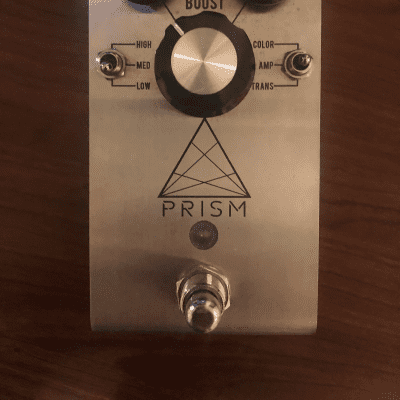

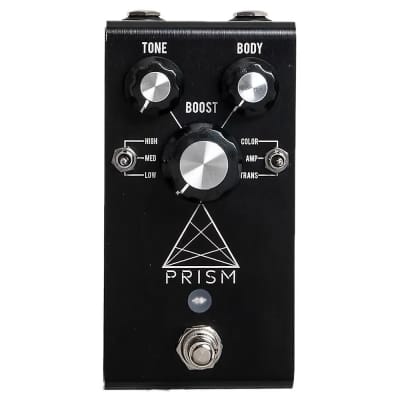

The PRISM's controls include:
- TONE CONTROL: +/-15dB boost/cut to high frequencies
- PRE GAIN SWITCH: Selects between 3 varying levels of gain for each boost circuit (HIGH, MED, LOW)
- BYPASS SWITCH: Turns the PRISM ON/OFF and enters programming mode
- BODY CONTROL: +/-15dB boost/cut to low frequencies
- BOOST CONTROL: Sets the overall level of boost
- CIRCUIT SELECT: Selects between the 3 boost circuits

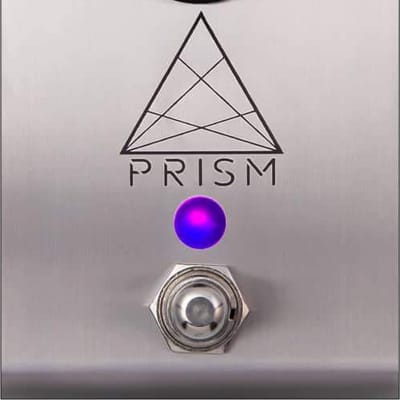

- INDICATOR LIGHT: Indicates the ON/OFF status of the PRISM and changes colors to show the level of boost selected

The PRISM is recommended to be placed first in the signal chain for optimal performance.
