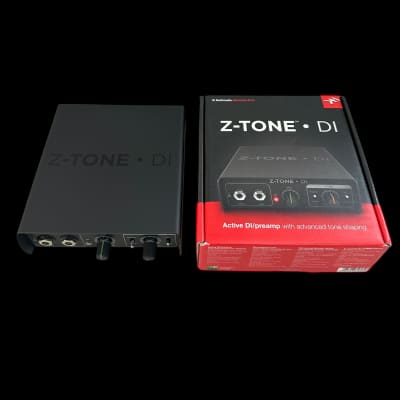

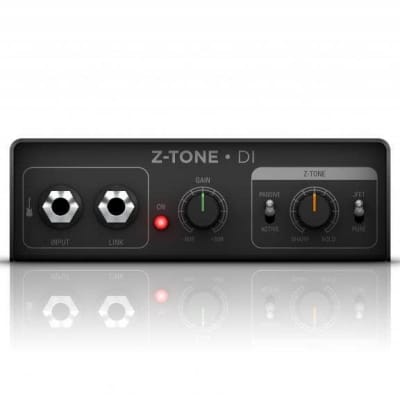

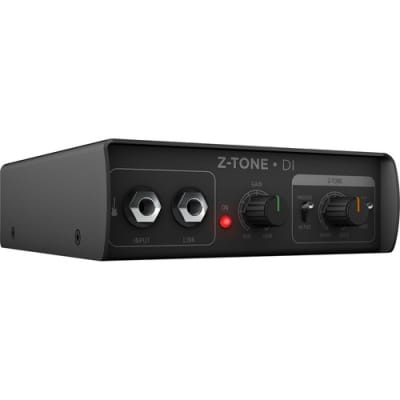

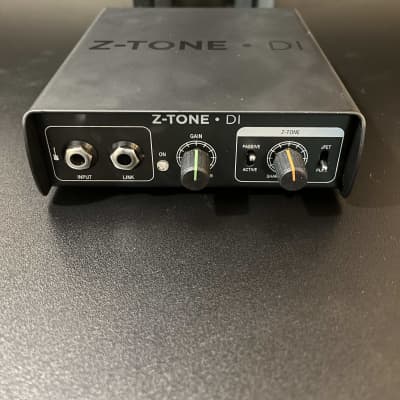

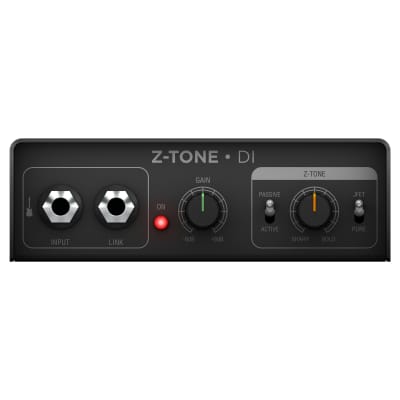

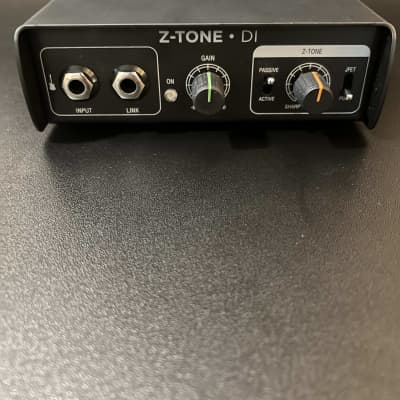

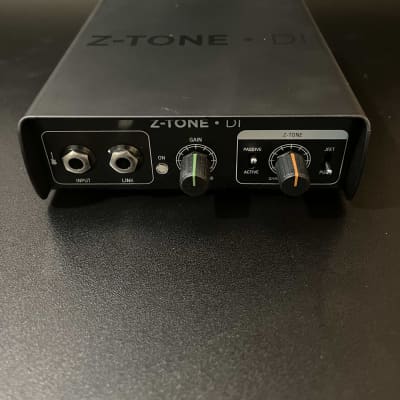

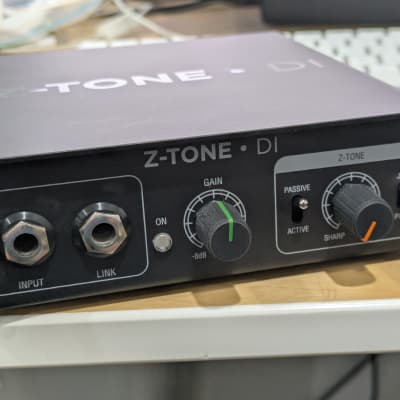

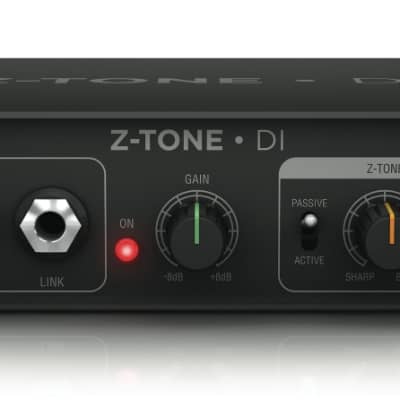

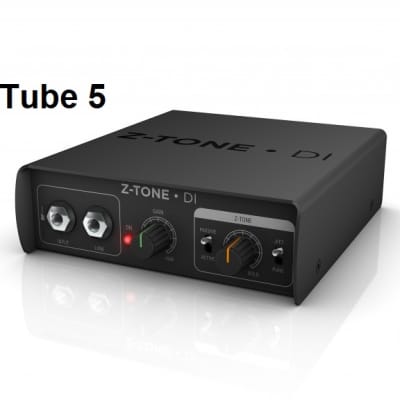

Z-TONE DI

The Z-TONE DI by IK Multimedia is a versatile direct box, preamp, and buffer designed to enhance the sound quality and workflow of guitar recording and live performances. Here are the technical specifications and features:

Topology:
- Ultra low noise, high bandwidth, and ultra-low distortion direct box, preamp, and buffer.
- Transformer-based galvanically isolated balanced output and electronically buffered low impedance unbalanced output.
- PURE and JFET input stages for total transparency or added harmonics.

Audio Specs:
- I/O Gain: Unitary, from 1/4” input JACK to both 1/4” and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position.

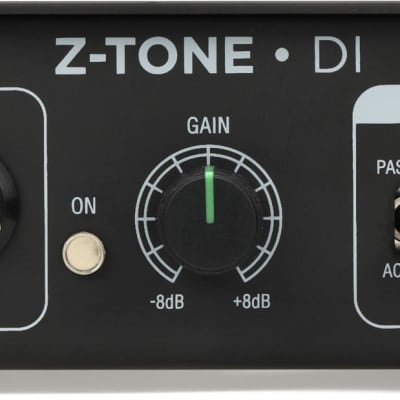

- Gain Range: From -8dB to +8dB.
- Input impedance - Z-TONE set on PASSIVE mode: Variable from 1MΩ down to 2.2kΩ.
- Input impedance - Z-TONE set on ACTIVE mode: Approx 20kΩ.
- Output impedance, unbalanced out: 56Ω.
- Output impedance, balanced out: 600Ω.
- Max input level before clipping: +13dBm when powered by 48V phantom, +9dBm when powered by 9V battery.
- PAD: -20dB.
- Dynamic Range: better than 114dB(A) for both outputs, input gain at 0dB.
- Total Harmonic Distortion, balanced output, 1kHz, +4dBm input: 0.0033% (PURE), 0.2% (JFET).
- Total Harmonic Distortion, unbalanced output, 1kHz, +4dBm input: 0.00055% (PURE), 0.2% (JFET).
- Frequency response: from 5Hz to 30kHz -1dB.
- Phase deviation: 0° +/-10° from 20Hz to 20kHz.

Power:
- Phantom power: +48V phantom on Balanced output.
- Battery power: 9V - not included.
- Current consumption from P48 phantom power source: 6.5mA.

Dimensions:
- Size: 13.7cm/5.39" x 15.8cm/6.22" x 4.5cm/1.77".
- Weight: 950g/33.56oz.

Key Features:
- Active/Passive pickup selector.
- PURE channel for transparent sound.
- JFET channel adds warmth & harmonics.
- Z-TONE variable impedance control creates a wide range of tones.
- 20 dB pad for extended operating range.
- Balanced & unbalanced outputs.

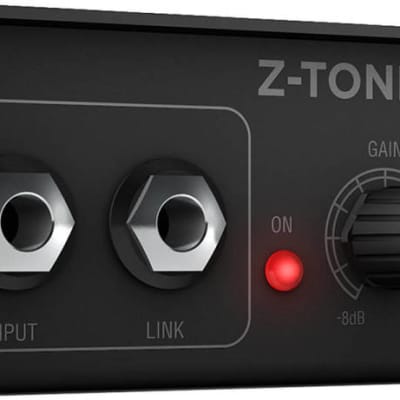

- Link out splits signal to amps & pedals.
- Ground lift switch eliminates buzz & hum.

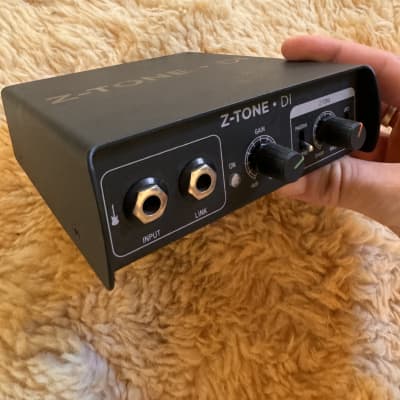

- Rugged, stage-ready metal housing.

The Z-TONE DI offers a comprehensive set of options for recording, live performances, and tone shaping, making it a valuable tool for guitarists and recording engineers alike.
