iRig Stomp I/O

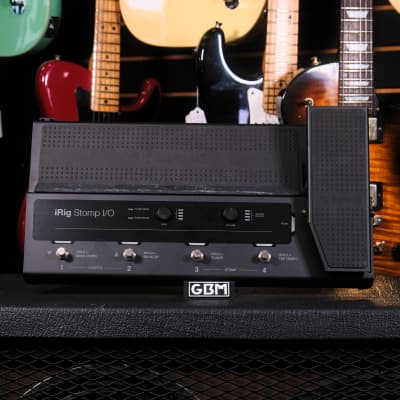

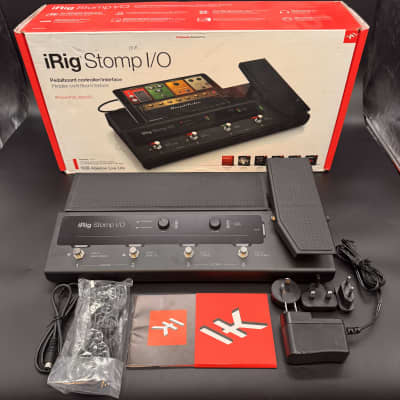

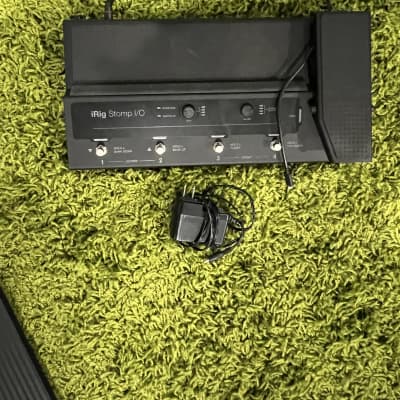

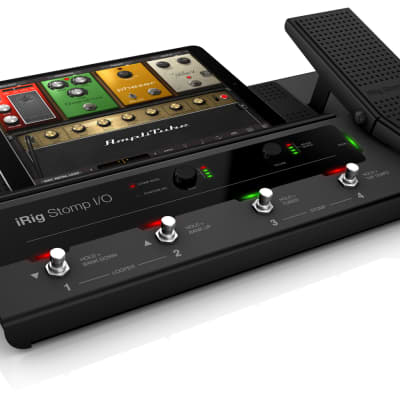

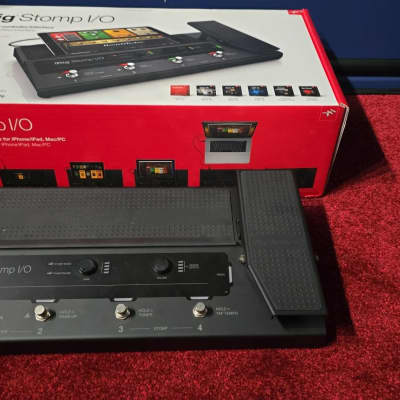

The iRig Stomp I/O by IK Multimedia is a USB pedalboard controller and audio interface designed for Mac, PC, and iOS devices. It features a sturdy and transportable design with dimensions of 41.5cm/16.3" x 21cm/8.5" x 7.2cm/2.83" and a weight of 3.2kg/7.1lb. The device is equipped with a 24-bit A/D and 24-bit D/A conversion, offering sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.

Key technical specifications include:
- Microphone Input: Balanced female 3-pin XLR, with phantom power of +48V ± 4V and a gain range of approximately 48 dB.
- Instrument Input: Unbalanced, Hi-Z, TS 1/4" Jack with a gain range of approximately 27dB.
- Stereo Headphone Output: 1/8" TRS Jack with a headphone output power of 100mW into 50Ohms.
- Stereo Line Output: 2x balanced female 1/4" TRS Jack with a maximum output level of +16 dBu into 600 Ohms balanced load.
- MIDI Input/Output: 2x 5-pin DIN connectors.

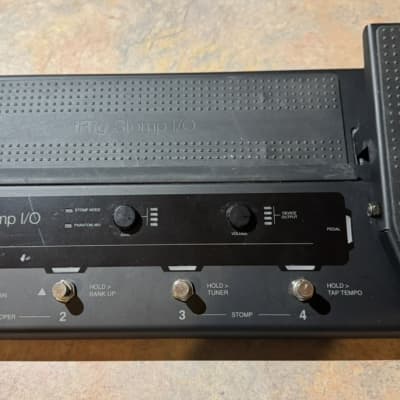

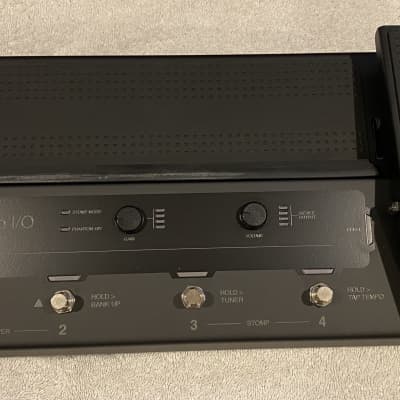

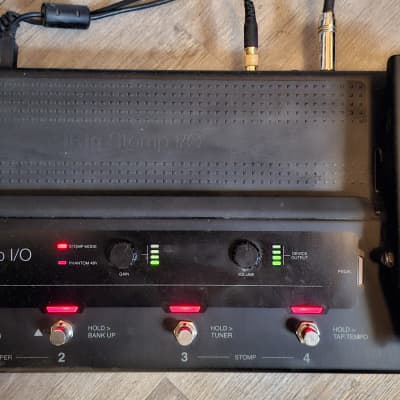

- Connections and Controls: Four metal foot-switches with indication LEDs, two analog potentiometers for Input GAIN and output VOLUME, continuous pedal with virtual switch, and more.

The iRig Stomp I/O is compatible with various iOS devices and is MFi certified. It is also compatible with Mac OS X 10.6 or later and Windows® with a free USB port. Additionally, it comes bundled with guitar, vocal processing, and recording software for both live and studio applications.

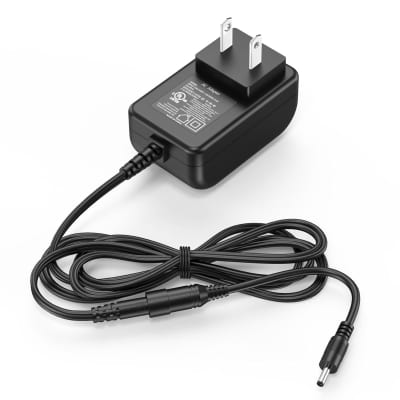

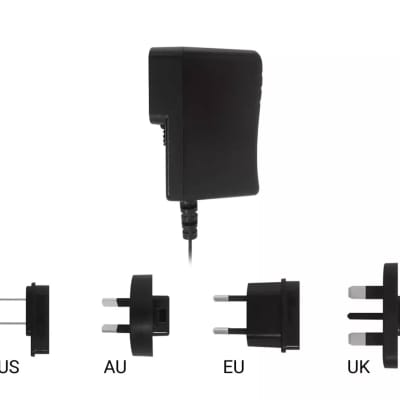

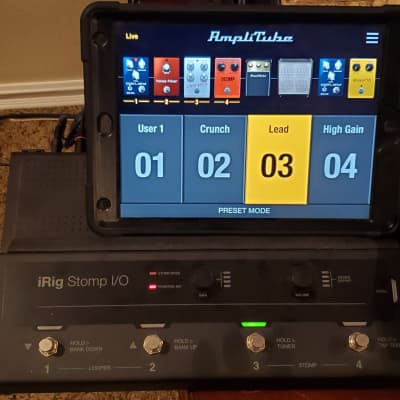

The device can be used as a standalone MIDI foot controller and integrates seamlessly with AmpliTube for Mac/PC and iOS, as well as with VocaLive for iOS. It is powered via USB or DC Adapter and features a rugged metal construction, making it suitable for both studio and live use.
