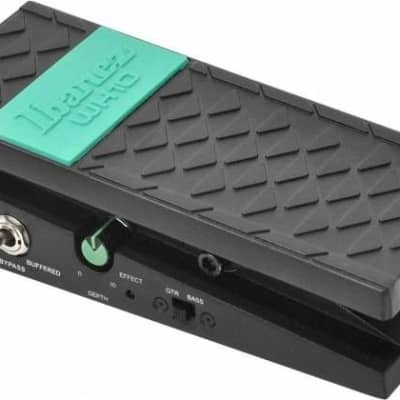

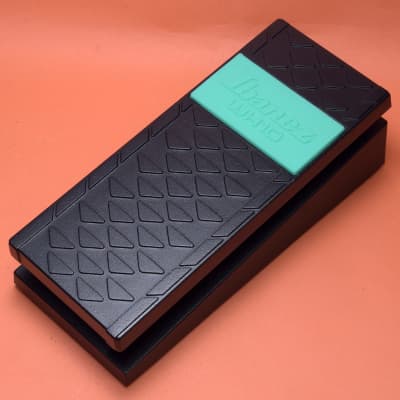

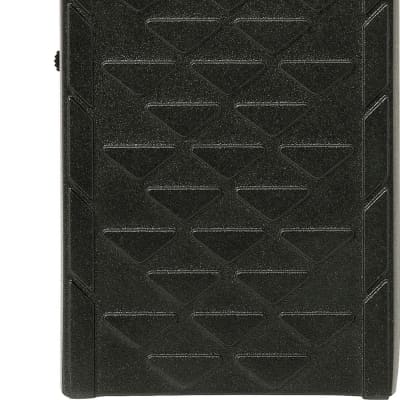

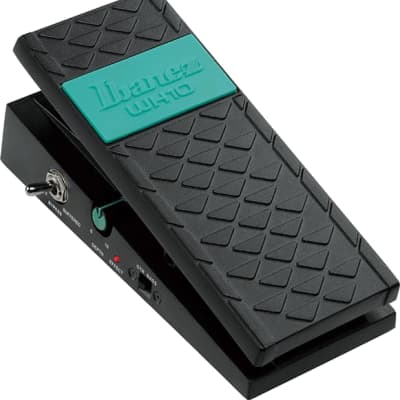

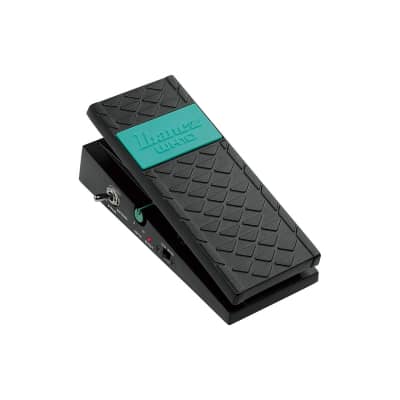

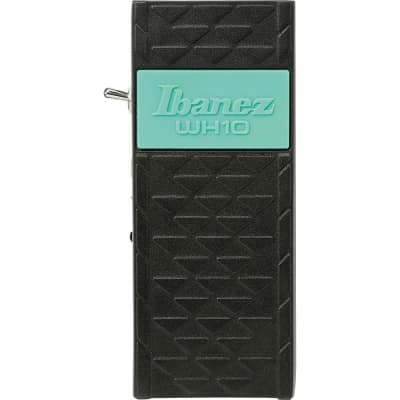

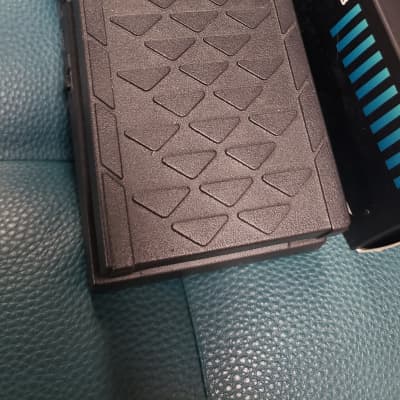

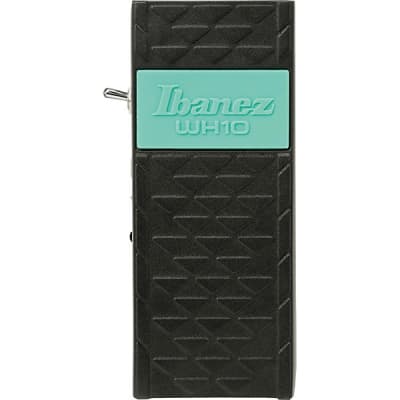

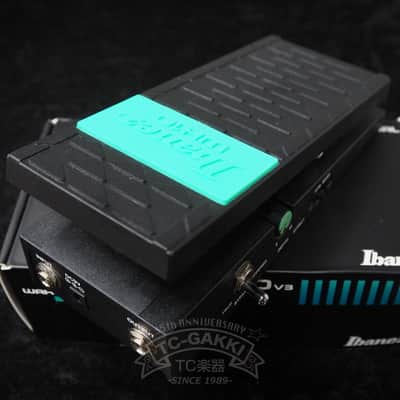

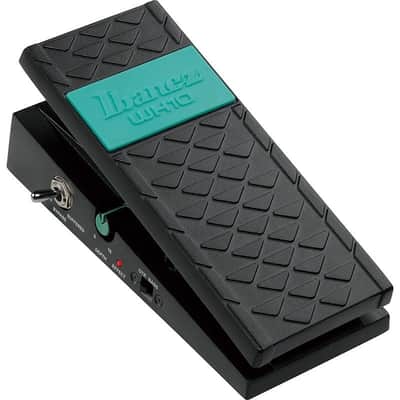

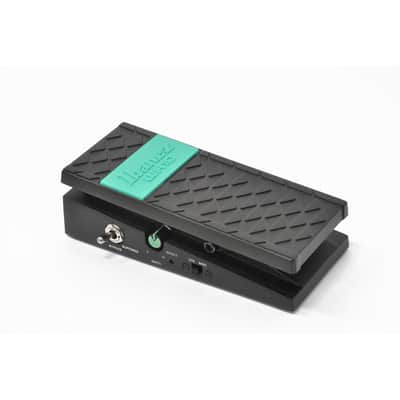

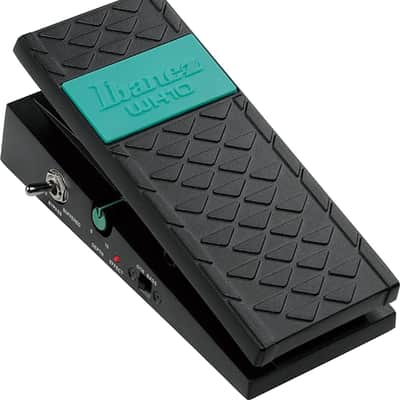

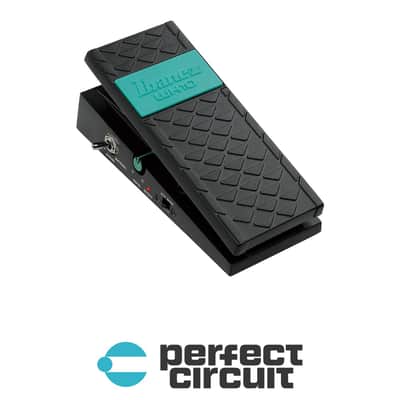

WH10v3

The Ibanez WH10v3 is a highly popular wah pedal known for its unique features. It offers a guitar/bass range switch that enables switching between two preset frequency ranges best suited for each instrument. The pedal utilizes a multiple feedback opamp circuit, creating a different tonal quality compared to more common inductor-based wahs. It also features a volume boost for additional flexibility.

Key technical specifications include:
- Controls: Depth
- Switches: Effect ON/OFF, Frequency range (Guitar/Bass), Buffered/True Bypass
- I/O's: Input, Output (Input on the right side, Output on the left side)
- Size: 100(W) x 202(D) x 84(H) mm
- Weight: 815g
- Required Current: 12mA @ 9V
- Power supply: One 9-volt battery or External DC 9-volt AC adapter
- Housing: Highly durable, die-cast Aluminum alloy body with a distinctive black finish

The WH10v3 is designed to deliver a unique sonic character that sets it apart from other pedals in its class. It is suitable for guitar and bass use, offering a versatile wah effect with precise frequency control and a sturdy metal housing for road-worthy performance.
