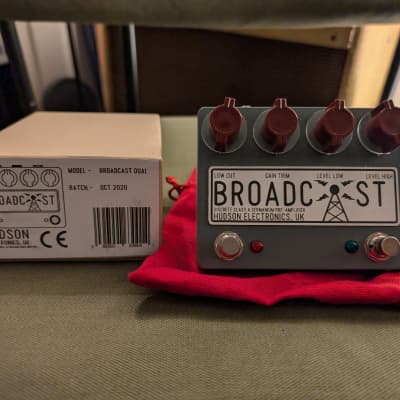

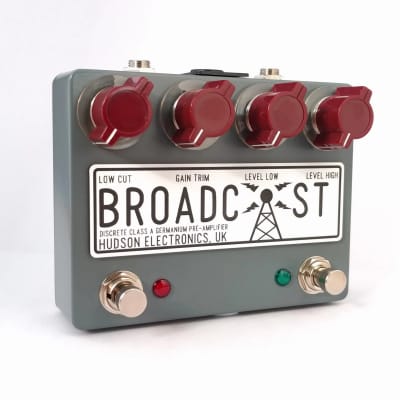

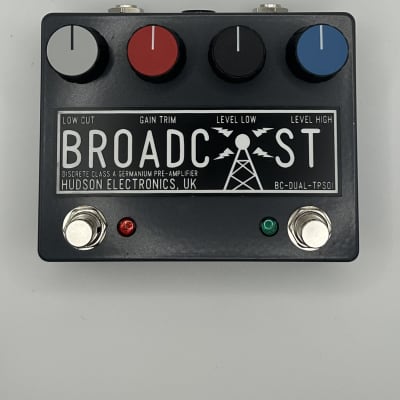

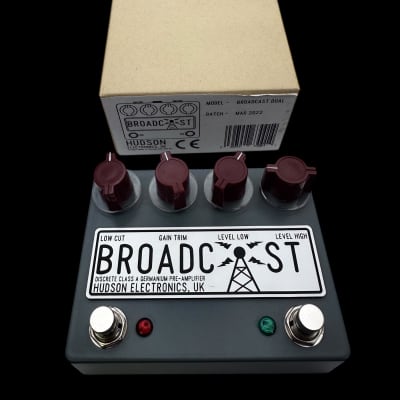

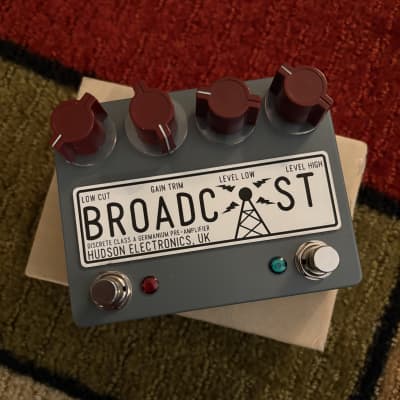

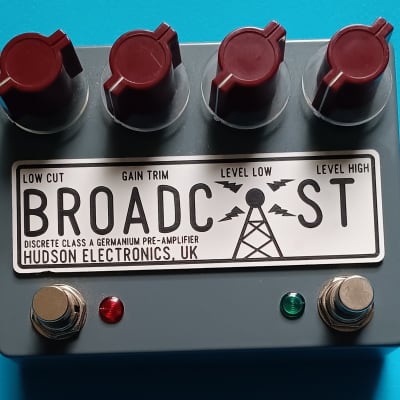

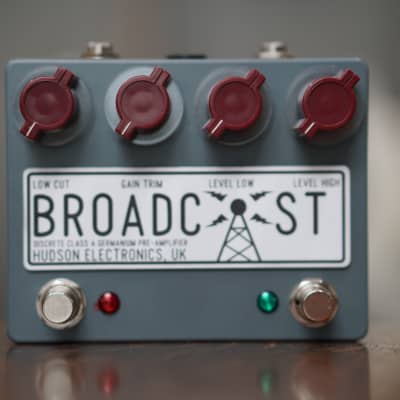

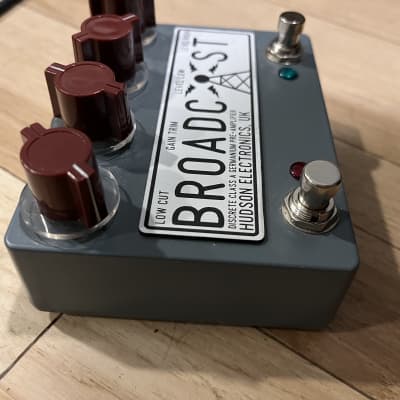

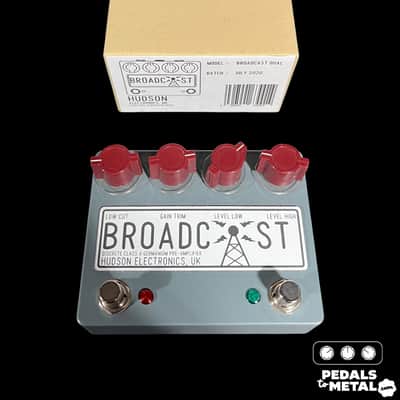

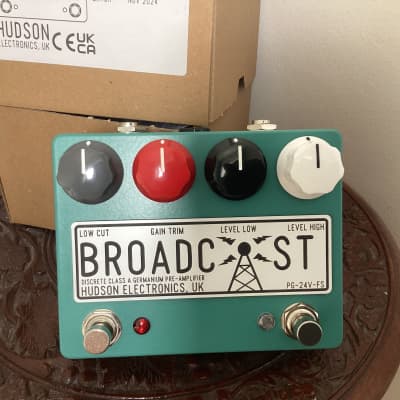

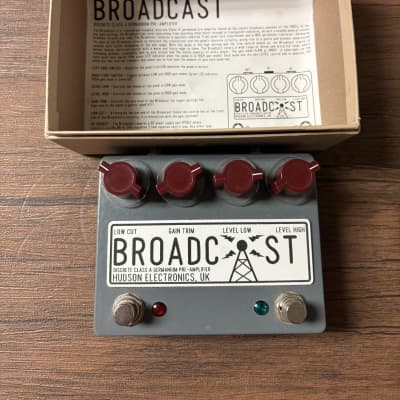

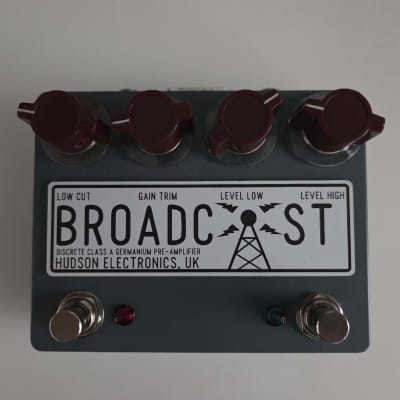

Broadcast Dual Footswitch

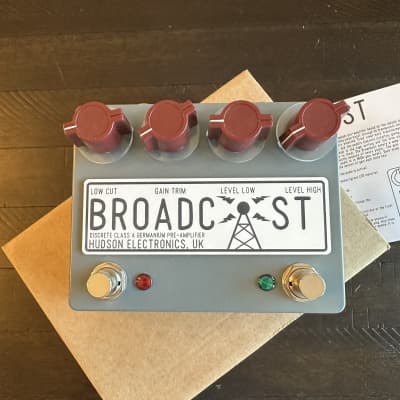

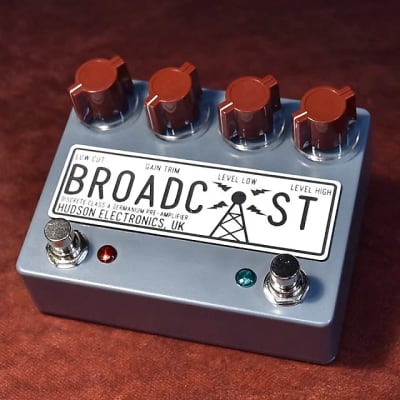

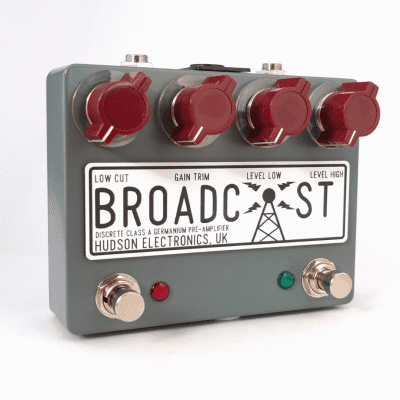

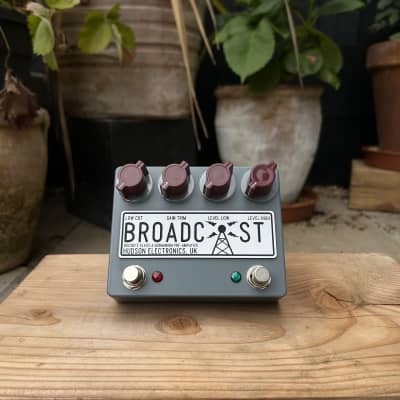

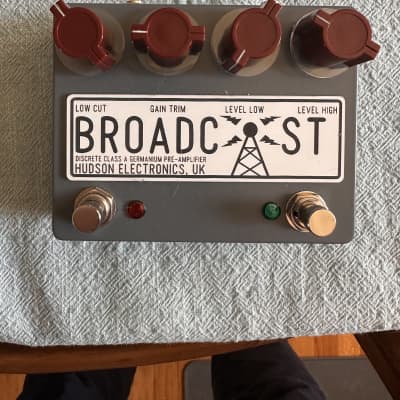

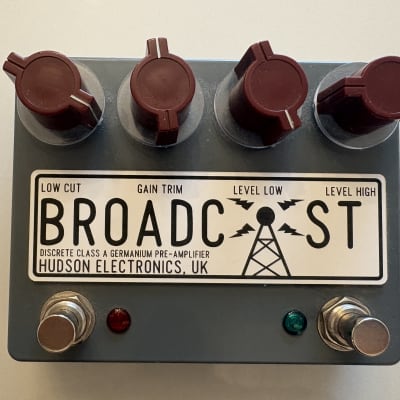

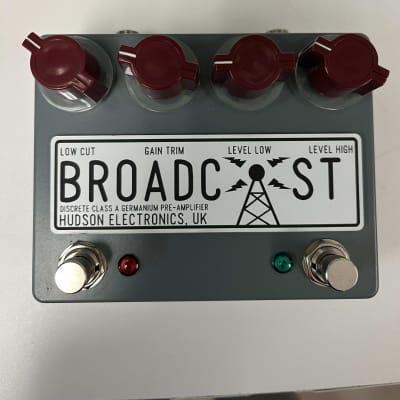

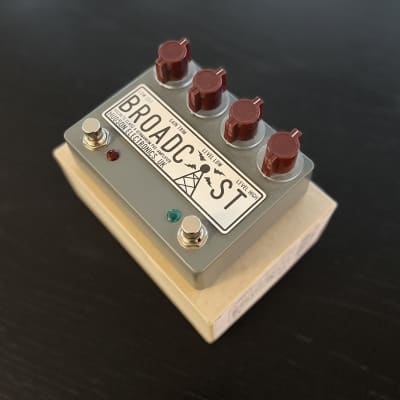

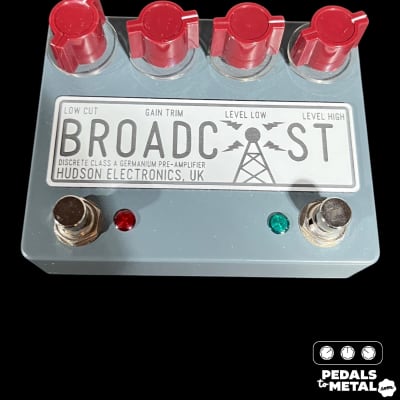

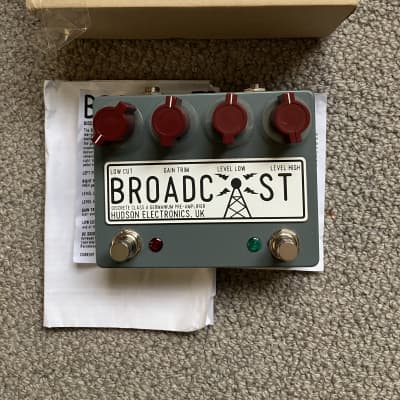

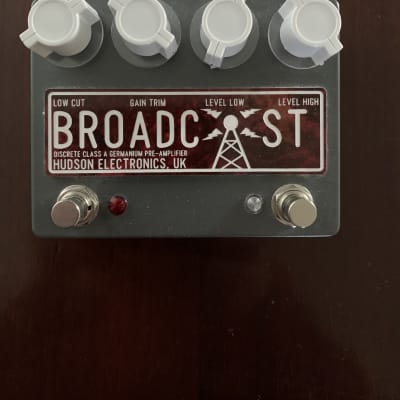

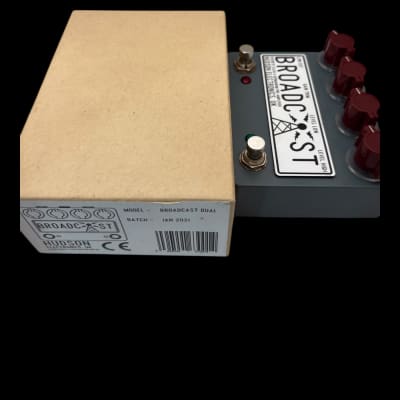

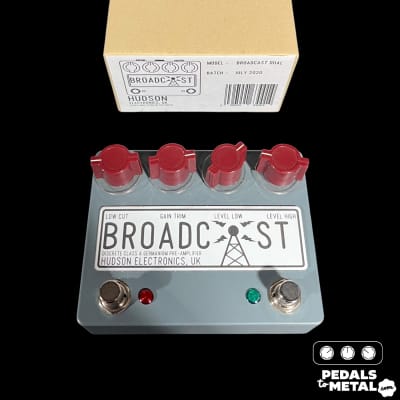

The Hudson Electronics Broadcast Dual Footswitch is a transformer-coupled, discrete Class-A germanium preamplifier inspired by the classic broadcast consoles of the 1960s. It features a specially selected Triad steel-core transformer and a Germanium transistor, providing a wide range of driven and distorted tones while remaining dynamic and responsive to pick attack and player nuances.

The footswitchable gain modes allow users to choose between LOW and HIGH gain modes via the right footswitch, with a green LED indicating when the pedal is in HIGH gain mode. Each mode has its own LEVEL control, and the pedal also includes two internal trimmers for fine-tuning the amount of gain available in each mode.

Key Specifications:
- Selected Germanium and Silicon transistors
- Specially chosen TRIAD Magnetics steel-core transformer
- BI Technologies potentiometers
- Heavy-duty Alpha foot switches (rated for >30,000 cycles)
- Dimensions: 4.74" x 3.93" x 2.56"
- Power: 9V to 24V DC
- Current Draw: 20mA
- DC Socket: Requires a DC power supply unit (PSU) supplying between 9v and 24v, with a minimum current of 20mA and a 2.1mm negative center barrel plug

The Broadcast Dual Footswitch is suitable for use with bass or as a clean preamp boost when run at higher voltages. It is designed to deliver a range of tones from sparkling clean boost to warm, fuzzy overdriven sounds, making it a versatile tool for guitarists and bassists alike.
