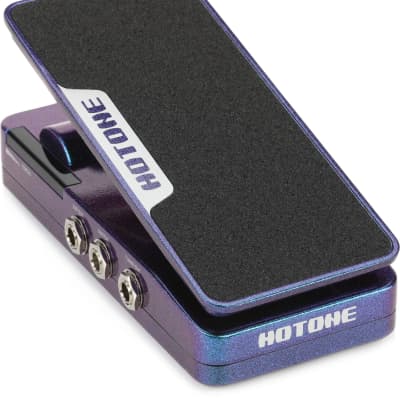

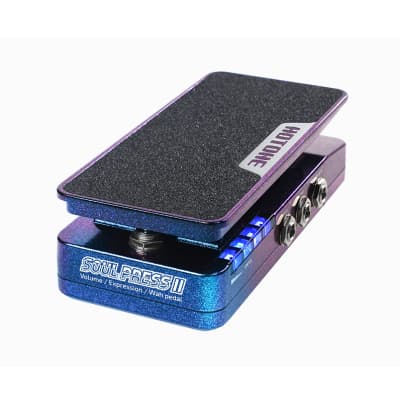

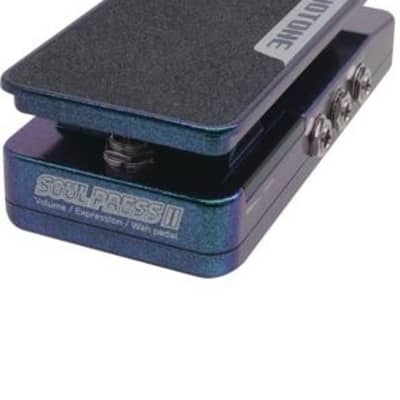

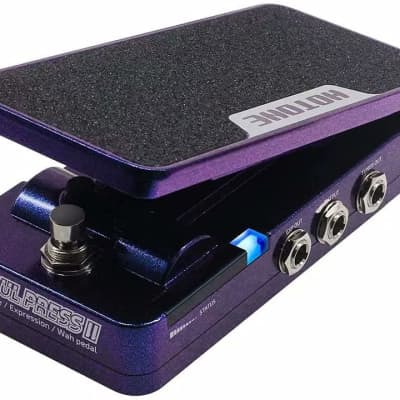

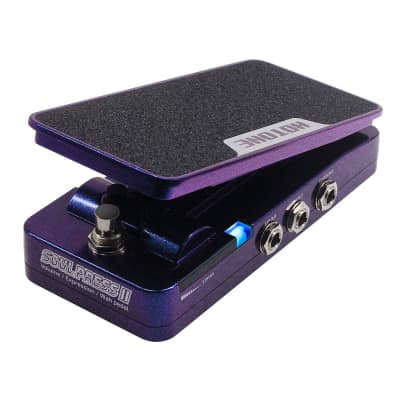

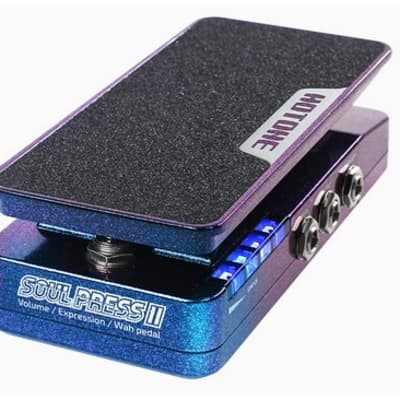

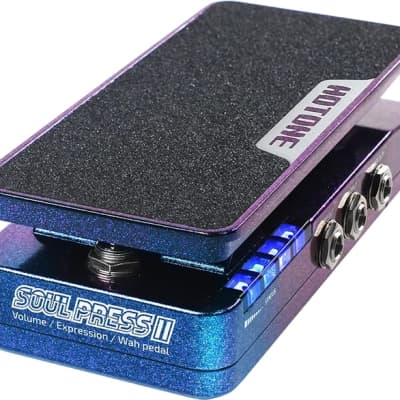

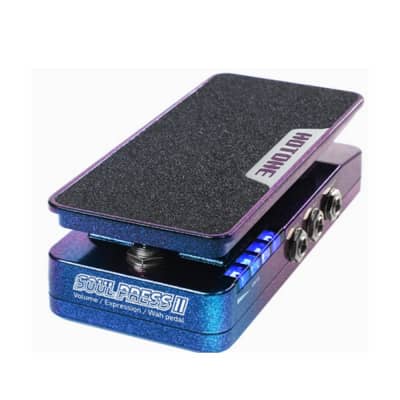

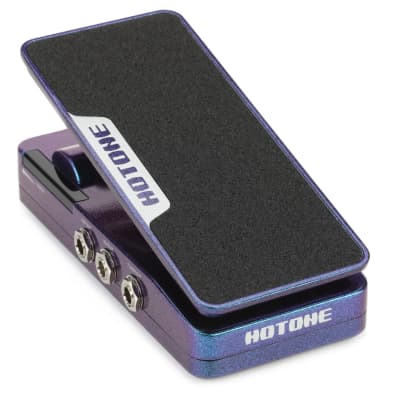

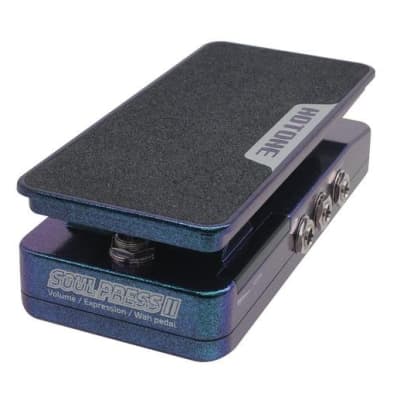

SP20 Soul Press II Volume Wah

The SP20 Soul Press II Volume Wah by Hotone is a versatile pedal with the following technical specifications and features:

- Pot Resistance (EXP out): 10kΩ
- Input Impedance: 1MΩ
- Output Impedance: 100Ω
- Wah Range Selector:
- WARM—290Hz to 1.4kHz
- CLASSIC—360Hz to 1.8kHz
- Current Consumption: Max 30mA
- Dimensions: 81mm (W) x 162mm (D) x 51mm (H)
- Weight: 500g

Features:
- True Bypass
- 4 in 1 functionality (volume, expression, wah, volume/wah)
- Active volume design for maintaining lossless tone
- Separate tuner and expression outputs for enhanced connectivity
- Cool STATUS LEDs with mode switch indicating pedal position in real time
- Q (wah filter range) and WARM/CLASSIC (frequency range) controls for flexible wah tone
- Internal structure optimization for reduced noise interference
- Multiple I/O options for diverse access
- Pedal position indicator for real-time feedback
- Larger contact surface for improved ergonomic experience

The pedal is designed to provide a wide range of tones and playability, making it a truly versatile wah pedal suitable for various musical applications.
