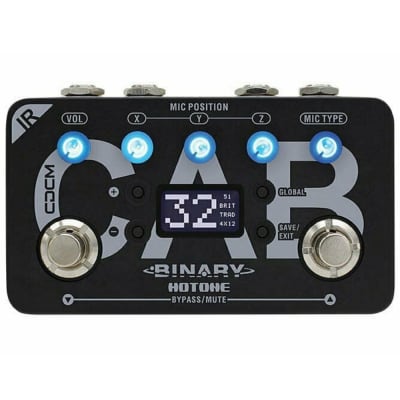

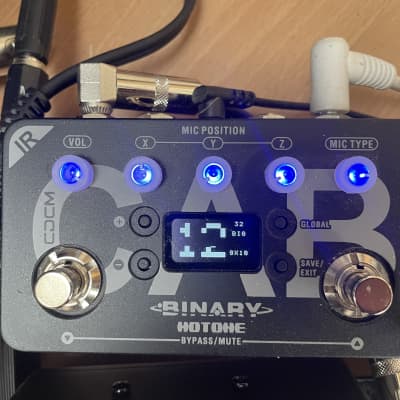

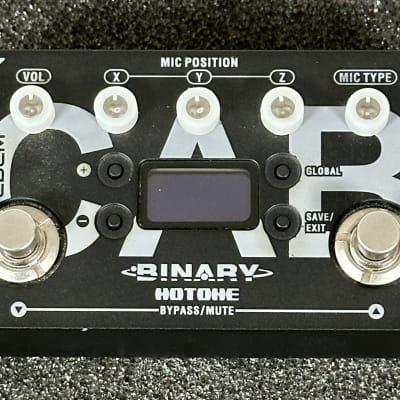

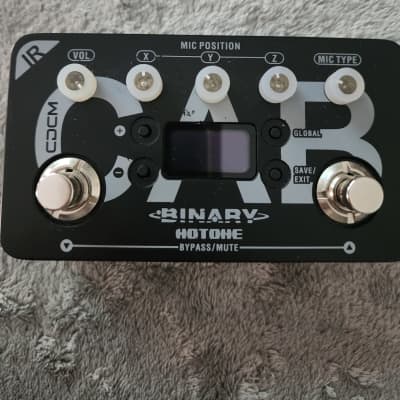

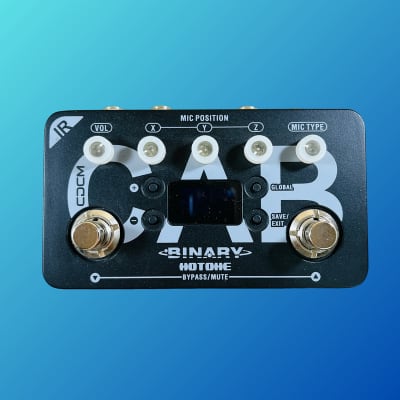

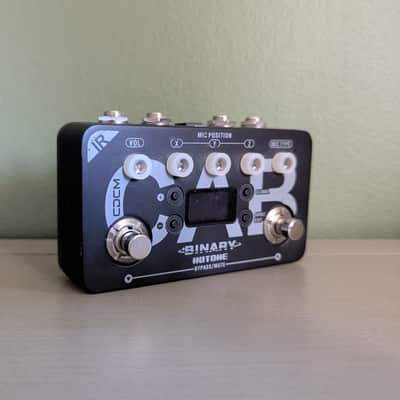

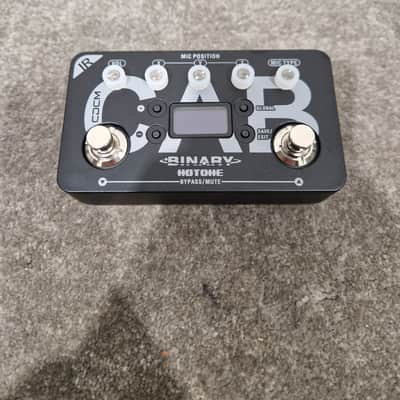

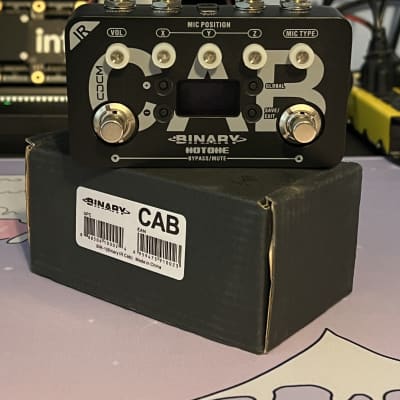

Binary Cab

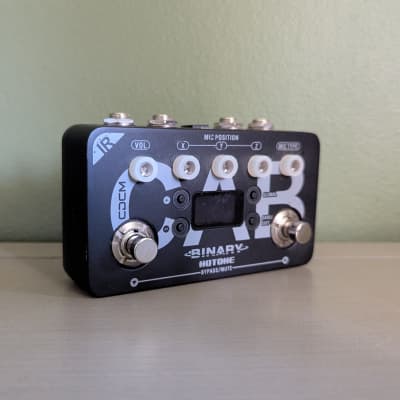

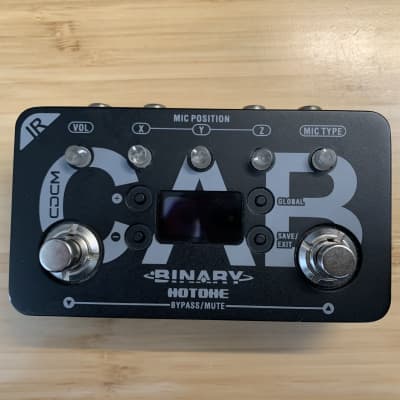

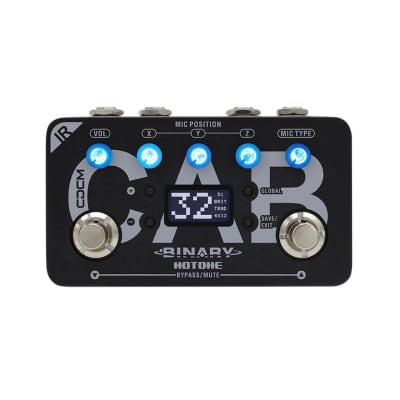

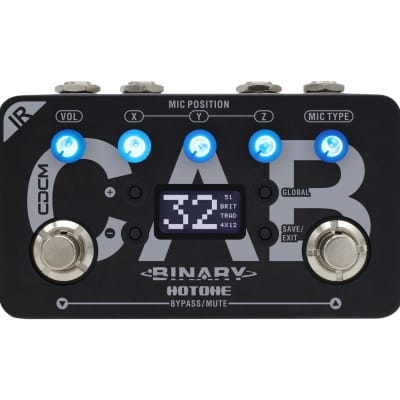

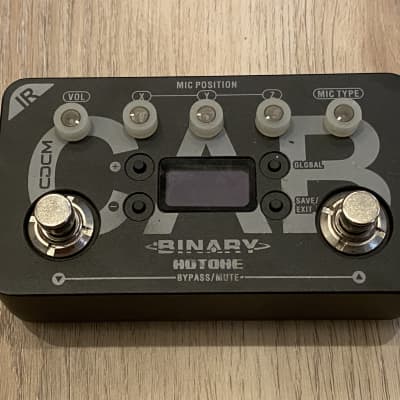

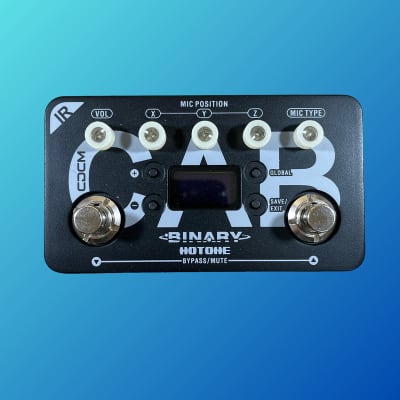

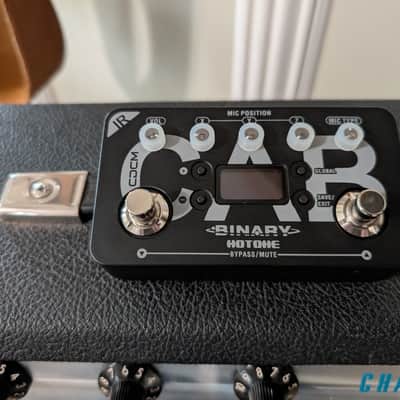

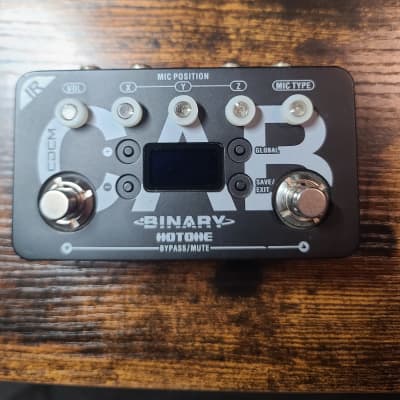

The Hotone Binary Cab is an impulse response-based cabinet simulator effects pedal designed to deliver precise vintage and modern guitar/bass cab sounds. The pedal features 100 authentic legendary (vintage and modern) guitar and bass cab models, along with CDCM powered technology for high-quality sound reproduction.

Specifications:
- Number of Patches: 100
- Number of Effects: 100 cabs, 8 power amp types, 10 mic types
- Digital Processing: 24-bit A/D/A conversion, 48 kHz sample rate
- Input Impedance: 1 MOhms
- Output Impedance: 100 Ohms
- Power Requirement: DC 9V, center negative
- Current Consumption: 200mA minimum
- Dimensions: 121mm (D) x 72mm (W) x 47mm (H)

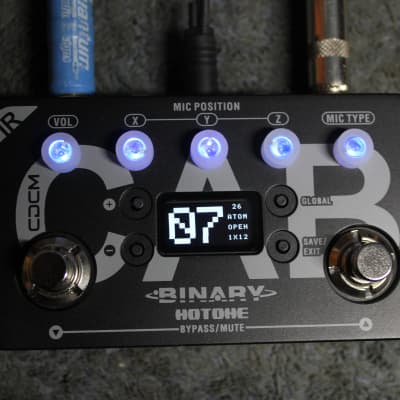

The pedal also includes a USB port for firmware upgrading and loading/managing effects with free PC/Mac software. It is designed with a compact casing, dual- footswitch design, versatile inputs/outputs, and a bright, clear OLED display for easy operation.
