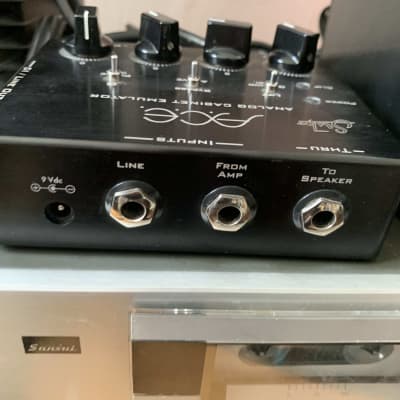

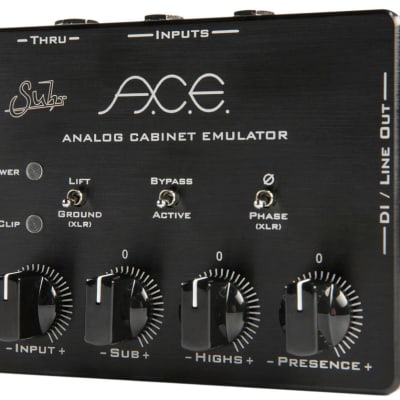

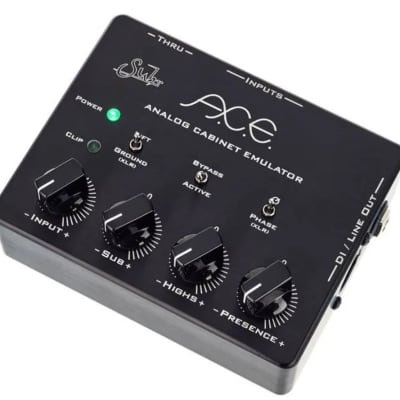

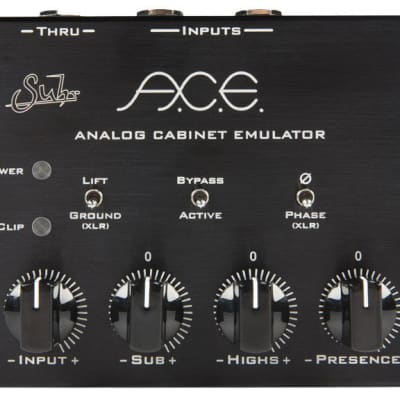

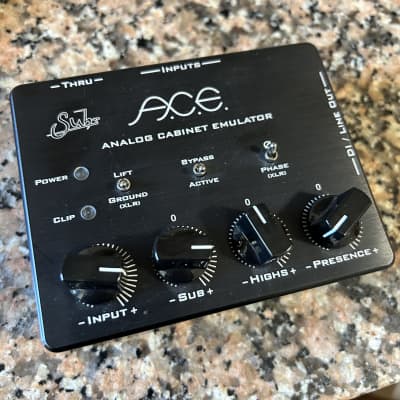

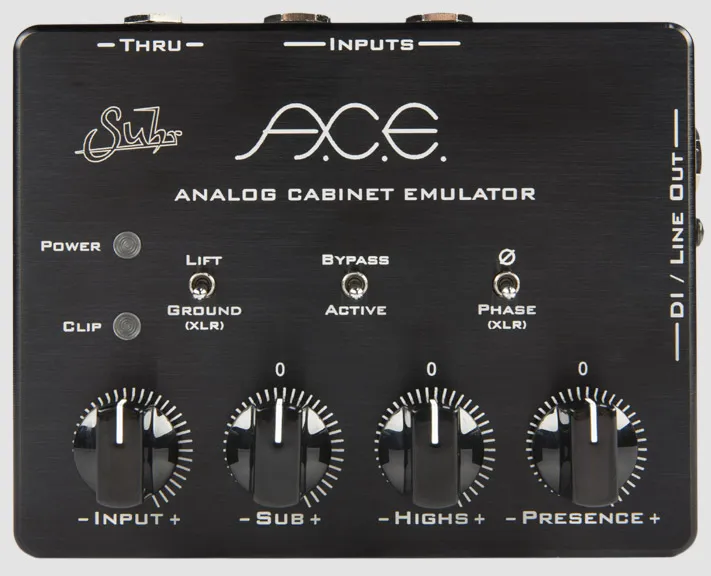

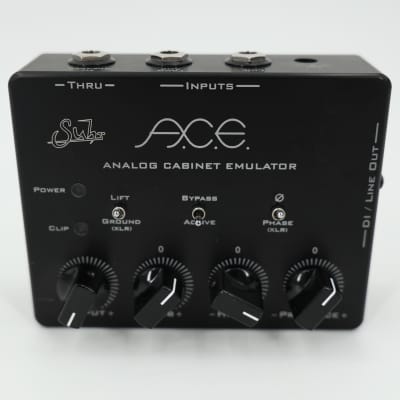

A.C.E. Analog Cabinet Emulator

The Suhr A.C.E. (Analog Cabinet Emulator) is an active analog cabinet emulator designed to capture the complex characteristics of a guitar speaker cabinet for various recording and live performance applications without the use of a microphone. It features a 100% pure analog signal path and employs an advanced Multi-Stage Filtering (MSF) network to generate realistic speaker cabinet simulations without digital signal processing.

Key Features:
- Active Analog Cabinet Emulator
- Multi-Stage Filtering (MSF) Cabinet Emulation (bypassable)
- Unbalanced 1/4" & Balanced XLR Line Out Section
- Phase and Ground Lift For XLR Output
- Optimized 18-Volt Circuitry For Maximum Headroom and Dynamic Range
- Compact Half Rack Enclosure

Specifications:
- Street Price: $299
- Input Impedance: 100KΩ
- Output Impedance: 600Ω
- Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
- Operating Voltage: 9Vdc, regulated
- Maximum Voltage: 10Vdc
- Reverse Battery Protection: Yes
- Over Voltage Protection: Yes
- Current Consumption: 80mA
- Estimated Battery Life: 4.5 hours continuous use
- Dimensions: 4.875”(W) x 3.875”(D) x 1.375”(H)
- Weight: 1.05 lbs
- ROHS Compliant: Yes

The A.C.E. is not a load device and requires the amplifier to be connected to a suitable load (Suhr Reactive Load) or speaker cabinet when in use to avoid damage.
