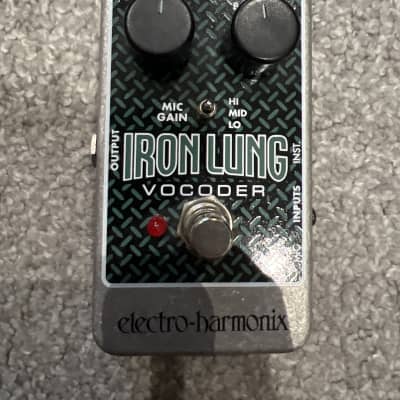

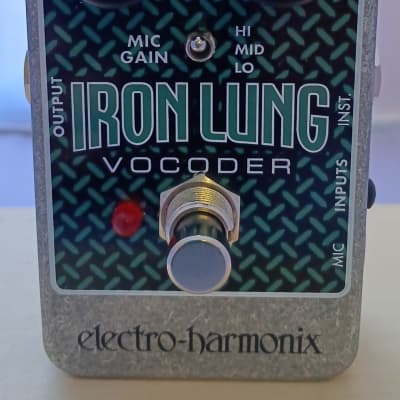

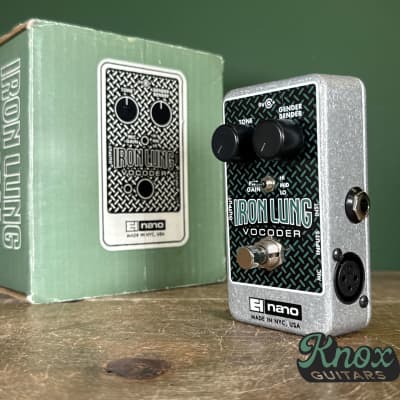

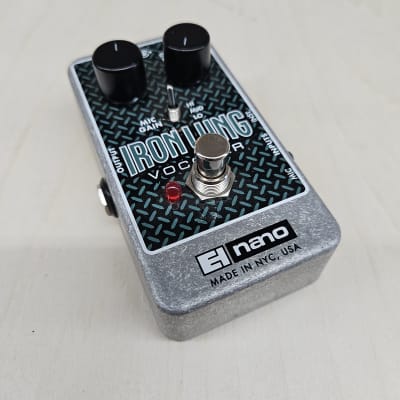

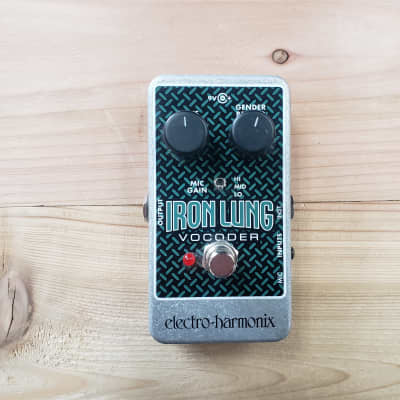

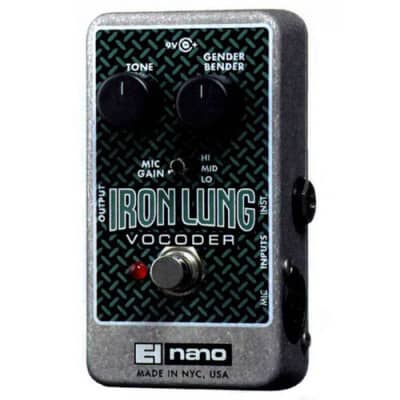

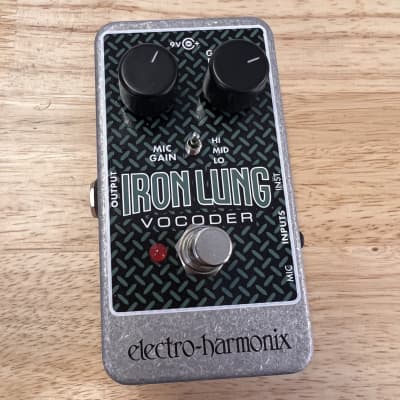

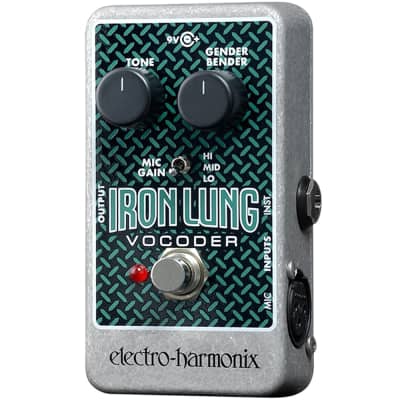

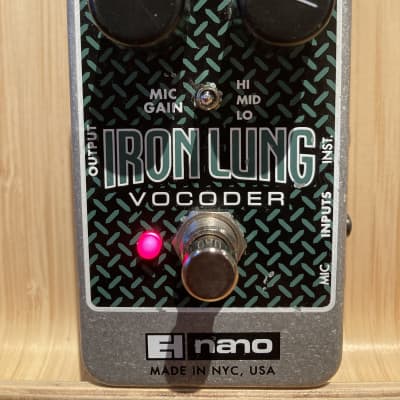

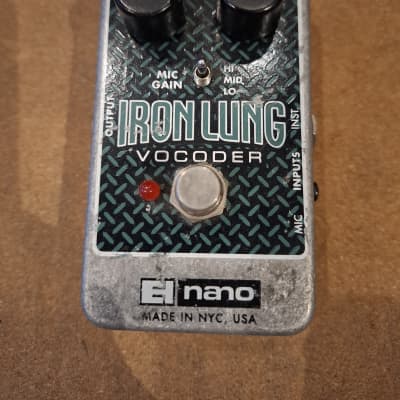

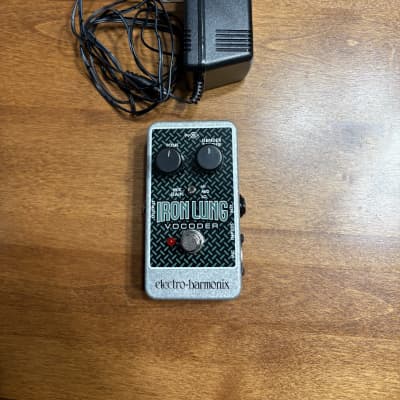

Iron Lung

The Iron Lung by Electro-Harmonix is a versatile and easy-to-use vocoder in a compact pedal format. It includes the same popular vocoding algorithm as the V-256 and features the following:

- 256 band Vocoder
- TONE and GENDER BENDER controls
- Guitar Bypass or Split Guitar/Vocal Bypass (requires Insert Cable)

Technical Specifications:
- A/D and D/A Conversion Sample Rate = 71.5 kHz
- A/D and D/A Conversion Bit Resolution = 24 bits
- Current Draw = 150 mA @ 9VDC

The Iron Lung requires 9 to 9.6VDC at 200mA with a center negative plug and accepts Boss style AC Adapters. It features a MIC INPUT XLR Jack, INST INPUT ¼” Jack, INST OUTPUT ¼” Jack, and a 9V Power Jack.

The Iron Lung also includes a BYPASS FOOTSWITCH / STATUS LED for toggling between effect mode and bypass mode.
