Byte BYT-1 Bass Synth

The Byte BYT-1 Bass Synth by Dedalo is an 8-bit digital synthesizer designed specifically for bass instruments. It features an independent oscillator and sub-oscillator, offering five separate waveforms and an onboard envelope filter for versatile sound manipulation. The pedal includes a clean signal blend with analog-dry-thru, allowing bassists to finely tune the amount of effect in their signal. Additionally, it incorporates a sample rate limiter with control by an optical footswitch, enabling experimental tonal exploration.

The technical specifications of the Byte BYT-1 Bass Synth are as follows:
- Model: 2016 – BYT-1
- True Bypass
- Input impedance: 750Kohm
- Power Input: DC 9v center negative (minimum 100mA)
- Consumption: Regulated DC 9v center negative
- Dimensions: 12 cm x 9.4 cm x 5.4 cm
- Weight: 475g

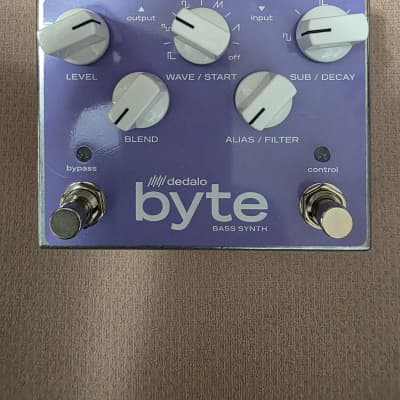

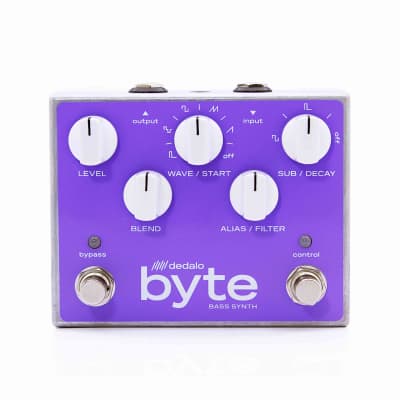

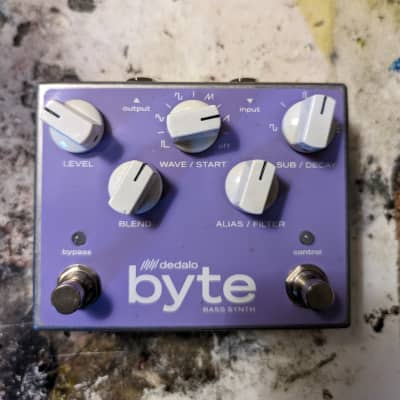

The controls on the Byte BYT-1 Bass Synth include:
- LEVEL: Output level of the synthesized signal
- BLEND: Output level of the clean signal which is added in parallel to the effect
- WAVE / START: Selects the waveform of the synthesized signal and sets the initial frequency for the envelope filter sweep
- ALIAS / FILTER: Controls the sample rate of the D/A conversion and sets the final frequency for the envelope filter sweep
- SUB / DECAY: Selects the waveform of the suboscillator and sets the total time of the envelope filter sweep
- INPUT: Effect input
- OUTPUT: Effect output
- DC 9V: Power supply input
- LED: Lights up when the effect is engaged
- TRUE BYPASS: Turns on/off the effect
- CONTROL: Optical switch with functions for sample rate sweep and filter control mode

The Byte BYT-1 Bass Synth is designed to transform the low-end of bass instruments into a monophonic eight-bit machine, offering a wide range of sonic possibilities for bass players.
