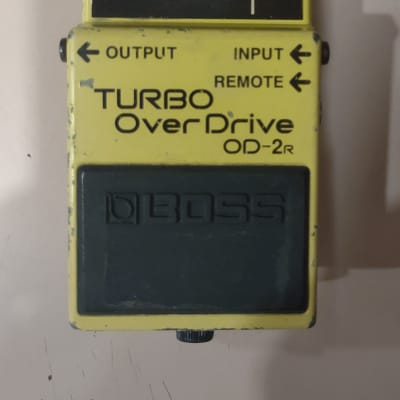

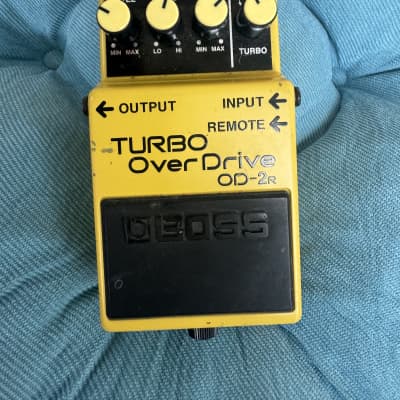

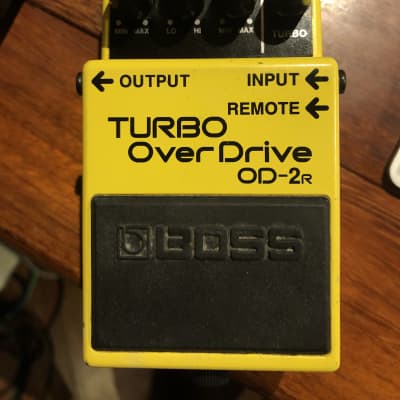

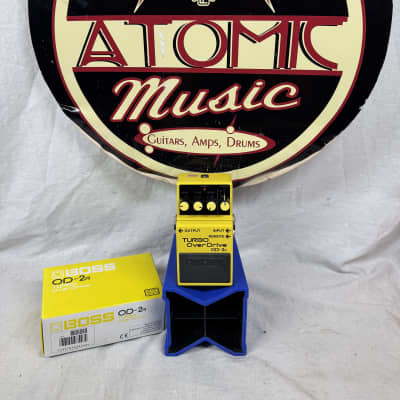

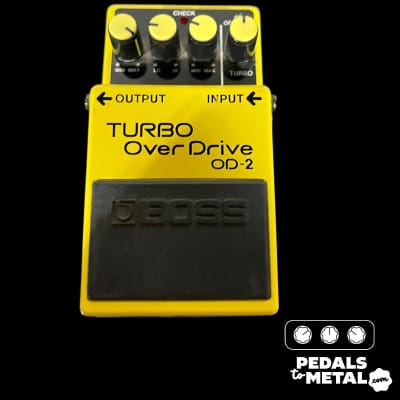

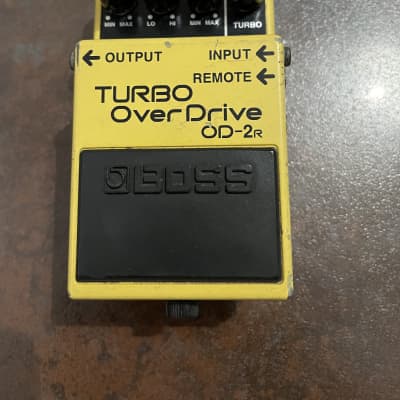

OD-2R Turbo OverDrive

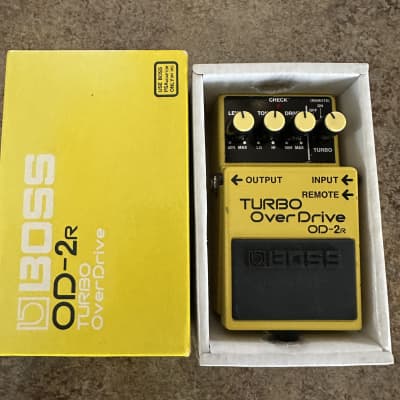

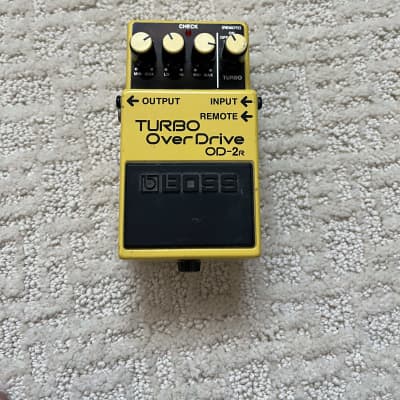

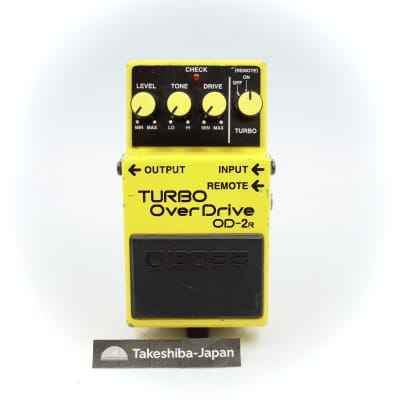

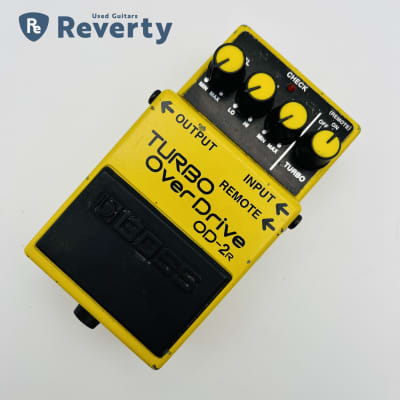

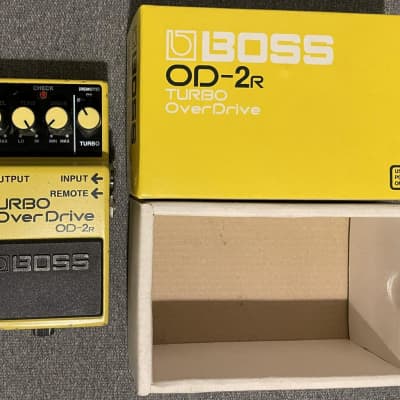

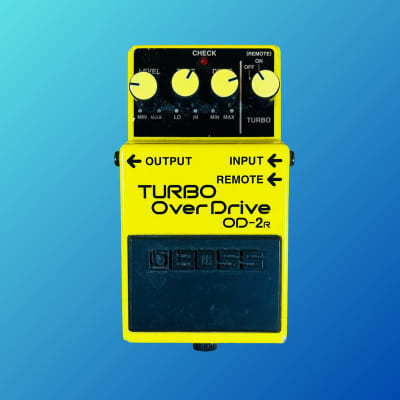

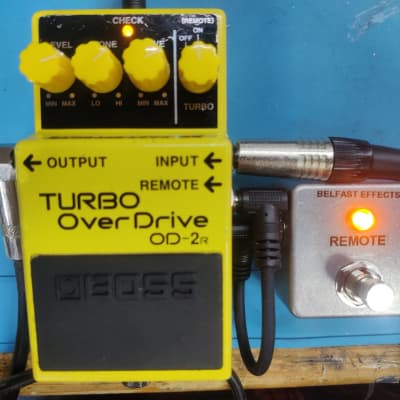

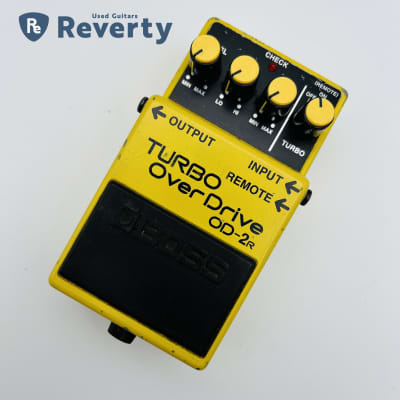

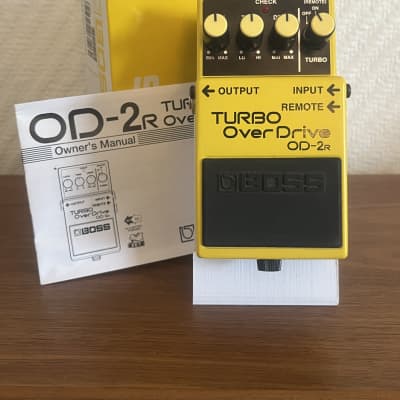

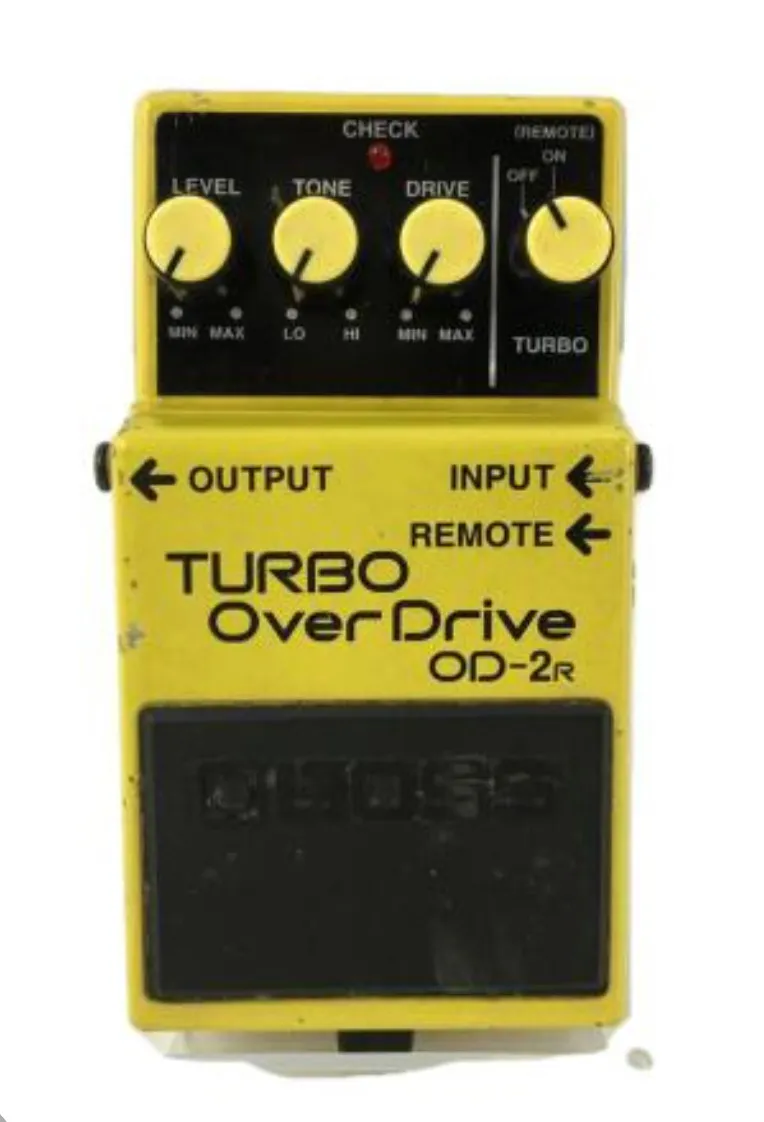

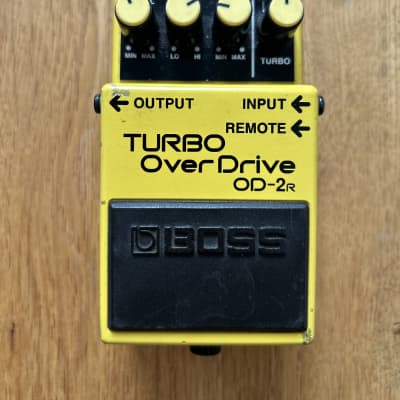

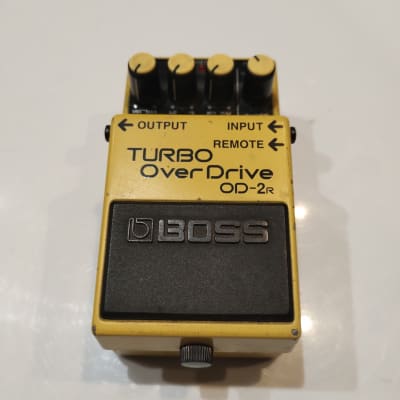

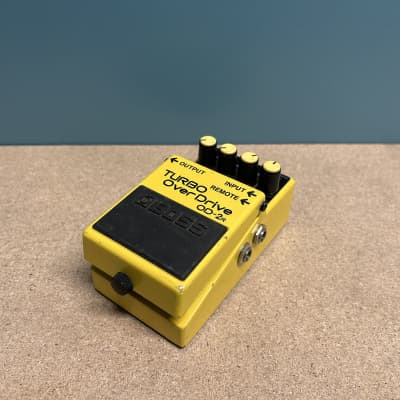

The BOSS OD-2R Turbo OverDrive pedal features two stages of gain overdrive, with controls for Level, Tone, Drive, and a 2-way Mode switch. It has input and output connectors, as well as an AC adaptor input. The input impedance is 1Mohm, and the output load impedance is 10kohm or more. The equivalent input noise is -118dBm or less (IHF-A, Tone center, Input Short). The recommended AC adaptor is from the ACA Series, and the current draw is 10mA at 9V. The dimensions of the pedal are 70mm wide and 125mm high, with a weight of 410g (14 oz).
