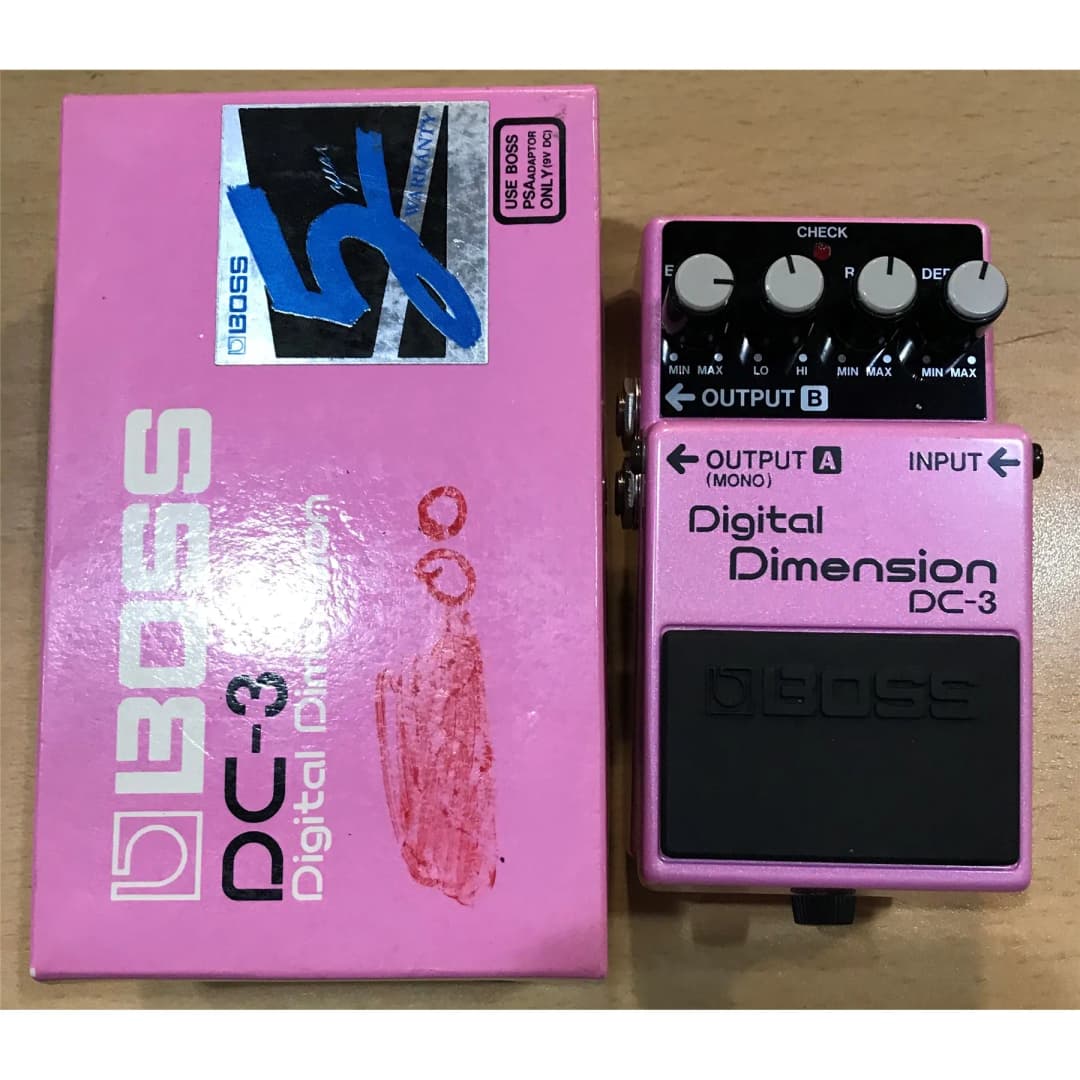

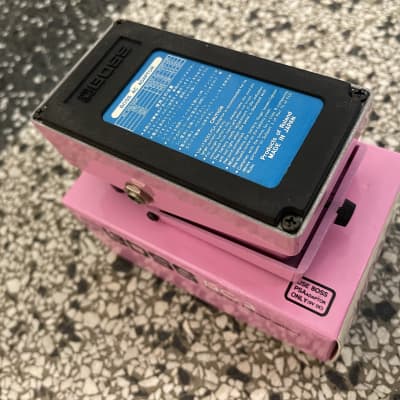

DC-3 Digital Dimension

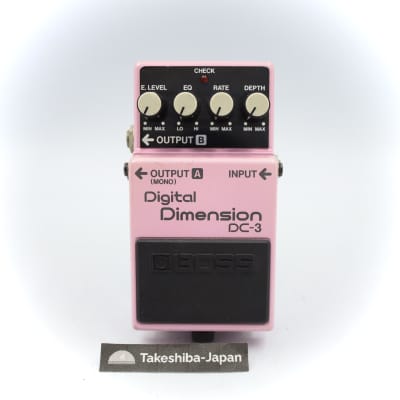

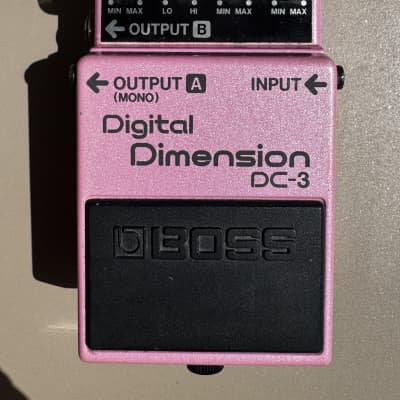

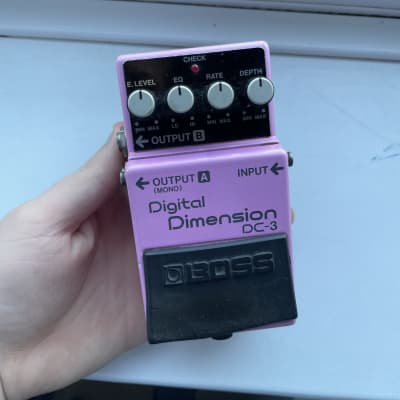

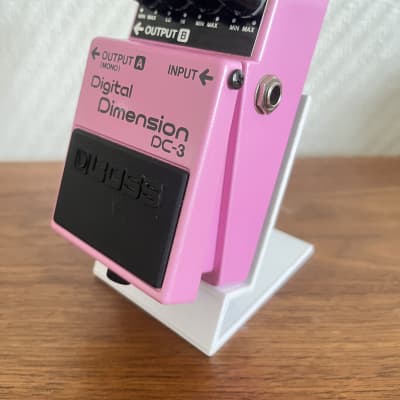

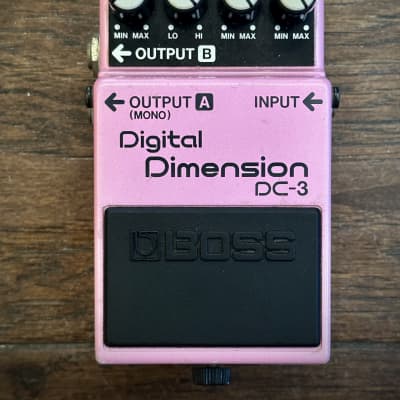

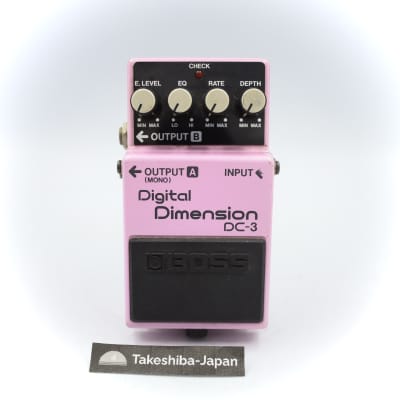

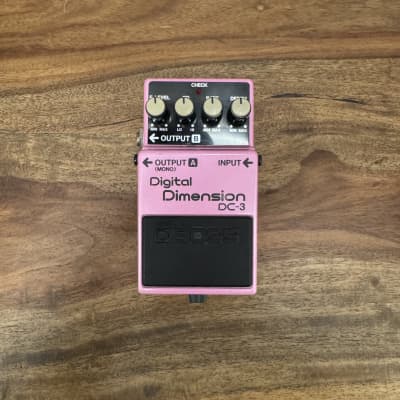

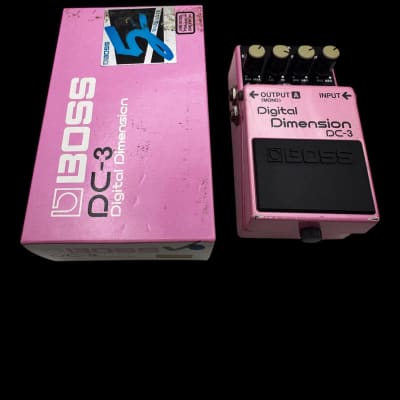

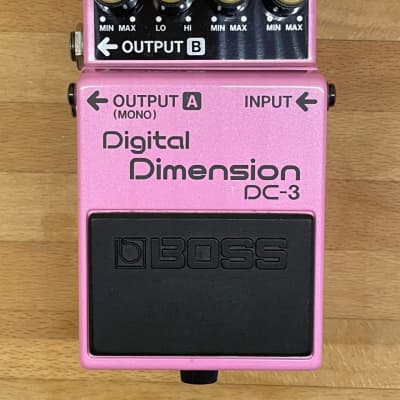

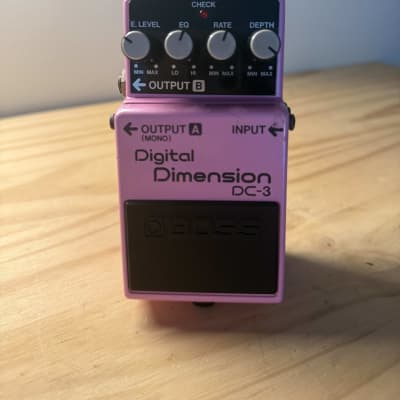

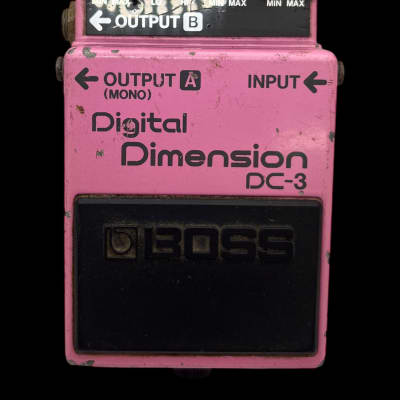

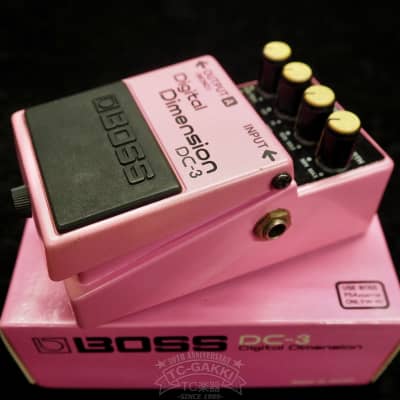

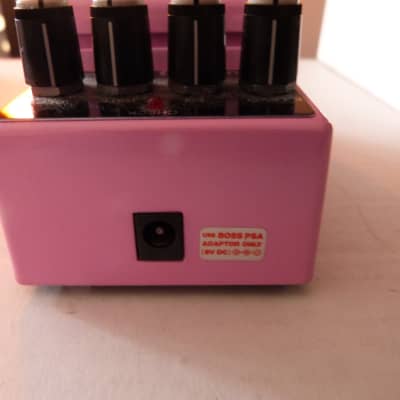

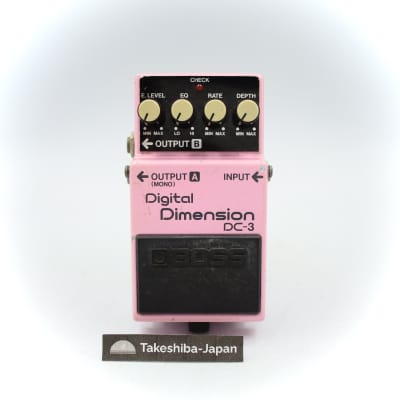

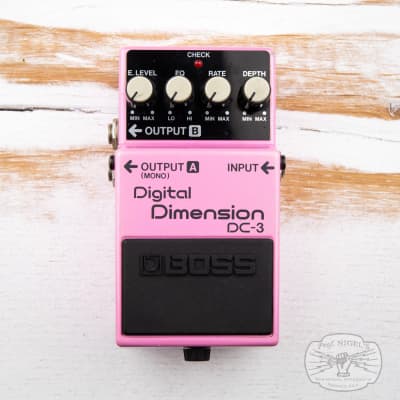

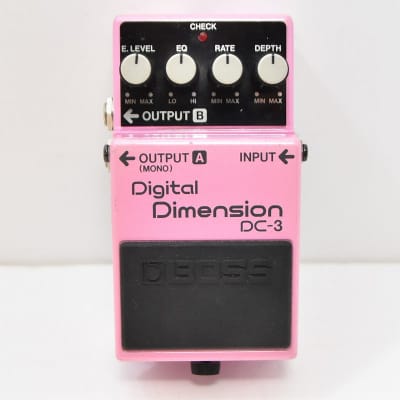

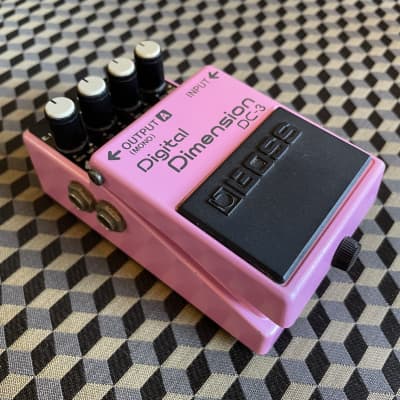

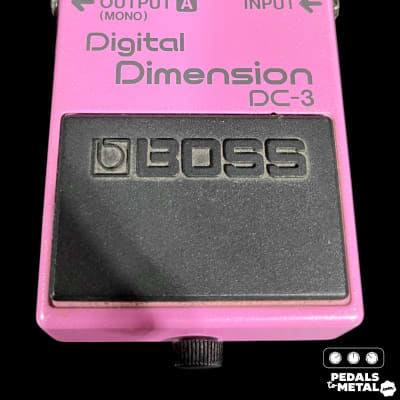

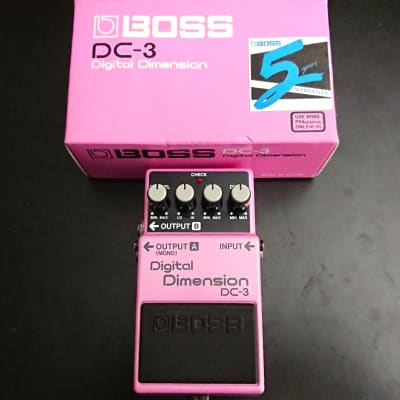

The BOSS DC-3 Digital Dimension is a digital dimension effects unit that provides spacious and realistic chorus effects. It features high-quality digital delay line and modulation, allowing for expansive and accurate signal response. The unit offers controls for Effect Level, Equalizer, Rate, and Depth, enabling users to create custom-tailored dimensional effects. The DC-3 is designed to produce clear, high-quality dimensional sounds with perfect two-phase synchronization based on digital modulation. It is equipped with Input, Output A, Output B, and AC Adaptor connectors, with a current draw of 65 mA (DC 9V) and an input impedance of 1Mohm. The sampling rate is 50kHz, and the frequency response ranges from 20Hz to 20kHz (+1/-3 dB). The DC-3 was sold from March 1988 to August 1993.
