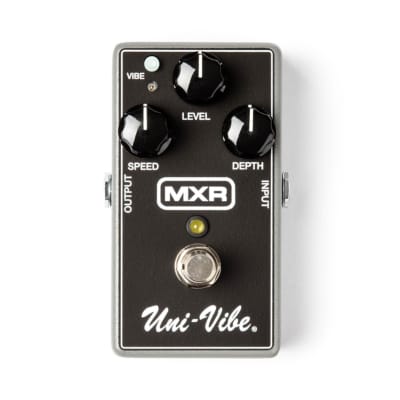

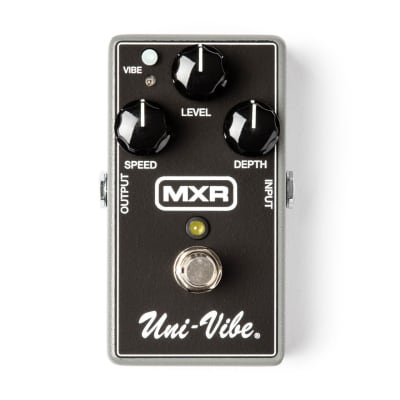

Uni-Vibe Chorus/Vibrato

The MXR Uni-Vibe Chorus/Vibrato pedal is a versatile effects unit designed to deliver classic textures and tones in a compact housing. It offers both Chorus and Vibrato modes, with a simple three-knob interface for easy customization. The pedal features true bypass switching for seamless integration into any pedalboard setup.

Specifications:
- Input Impedance: 1 MΩ
- Output Impedance: 5 kΩ
- Max Input: 0 dBV
- Max Output: 8 dBV
- Noise Floor: -94 dBV (A-weighted, all controls at mid-position)
- Speed Control: 0.5 Hz to 10.5 Hz
- Bypass: True Hardwire
- Current Draw: 5 mA
- Power Supply: 9 volts DC
- Power Options: 9-volt battery, Dunlop ECB003 9-volt adapter, or DC Brick™ power supply

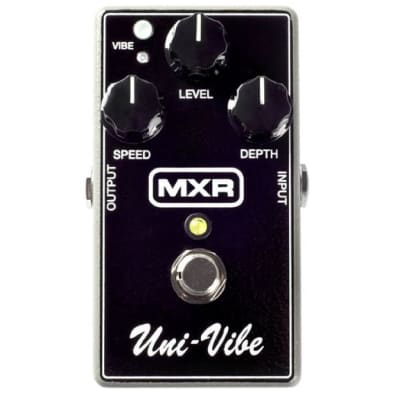

The pedal's controls include:
- SPEED knob: Controls the sweep rate of the effect
- VIBE button: Toggles between Chorus Mode and Vibrato Mode
- LEVEL knob: Adjusts the overall volume of the effect
- DEPTH knob: Controls the overall intensity of the effect

The MXR Uni-Vibe Chorus/Vibrato pedal is suitable for guitarists looking to add rich, lush chorus textures or deep, shimmering vibrato effects to their sound. It is designed to be pedalboard-friendly, making it a convenient addition to any guitarist's setup.
