TM300 Tube Amp Modeler

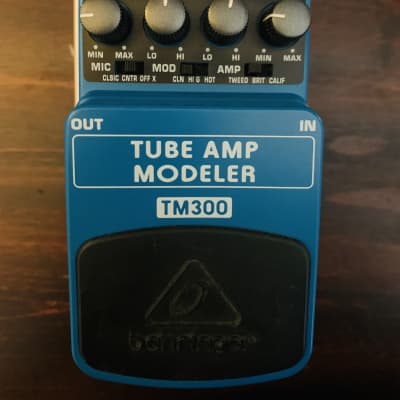

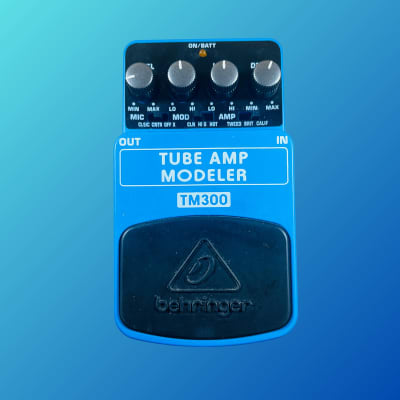

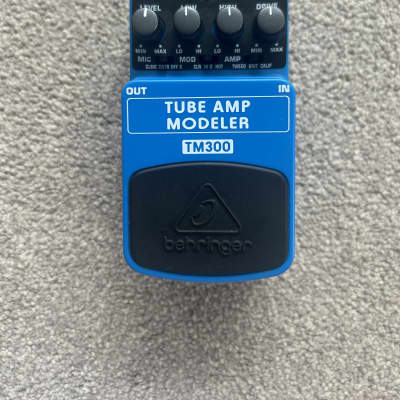

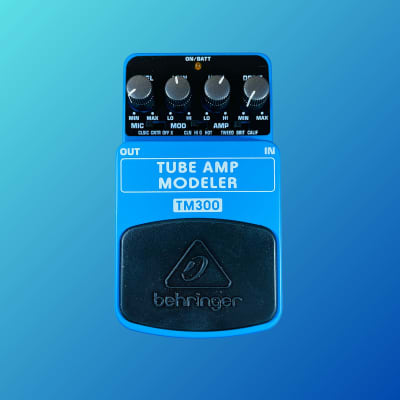

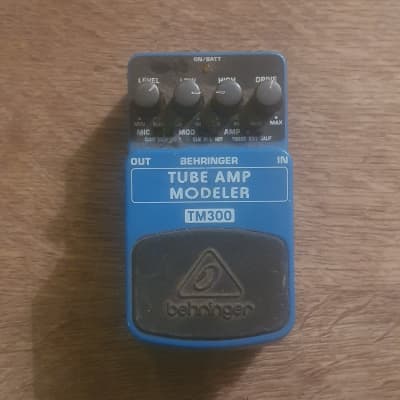

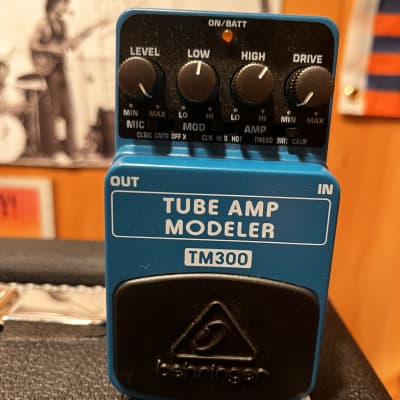

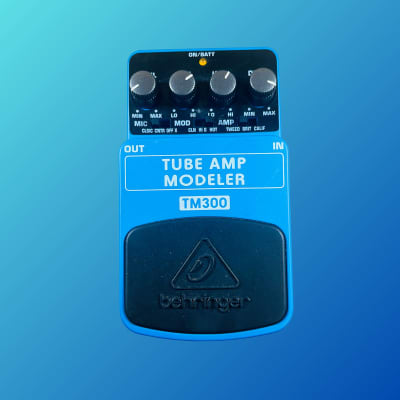

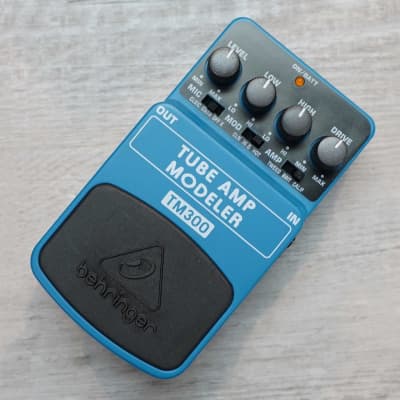

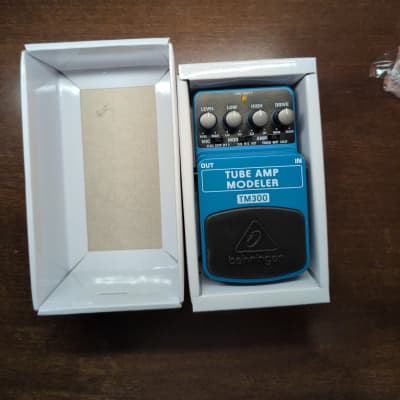

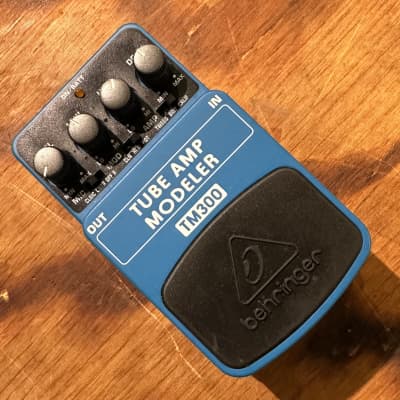

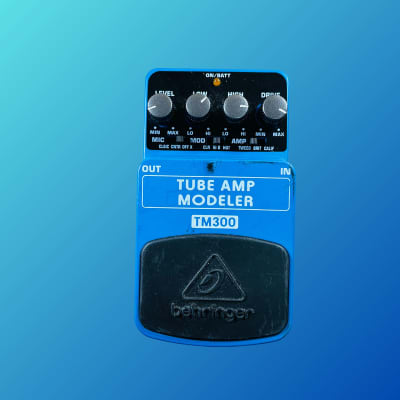

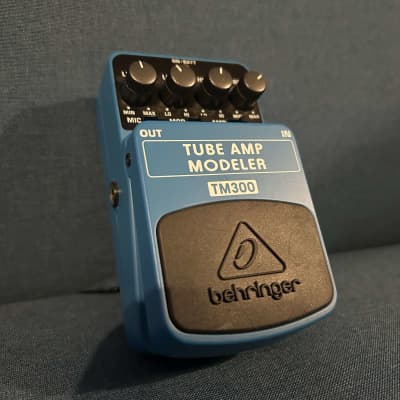

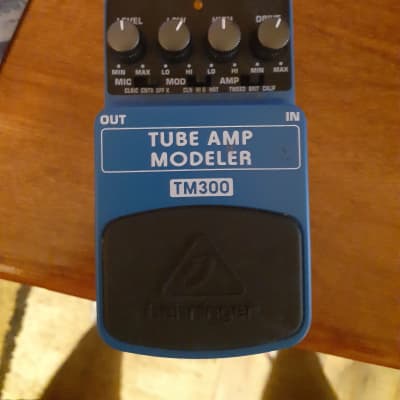

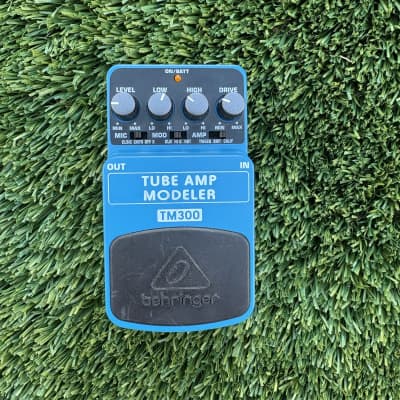

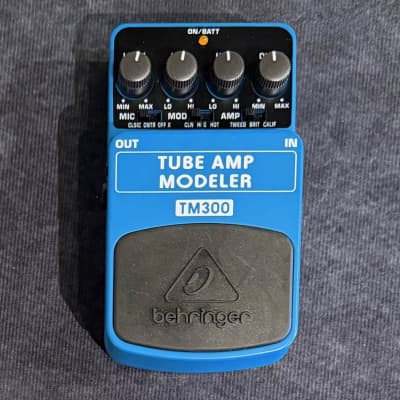

The Behringer TM300 Tube Amp Modeler features authentic modeling technology for 3 classic guitar amps, 3 gain modes, and 3 mic placements, providing a total of 27 configurations to achieve sought-after tube amp sounds from clean to super-fat distortion. The pedal includes controls for LEVEL, LOW (boost/cut low-frequency range), HIGH (boost/cut high-frequency range), DRIVE (adjusts overdrive effect), MIC switch (simulates microphone placement), MODE switch (dial up one of 3 gain settings), and AMP switch (select one of 3 classic tube amps). The pedal also features an ON/BATT LED, footswitch, 1/4" TS IN and OUT connectors, DC IN connection for power supply, and a battery compartment.

Technical specifications:
- Input Connector: 1/4" TS
- Input Impedance: 500 kΩ
- Output Connector: 1/4" TS
- Output Impedance: 1 kΩ
- Power Supply: 9 V, 100 mA regulated
- Power Connector: 2 mm DC jack, negative center
- Battery: 9 V type 6LR61
- Power Consumption: 30 mA
- Dimensions: Approximately 54 mm (H) x 70 mm (W) x 123 mm (D)
- Weight: Approximately 0.33 kg (0.73 lbs)

The TM300 is designed to provide a wide range of tube amp sounds and offers flexibility in shaping tones for guitarists.
