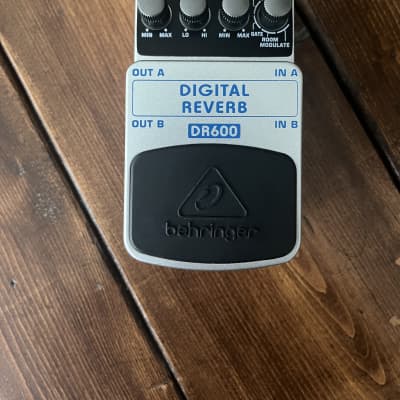

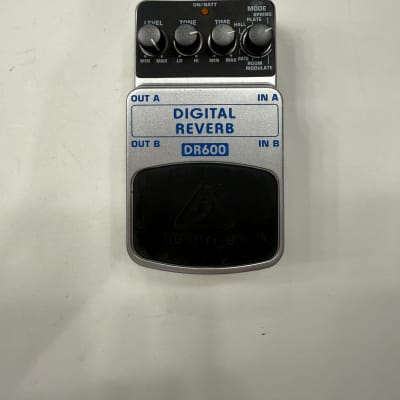

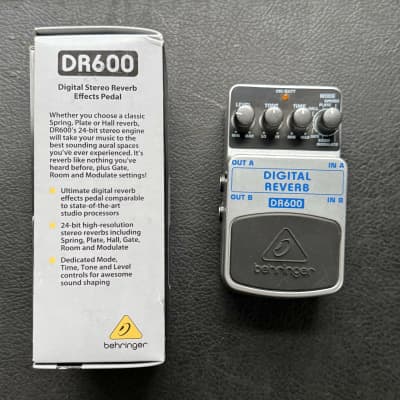

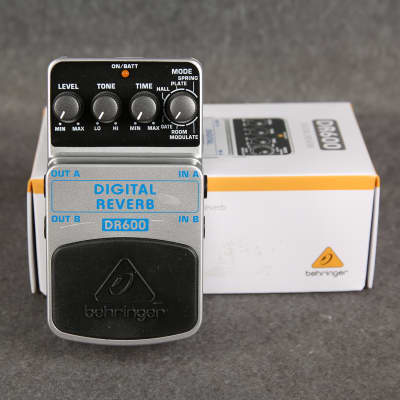

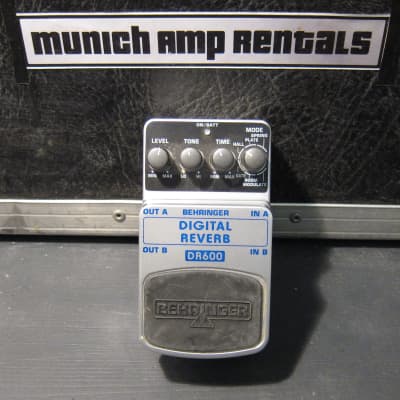

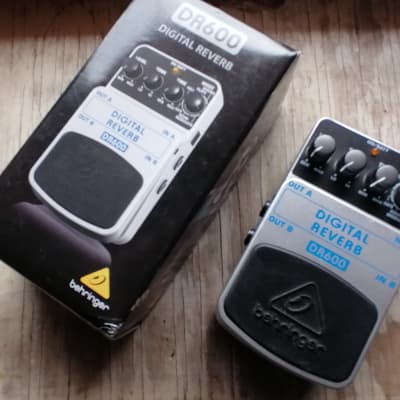

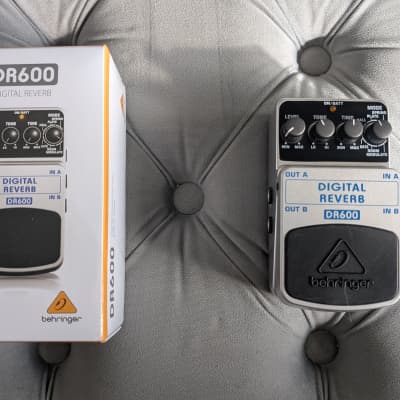

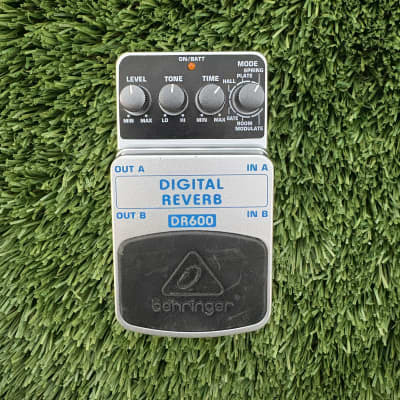

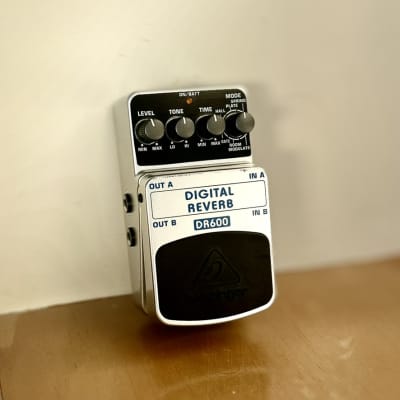

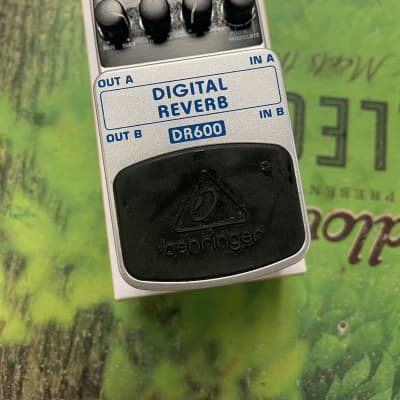

DR600 Digital Reverb

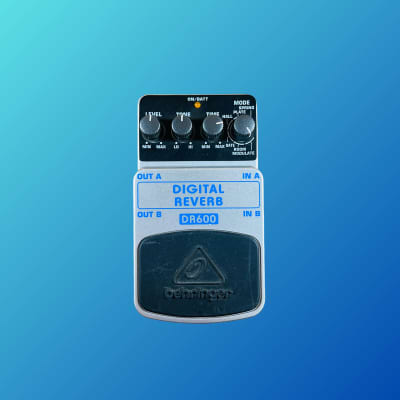

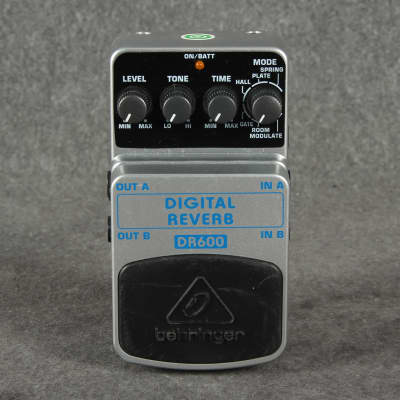

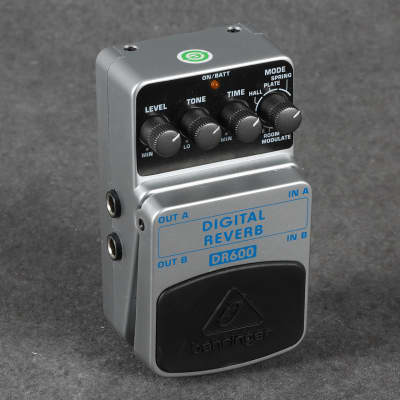

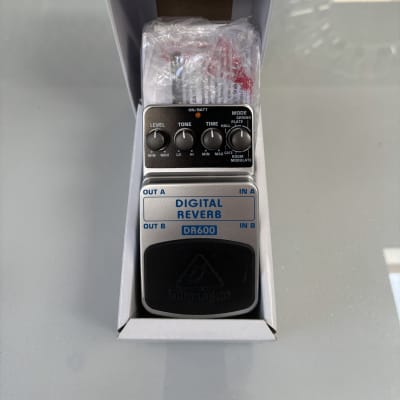

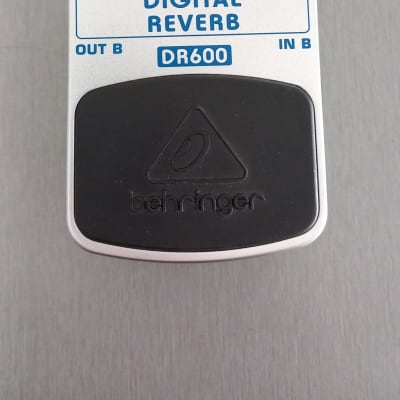

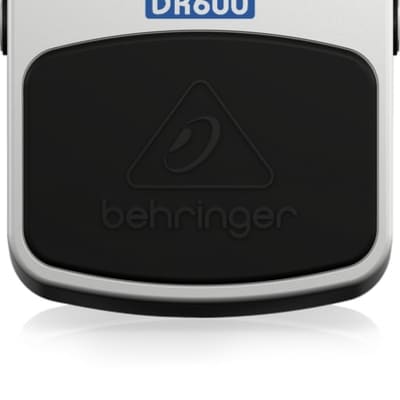

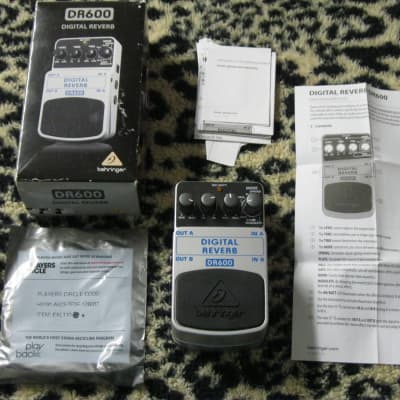

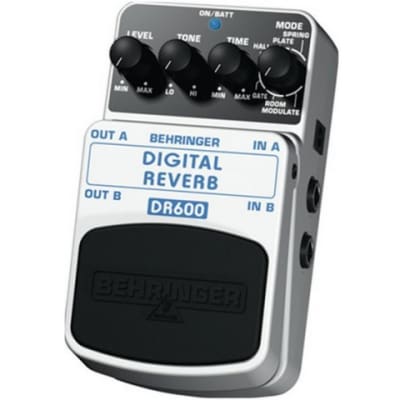

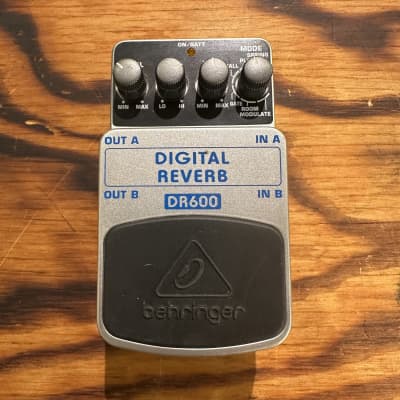

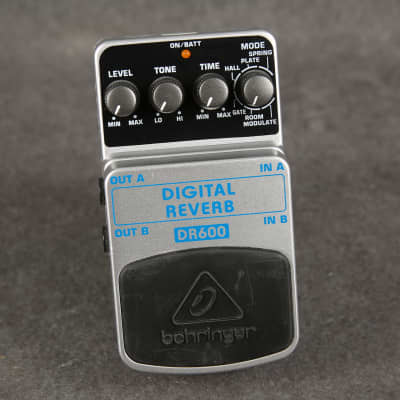

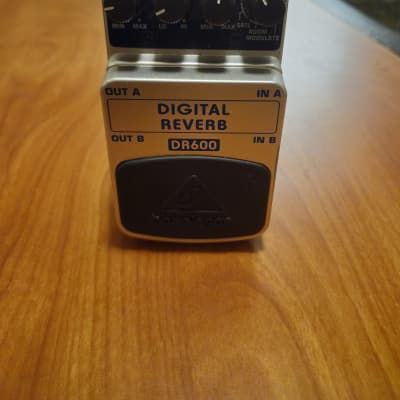

The Behringer DR600 Digital Reverb is a digital stereo reverb effects pedal designed to deliver 24-bit high-resolution stereo reverbs comparable to state- of-the-art studio processors. It offers six different reverb sounds: Spring, Plate, Hall, Gate, Room, and Modulate. The pedal features controls for LEVEL, TONE, TIME, and MODE, allowing users to shape their overall sound and determine the reverb time. The pedal also includes dual output jacks for stereo enhancement.

The technical specifications of the DR600 are as follows:
- Inputs: Two 1/4" TS connectors (IN A and IN B) for stereo input signal, or mono input by using IN A only
- Outputs: Two 1/4" TS connectors (OUT A and OUT B) for sending the signal to the amplifier, with the option for full stereo effect or mono output using OUT A only
- Power Supply: 9V DC power supply or 9V battery
- Power Consumption: 30mA
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D)
- Weight: Approximately 0.73 lbs / 0.33 kg

The DR600 does not have an on/off switch and begins running as soon as the jack is inserted into the IN connector. The pedal also features an ON/BATT LED that illuminates when the effect is activated and serves as a battery level indicator.
