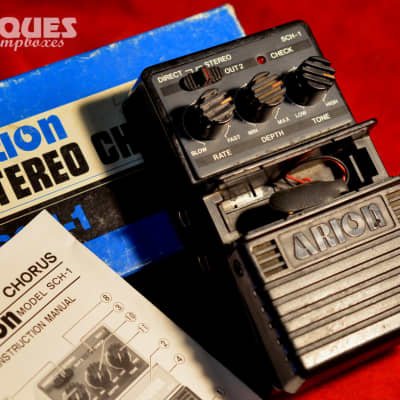

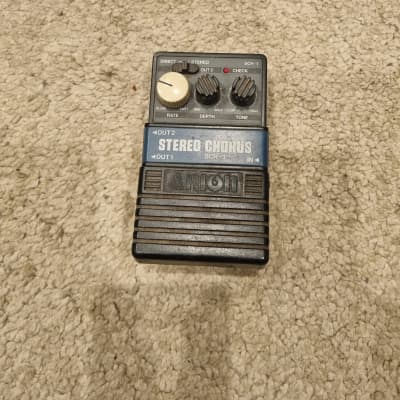

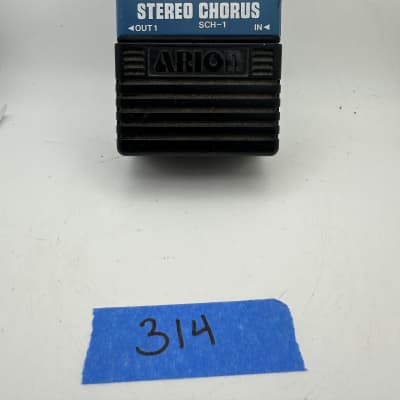

SCH-1

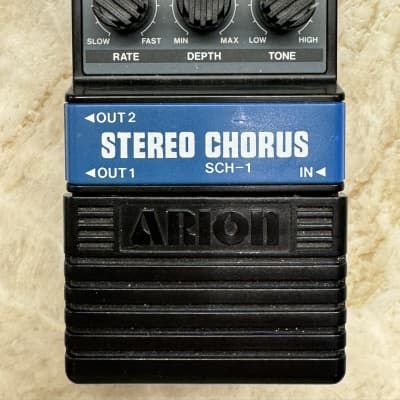

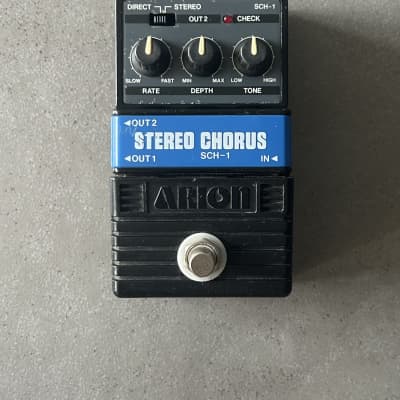

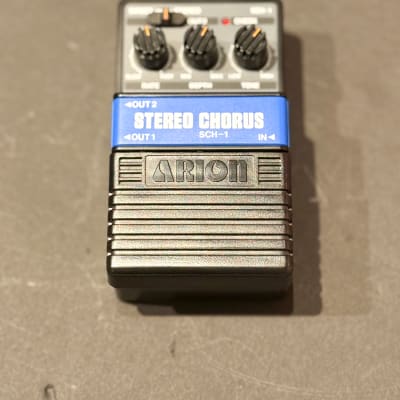

The Arion SCH-1 Stereo Chorus pedal features the following technical specifications:

- Input Impedance: 240K ohm
- Load Output Impedance: 10K ohm
- Maximum Input Level: -4.5dB (0dB = 1V Tone at High)
- Maximum Output Level: -3dB
- Residual Noise Level: -53.5dB (0dB = 1V Input Short)
- LFO Speed: 1.8s - 90ms
- Current Draw: 16mA (DC 9V)
- Weight: 330g
- Dimensions: 73(W) x 50(H) x 127(D) mm

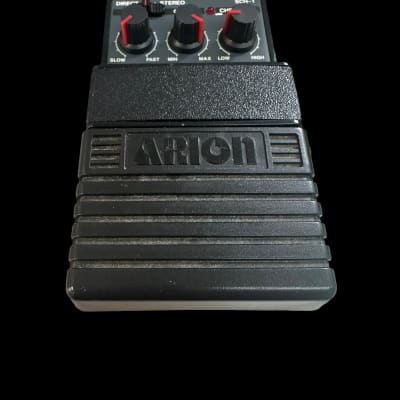

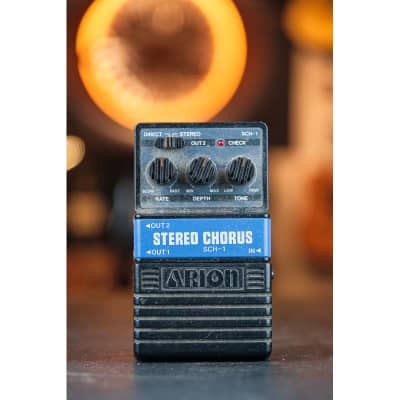

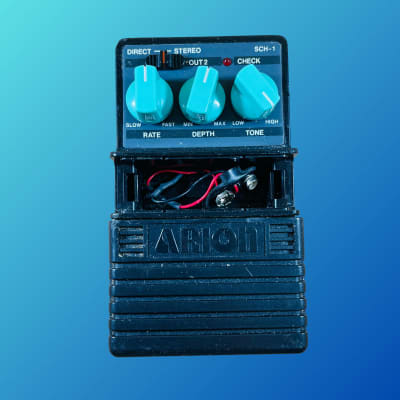

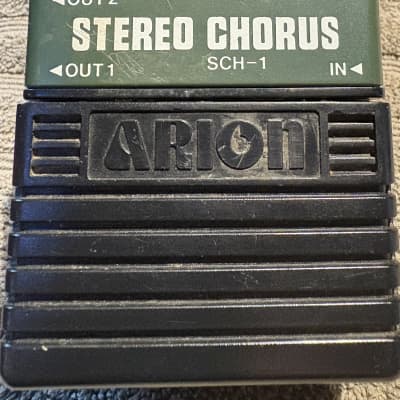

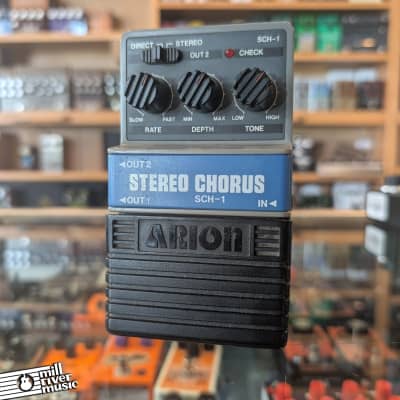

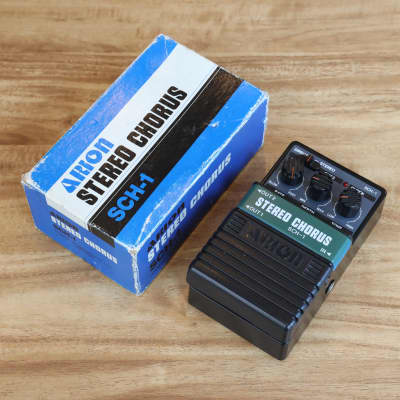

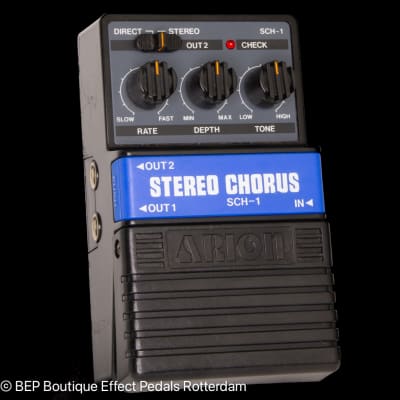

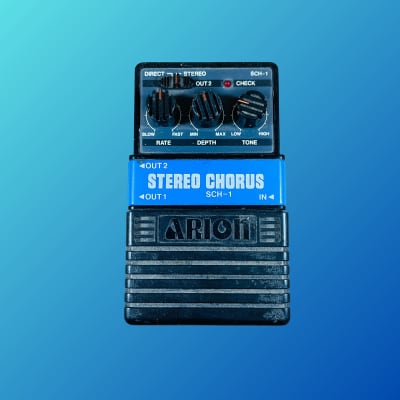

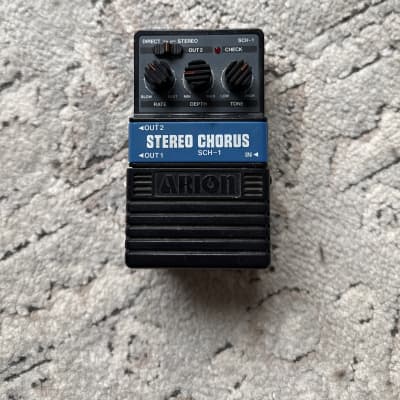

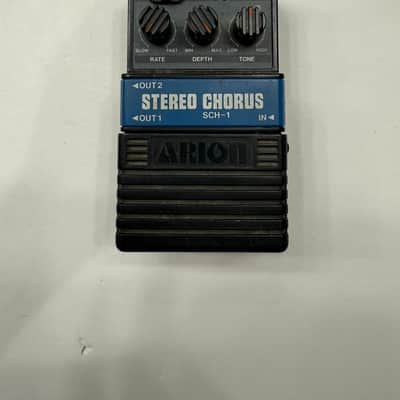

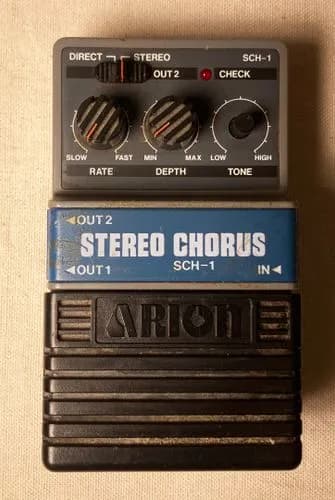

The pedal is equipped with three control knobs for Rate, Depth, and Tone, and uses BBD technology to achieve a superior, low-noise chorus effect. It also includes exclusive tone control that allows users to boost high frequencies when needed.

The components used in the Arion SCH-1 include various operational amplifiers, BBD stages, transistors, diodes, and a Zener diode.
