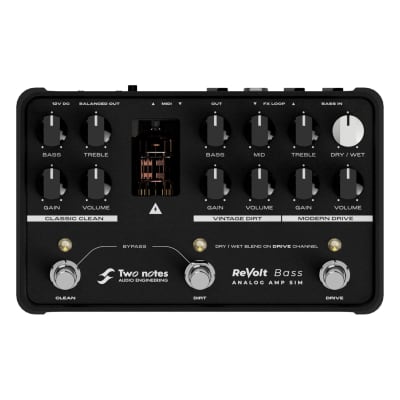

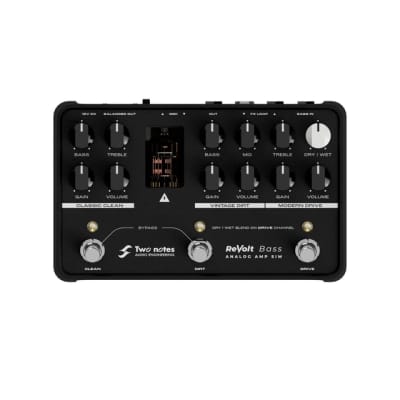

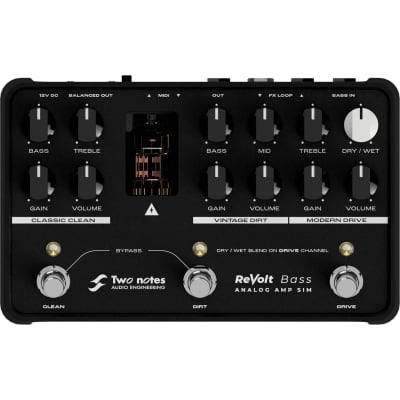

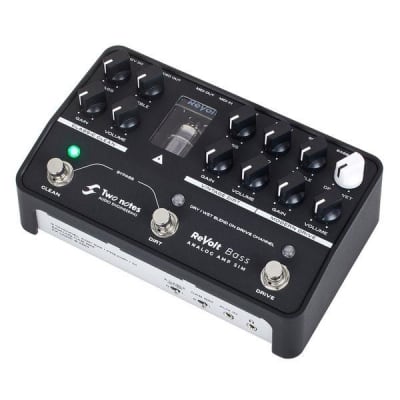

ReVolt Bass Preamp Pedal

The ReVolt Bass Preamp Pedal by Two Notes is a 3-channel bass amp simulator and DI with an all-analog signal path. It features a 12AX7 preamp tube running at high voltage to inject warmth and bite into the tone. The pedal includes an integrated Drive Channel Dry/Wet Blend for enhanced tone-shaping and an expertly engineered Analog Cab Sim for seamless DI in studio or on stage. It also offers 4-Cable mode, FX Loop, and MIDI In/Out for effortless integration into existing setups.

The three tonally distinct channels are inspired by an Ampeg SVT '76, a Marshall 1992 JMP Super Bass Mark II, and a custom proprietary high-gain bass amp designed for modern bass players. The channels provide iconic clean tones, vintage dirt, and modern drive with a switchable Dry/Wet Blend for added tonal versatility.

The technical specifications of the ReVolt Bass Preamp Pedal are as follows:
- Input/Output:
- Input: Jack 6.35 mm (1/4”) unbalanced (TS, Tip/Sleeve) / Impedance: 1 MOhms
- Send: Jack 6.35mm (1/4“) unbalanced (TS) / Max output level: +11dBu / Impedance: 300 Ohms
- Return: Jack 6.35mm (1/4“) unbalanced (TS) / Max input level: +11dBu / Impedance: 1 MOhms / Unbuffered, directly connected to Output when active
- Output: Jack 6.35 mm (1/4”) unbalanced (TS) / Max output level: +11 dBu / Impedance: 300 Ohms
- DI Output: XLR, balanced / Impedance: 600 Ohms balanced, 300 Ohms unbalanced / Max output level: +11dBu / Protected against +48V phantom power
- Phones: Jack 3.5 mm (1/8“) stereo (TRS, Tip/Ring/Sleeve) / Impedance: 39 Ohms
- Aux In: Jack 3.5 mm (1/8“) stereo (TRS, Tip/Ring/Sleeve) / Impedance: 10 kOhms
- Dimensions & weight:
- Width x Depth x Height: 19.2cm x 11.7cm x 7.2cm – 7.6″ x 4.6″ x 2.8″ (Including connectors and knobs)
- Weight: 750 g / 1.65 lbs
- Power:
- Mains power adaptor
- DC Jack 2.1mm, negative center
- Input voltage: 12V DC
- Power consumption: Approx. 6W
- Current draw: 600mA

The ReVolt Bass Preamp Pedal also includes the ReVolt: Series-B DynIR Cabinet Collection featuring 10 DynIR captures inspired by leading bass amplifier brands.
