Koko Boost

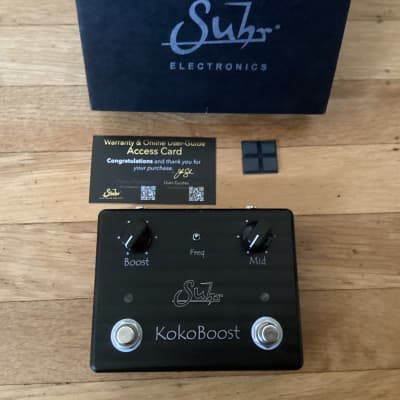

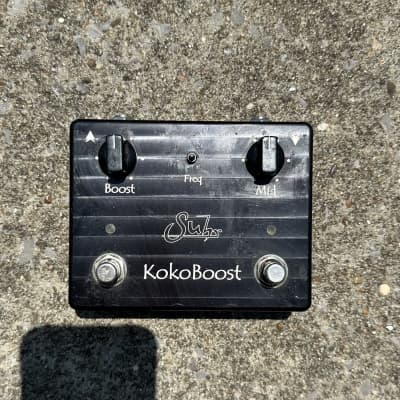

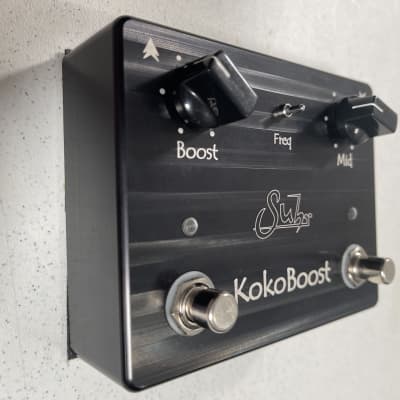

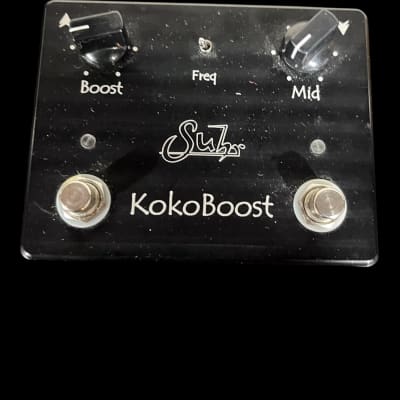

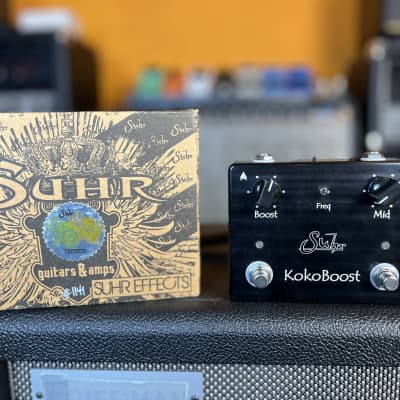

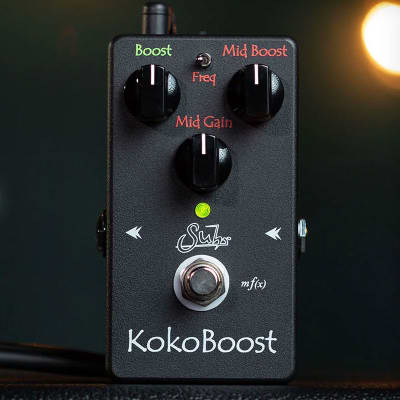

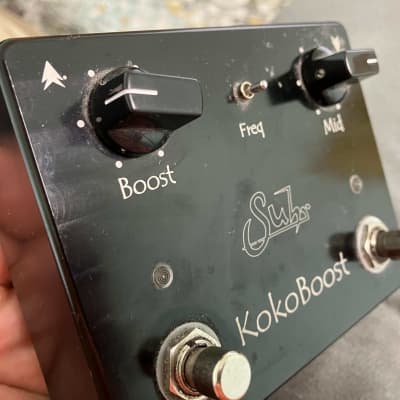

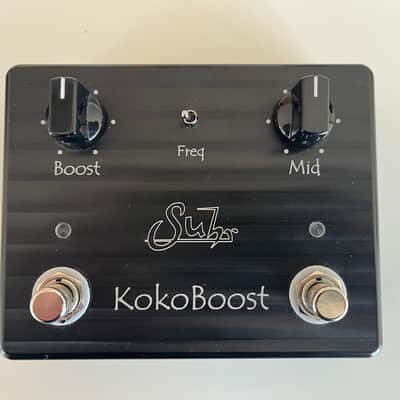

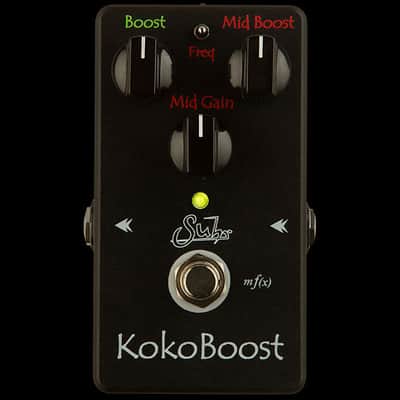

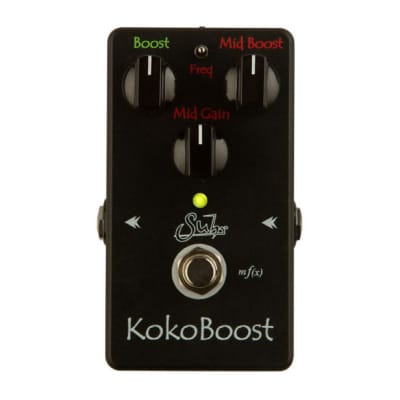

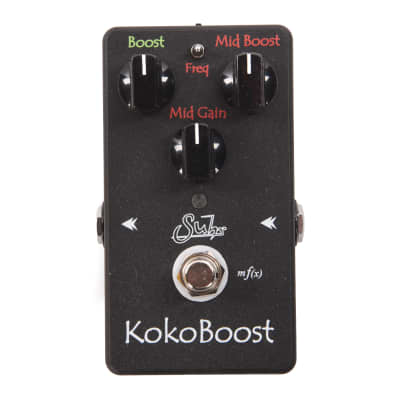

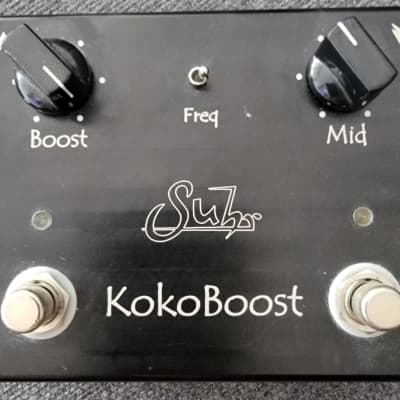

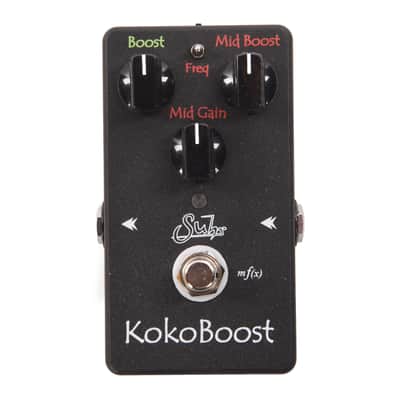

The Suhr Koko Boost is a unique boost pedal that offers both a clean transparent boost and a selectable midrange boost, expanding the range of tones from tube amplifiers and overdrive/distortion pedals. The pedal features an easy-to-tweak layout, including Boost and Mid knobs, as well as a Freq (Frequency) select switch.

Key Specifications:
- Input Impedance: 1M Ohm
- Output Impedance: 600 Ohm
- Power Connector: 9Vdc regulated, center negative, 2.1mm x 5.5mm
- Operating Voltage: 4.5V to 18V (nominal 9V)
- Maximum Voltage: 18Vdc
- Reverse Battery Protection: Yes
- Over Voltage Protection: Yes
- Current Consumption: < 15mA
- Estimated Battery Life: 50-75 hours of continuous use
- FX Link Connector: 1/8" Stereo
- FX Link Max Voltage: 3.3Vdc
- RoHS Compliant: Yes
- Dimensions: 2.5”(W) x 4.5”(D) x 1.25”(H)
- Weight: 0.75lb

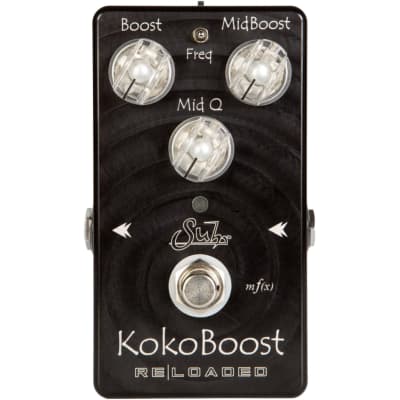

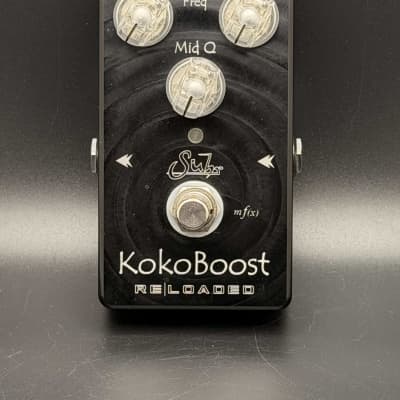

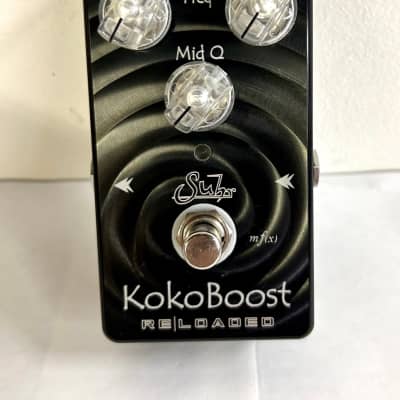

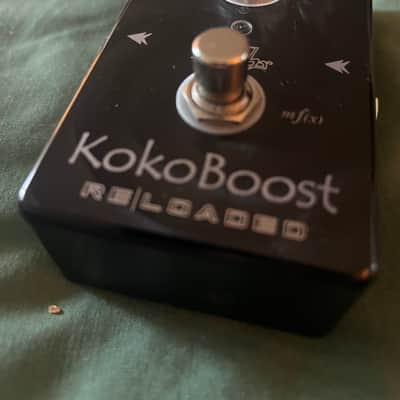

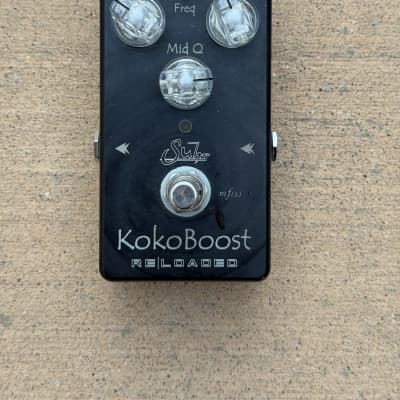

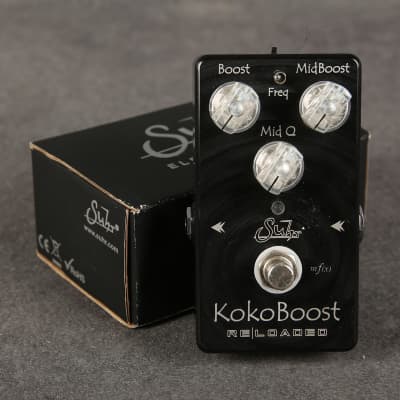

The pedal also incorporates advanced features such as Selectable Bypass Mode, FX Link for external control, and a Low Battery Monitor. Additionally, the Koko Boost Reloaded version offers Multi-Function Technology (mf(x)) for seamless switching between clean and mid boost modes.

The Suhr Koko Boost is designed to provide guitarists with enhanced control over their tone, making it a versatile tool for various musical styles and performance settings.
