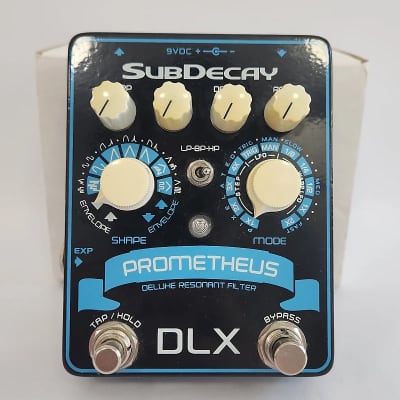

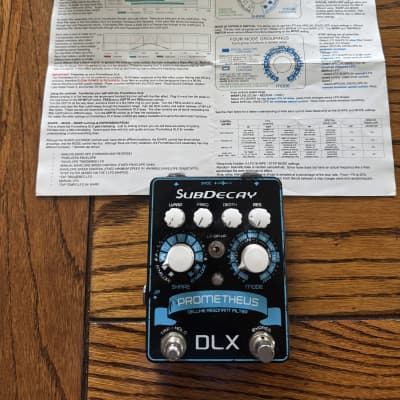

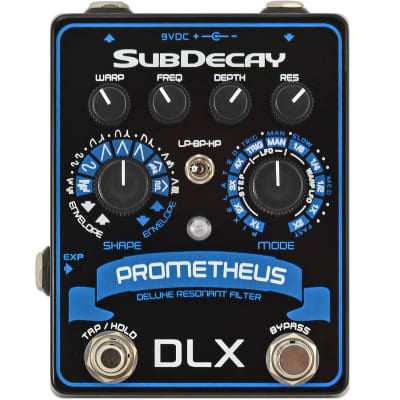

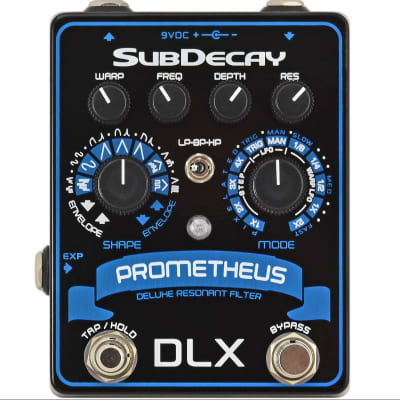

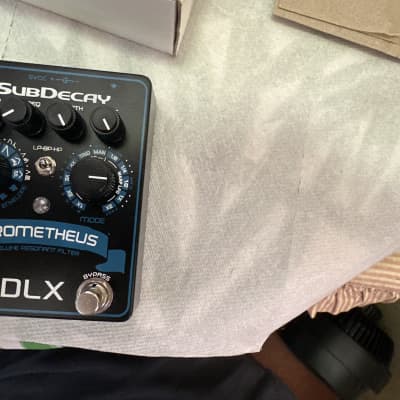

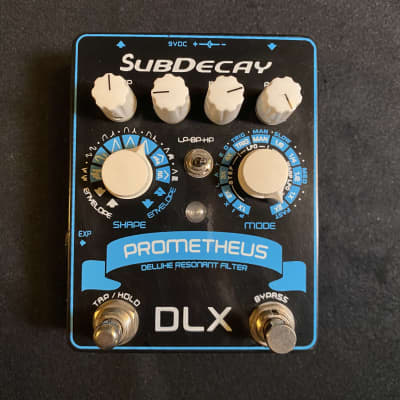

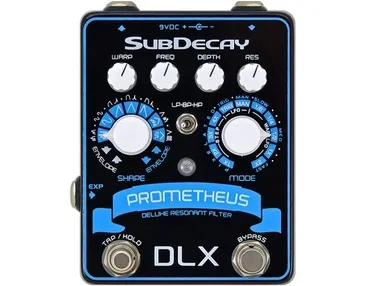

Prometheus DLX

The Prometheus DLX by Subdecay is a versatile analog filter with digital control, designed to offer a wide range of sonic possibilities. It features a filter sweep that extends above and below normal guitar frequencies, making it suitable for use with various instruments such as bass and synthesizers. The pedal allows users to select between lowpass, bandpass, and highpass filters, with virtually unlimited ways to manipulate them.

Key Features:
- Analog envelope with forward and reverse capabilities
- Step filter with tap tempo based on 7 LFO shapes
- Trigger LFO for tapping to trigger one LFO cycle
- Manual LFO for manual control of LFO speed
- Warp LFO for tap tempo LFO speed with wave shape warp
- Pixilated Envelope for sample/hold envelope control
- Envelope Trigger for triggering LFO with envelope
- Envelope->LFO manual for envelope driving LFO speed with fixed sensitivity
- Envelope->LFO for envelope driving LFO speed with variable sensitivity

Additional Features:
- Expression pedal input for non-envelope functions
- Improved step filter with added tap tempo and locked underlying LFO rate
- Internal switch to add a dry signal blend to the bandpass filter
- Operates at 18 volts for increased headroom
- Die-cast metal enclosures for durability
- 3PDT switches for true bypass switching
- Red/Green LED indicator
- Three-year limited warranty

Technical Specifications:
- Powered by an external regulated 9VDC to 18VDC adapter with a negative center 2.1mm barrel style plug
- Power supply not included
- Current draw is less than 100mA
- Dimensions: Length 4.7″ x Width 3.7″ x Height 1.2″
- Input impedance: 1M
- Output impedance: Less than 1K
- Handmade in Oregon

The Prometheus DLX is a versatile and durable pedal that offers a wide range of filter effects and is suitable for both guitarists and bass players.
