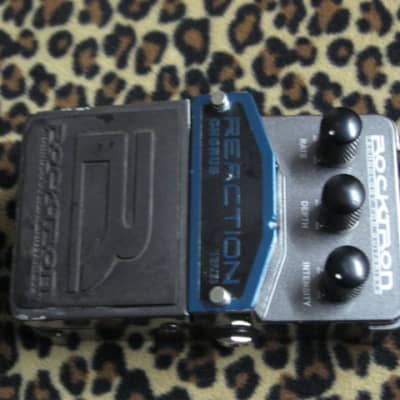

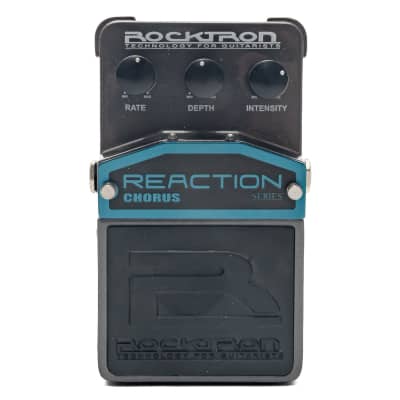

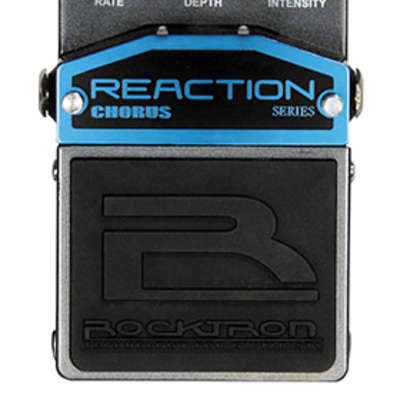

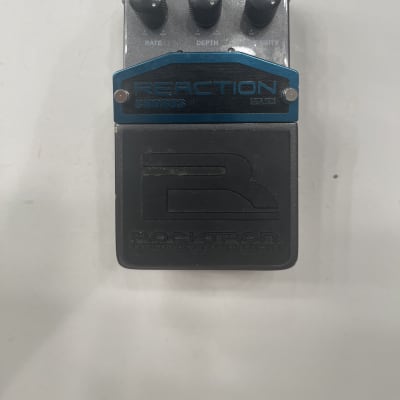

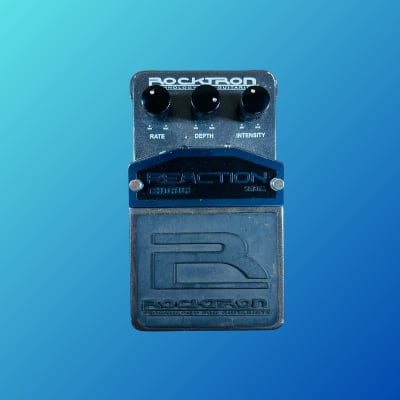

Reaction Chorus by Rocktron

The Reaction Chorus by Rocktron is a pure analog chorus pedal that features classic BBD (Bucket Brigade Device) technology, sought after by discerning players for its ability to add color without altering the original tone. The pedal is designed with transparency and a creamy fluidness, while preserving the integrity of the user's tone. It is built into a rugged metal slim form factor chassis, minimizing space on the pedalboard.

Key features and specifications include:

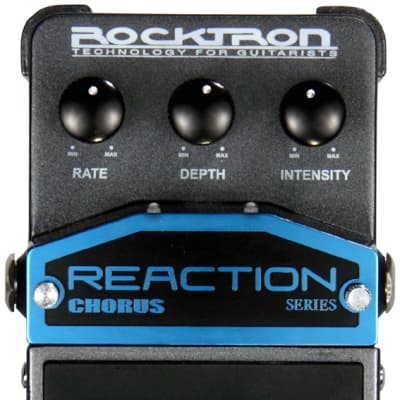

- Controls: The pedal features controls for Rate, Depth, and Intensity. The Rate control adjusts the speed of the LFO waveform used to modulate the delay, while the Depth control adjusts the delay line's maximum travel time and intensity. The Intensity control regulates the amount of chorus effect added to the signal.
- True Bypass: The Reaction Chorus is a true bypass pedal, ensuring that when it is turned off, it is out of the signal path.
- Power Requirements: The pedal can be powered by a 9V Alkaline battery or Rocktron's DC OnTap Universal Power Supply (sold separately). It has a negative tip.
- Dimensions: 125mm x 78mm x 61mm (5” x 3.25” x 2.5”)
- Weight: 0.7kg (1.5 lbs)
- Input Impedance: 470 kOhms
- Output Impedance: 220 Ohms
- Current Consumption: 15mA
- Maximum Input: 3dBu
- Maximum Output: 1.3dBu

The Reaction Chorus is recommended to be placed after distortion in the signal chain for optimal results. It can also be experimented with in different parts of the signal chain when using multiple pedals, such as delays and other modulation effects. Additionally, if the amp has an effects loop, the chorus can be placed in the effects loop for a different sound.
