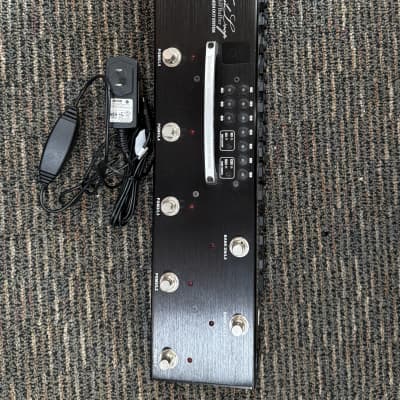

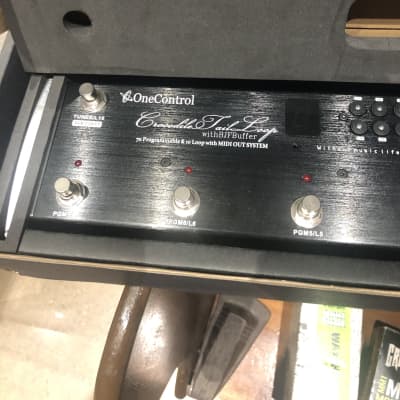

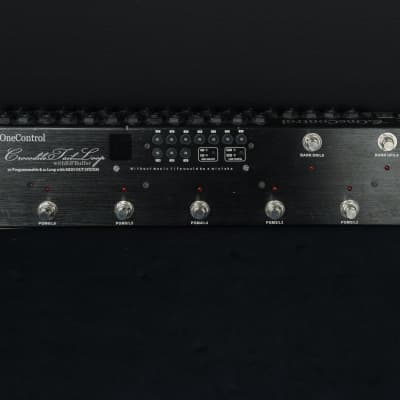

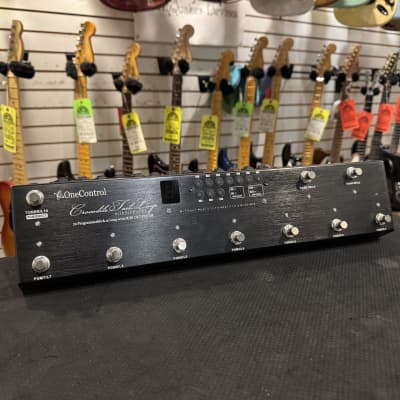

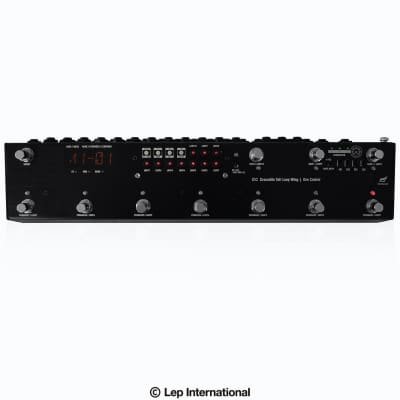

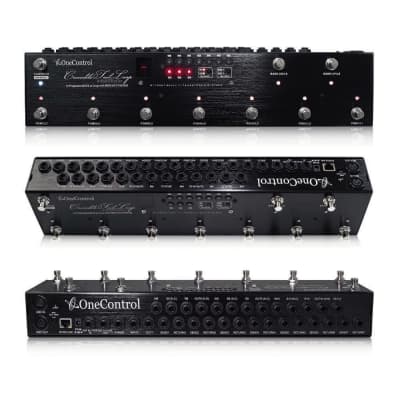

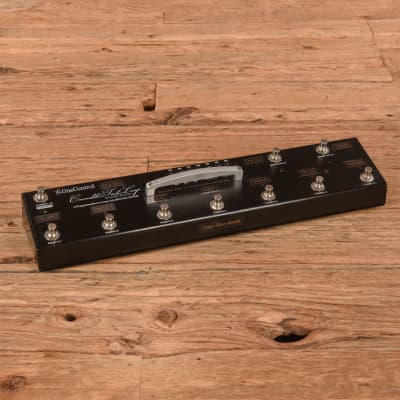

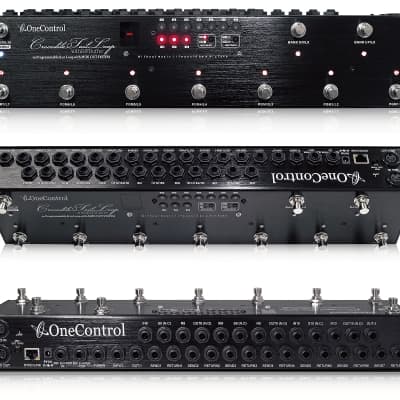

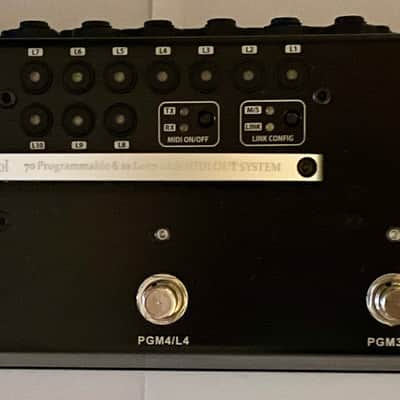

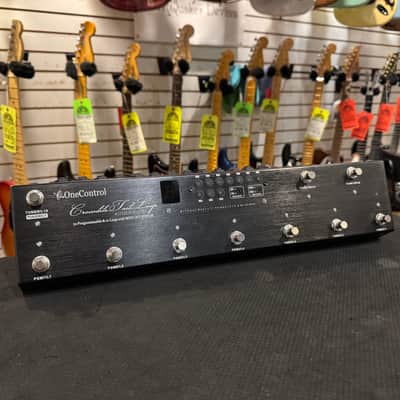

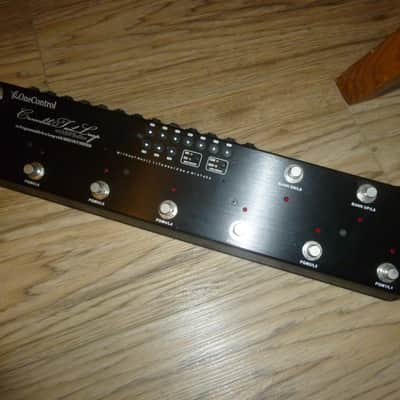

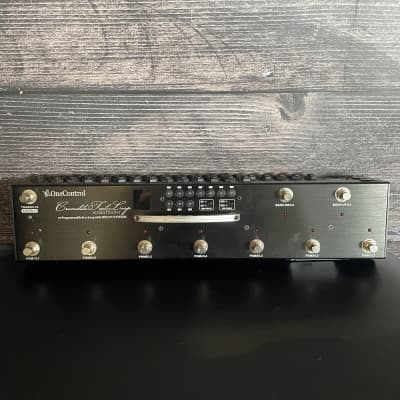

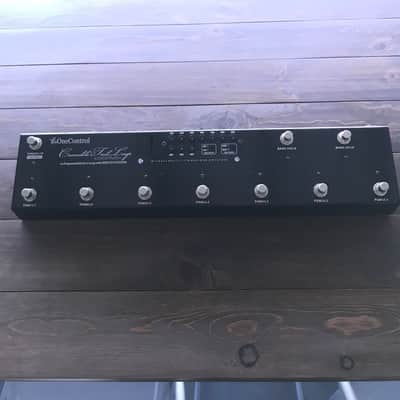

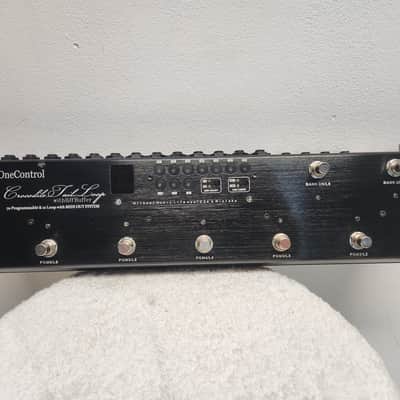

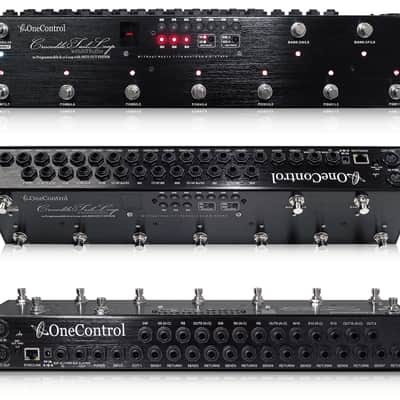

Crocodile Tail Loop

The Crocodile Tail Loop by One Control is a versatile and advanced switcher designed to meet the needs of professional musicians. It offers a wide range of features and functionalities, making it a valuable addition to any pedalboard setup.

Key Technical Specifications:
- Dimensions: 18.2(L) x 4.35 (W) x 2.5 (H) inches
- Weight: 1800g
- Power Supply: DC9V
- Current Drain: 450mA
- Input Impedance: 500K Ohm
- Output Impedance: 10K Ohm
- Total Loops: 10 (7 series loops, 3 separate loops)
- MIDI: 1 MIDI In and 1 MIDI Out/Thru

Features and Functionality:
- The Crocodile Tail Loop can create up to 70 presets with an easy push- button auto-saving system.
- It offers 7 programs per bank, with the ability to choose up to 10 programs for each program.
- Equipped with MIDI capabilities, it can send program changes or be used as a MIDI through to work in combination with other MIDI devices.
- It features the BJF Buffer circuit designed by Björn Juhl to maintain signal integrity, and it can also be bypassed using the non-buffered input.
- The switcher can be used in direct mode, allowing for easy on/off control of loops for band practices or pedal experimentation.
- The Crocodile Tail Loop supports amp channel switching, with three separate loops that can be used for various purposes, including connecting effects to an amp's effects loop.
- It offers advanced MIDI functions, including the ability to send PC# (Patch Change) without the need for additional accessories, and the option to change the MIDI output to a MIDI thru.
- The switcher features link and sync functions, allowing for the connection of two Crocodile Tail Loops together with a proprietary cable for expanded pedal control.
- It can be used in stereo setups, enabling the use of one stereo effect in combination with 8 mono pedals, with detailed instructions provided for setting up stereo configurations.

The Crocodile Tail Loop is a comprehensive and innovative pedal switcher that offers exceptional flexibility and control over pedalboard setups, making it an ideal choice for professional musicians and enthusiasts seeking a high- performance switcher for their rig.
