Loop Core

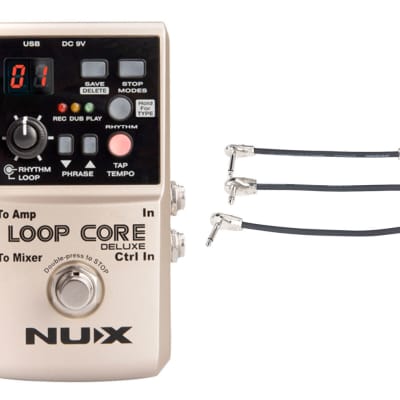

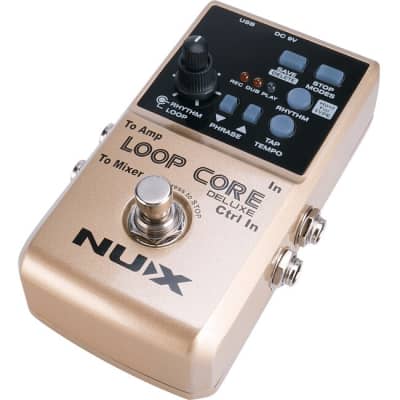

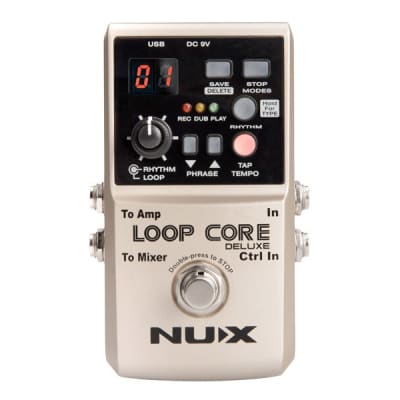

The Loop Core Deluxe by NUX is a versatile looper pedal designed for modern musicians. It offers the following technical specifications and features:

- Recording Time: Up to 8 hours of recording time with unlimited layers in 24-bit high-resolution audio quality into 99 saved memories.
- Drum Rhythms: Includes 40 different drum rhythms covering various genres such as rock, pop, blues, and jazz.
- Stop Modes: Offers three different stop modes - Normal Mode (double tap for instant stop), Finish Mode (plays until the end of the last measure), and Fade Out Mode (10 seconds fade-out).
- Importing and Backing Up: Allows users to connect the Loop Core Deluxe to a PC/Mac with a Mini-B USB connector to import available loop phrases or back up their own. It is compatible with 24-bit/44.1kHz WAV files.
- Frequency Compensation & Cabinet Simulation: Designed with frequency compensation for drums and a cabinet simulator, utilized through the stereo output jacks.
- Stereo Output Connection: Detects the type of devices connected and outputs the original guitar tone and loop phase to the guitar amplifier while the drum machine sound outputs to the mixer.
- Bypass Modes: Features switchable buffer bypass and true bypass, providing flexibility for different setups.
- Automatic Tempo Detection: Automatically processes the tempo to match the drum pattern, allowing users to lay down a loop without a metronome or drum patterns.

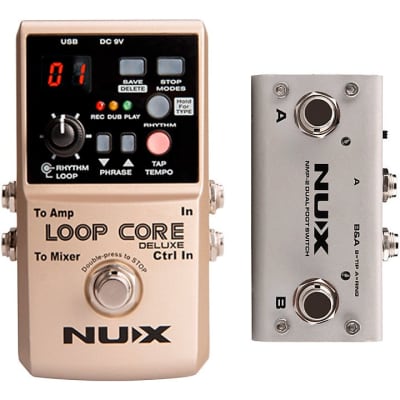

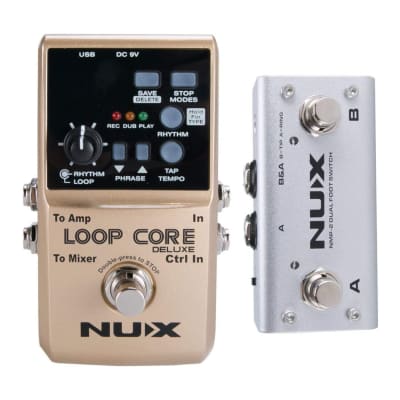

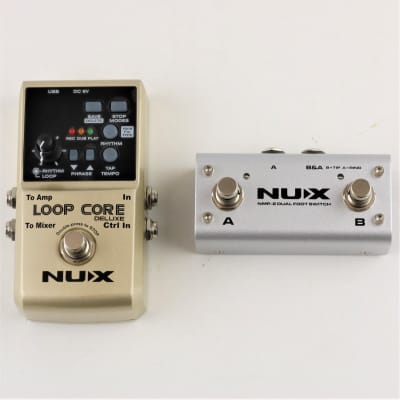

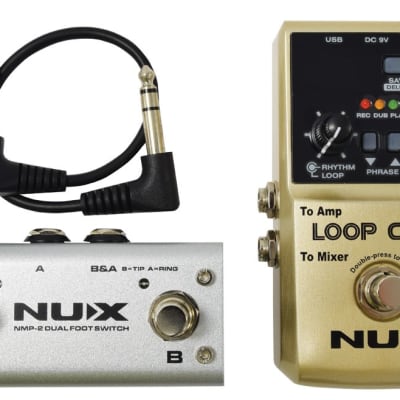

- Comparison with Original Loop Core: Offers better recording sound quality (24-bit vs. 16-bit), longer recording time (8 hours vs. 6 hours), upgraded drum machine with more realistic drum sounds, and includes the NMP-2 Dual Footswitch control pedal.
- Specifications:
- Sampling Rate: 44.1KHz
- A/D Converter: 24-bit
- Signal Processing: 24-bit
- Frequency Response: 20Hz - 20KHz
- Noise Level: -98dBu
- Dynamic Range: 101dB
- Power Consumption: 65mA - 70mA
- Input: Mono
- Outputs: Amplifier Out, Mixer Out (Cabinet Simulated)
- Display: LED & LED Segment Displays
- Power: 9V DC Negative Tip / 9V Battery
- Dimensions: 122(L) x 72(W) x 47(H) mm
- Weight: 270g

The Loop Core Deluxe also offers support for firmware updates and includes the Nux Audio Converter software for converting audio files to make them compatible with the pedal.
