Duo Time

The Duo Time by NUX is a stereo delay pedal with a compact size and ultra- simple controls, offering a range of delay types and features. Here are the technical specifications and details for the Duo Time by NUX:

Features:
- Offers analog delay, tape echo, digital delay, modulation delay, and verb delay
- Analog Delay (40ms~402ms) based on the bucket-brigade device (BBD), discrete-time analog delay
- Tape Echo (55ms~552ms) based on RE-201 Tape Echo algorithm with NUX Core Image Technology
- Digi Delay (80ms~1000ms) based on modern digital delay algorithm with magic compression and filter
- MOD Delay (20ms ~ 1499ms) based on the Ibanez DML algorithm; a modulation delay
- VERB Delay (80ms ~1000ms) adds 3-dimensional sound with shimmer into the Plate reverb algorithm

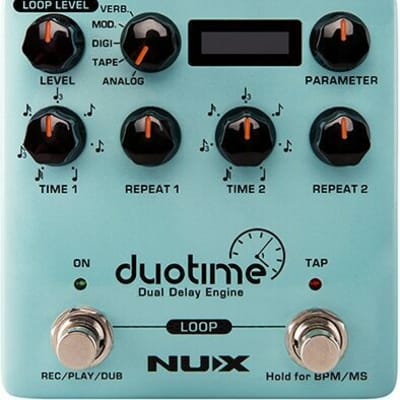

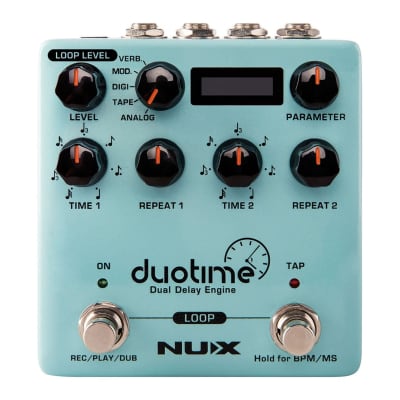

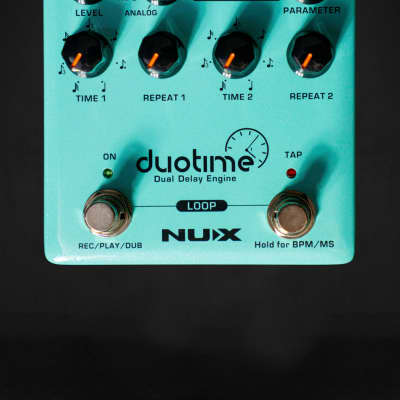

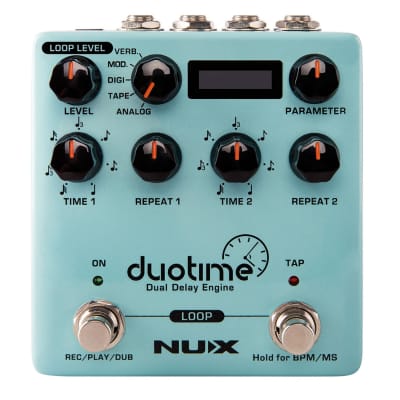

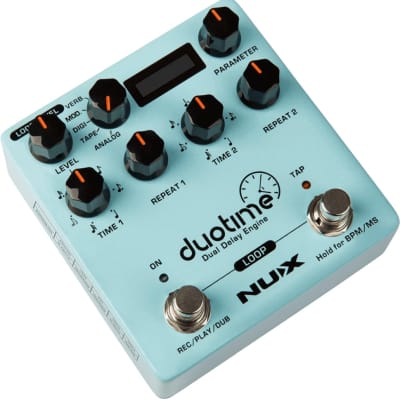

- Control Panel with LEVEL Knob, Delay Type Selector, PARAMETER, TIME 1, REPEAT 1, TIME 2, REPEAT 2, TAP Footswitch, and OLED Display
- LOOP Mode for phrase looping with REC/PLAY/DUB and UNDO/REDO functions

Specifications:
- Sampling rate: 48kHz
- A/D Converter: 32Bit
- Signal Processing: 32Bit
- Frequency Response: 20Hz~20kHz - ±1dB
- Maximum input level: 10dBu/2.8Vrms
- Input Impedance: 5MΩ
- System Latency: 1ms
- Maximum output level: 10dBu/2.8Vrms
- Output Impedance: 1kΩ
- Dynamic Range: 102dBu
- THD+N Ratio: 0.02%/-70dB(A-Weighting)@input 1Vrms,1kHz
- Power: 9VDC(Negative tip,Optional ACD-006A adapter)
- Current Draw: less than 150mA
- Dimensions: 105(L)X115(W)X58(H)mm
- Weight: 440g

I/O:
- IN 1 (MONO) and IN 2 for independent control of delay 1 and delay 2
- OUT 1 (MONO) and OUT 2 for independent output of delay 1 and delay 2
- USB Port for firmware updates
- DC Jack: 9V Negative Tip power with 300mA

Connect Applications:
- Up to 1800ms stereo delay time by Tap Tempo
- True stereo delay engine with independent controls in a compact size
- 40 seconds stereo phrase loop with OLED status display
- Optional delay time display (MS / BPM)

These technical specifications and features make the Duo Time by NUX a versatile and powerful stereo delay pedal suitable for a wide range of musical applications.
