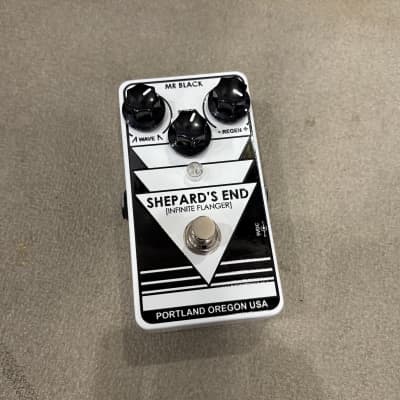

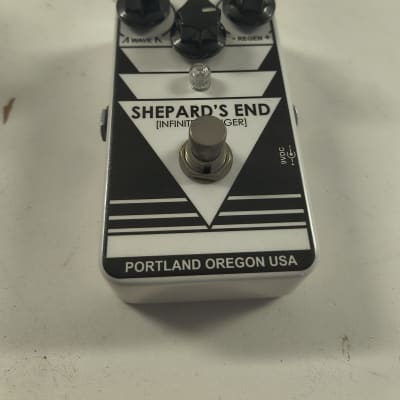

Shepard's End

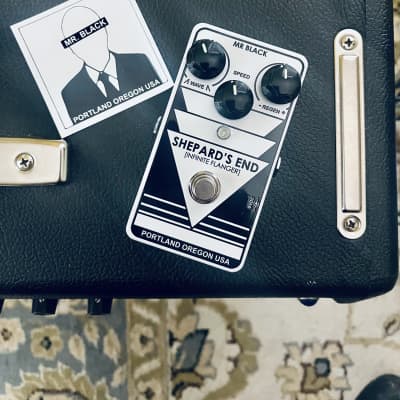

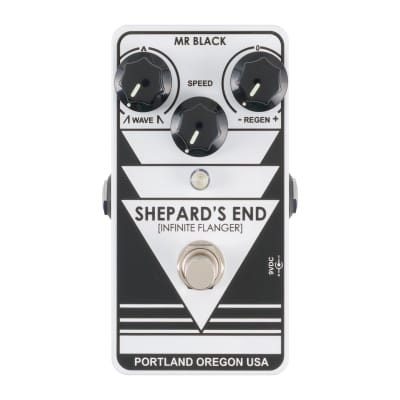

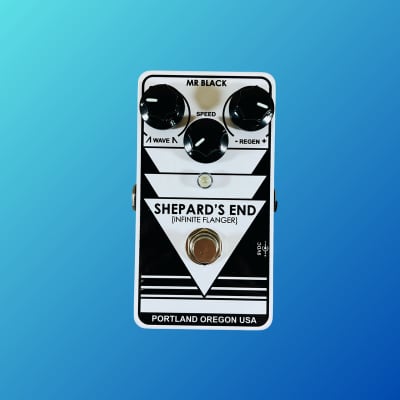

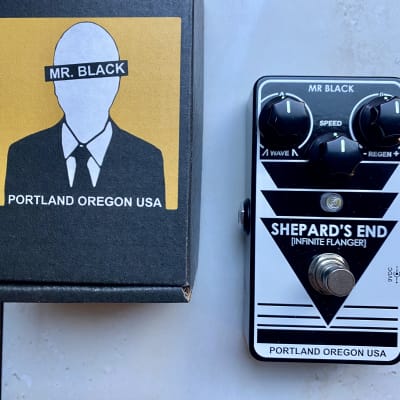

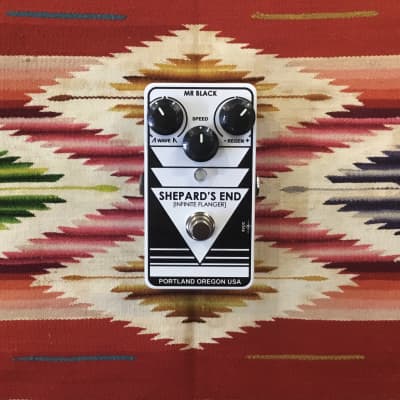

The Shepard's End by Mr. Black is a Barber-Pole Through-Zero Flanger effect pedal, offering unique features and technical specifications. The pedal is designed for use in musical applications and offers the following technical details:

- Input Impedance: ~500KΩ
- Output Impedance: ~2KΩ
- Power: 9VDC 2.1mm negative center-pin power (optional internal 9V battery)
- Current Draw: <60mA
- Dimensions: 2.65"W x 4.4"L x 1.9"H (67.5MM x 112MM x 48MM)
- Weight: 12 oz (340g)

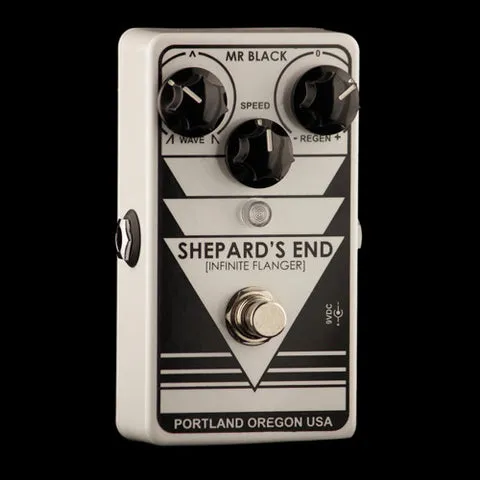

The Shepard's End provides the world's first through-zero barber-pole flanger, with additive and subtractive regeneration available. It features three simple controls: Wave (barber-pole direction), Speed (oscillator rate), and Regen (flanger regeneration/enhance). Additionally, it offers an indicator/status LED and true-bypass functionality.

This pedal is known for its unique flanging capabilities, offering a range from draggingly slow to space-ray-gun fast, and is suitable for creating a variety of flanger effects, including positive and negative regeneration control.
