MF Trem

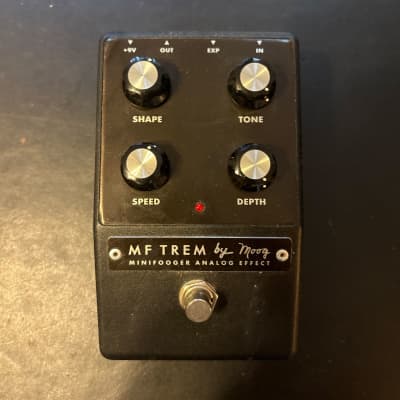

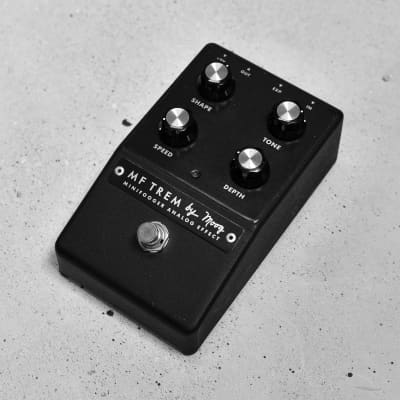

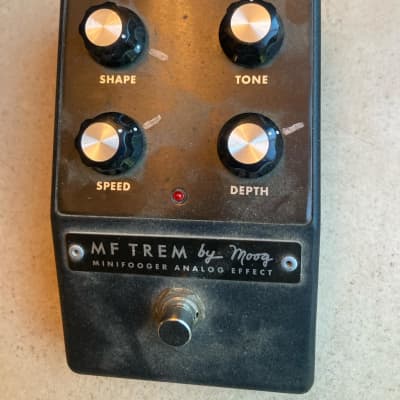

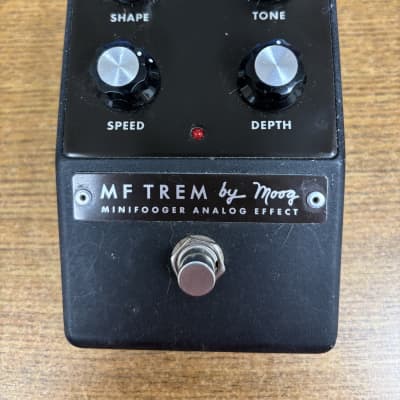

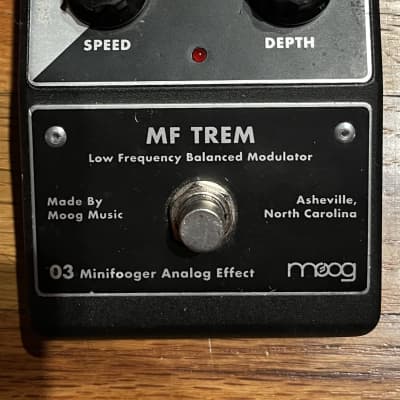

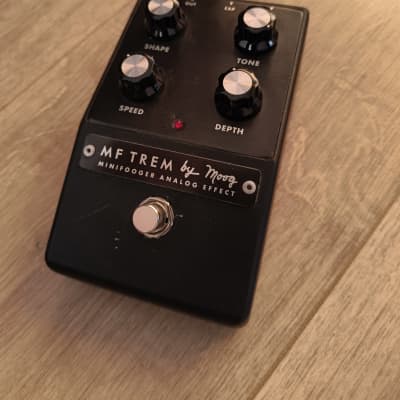

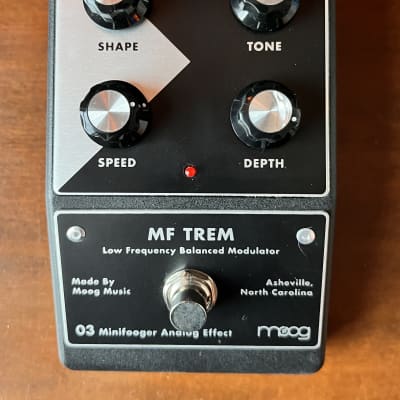

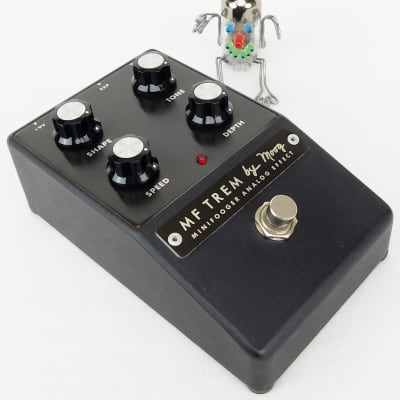

The Moog Minifooger MF Trem is a versatile analog tremolo pedal designed for guitar and bass. Here are the technical specifications and details for the MF Trem:

- Signal Path: 100% Analog
- Bypass Type: True Bypass
- Power: +9VDC
- Weight: 18oz (0.5kg)
- Enclosure: Cast aluminum
- Dimensions: D=5.75” (14.4 cm) W=3.25” (8.3 cm) H=2.25” (5.8 cm)
- LFO Speed: 0.6Hz to 12Hz, with Shape in Mid-position
- Tone Control: 165Hz - 20KHz Lowpass

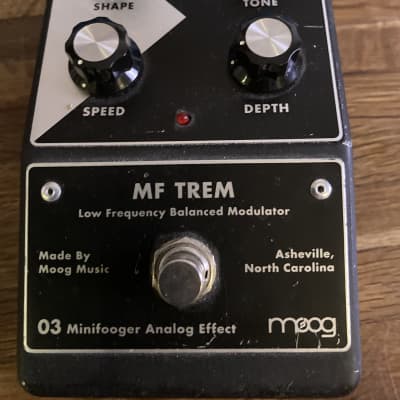

The MF Trem is based on a balanced modulator and Sub Audio VCO circuit, allowing it to generate harmonically-based swells, gallops, percussive rhythms, and rotary effects that change with playing style and harmonic input. It also offers a wide range of classic tremolo effects that dynamically react to the specific playing style. Additionally, it can shift towards the sonic origins of phasing and chorus when pushed.

The pedal features a dedicated expression input that expands its capabilities, allowing for hands-free swells and rotary effects when an expression pedal is plugged in.
